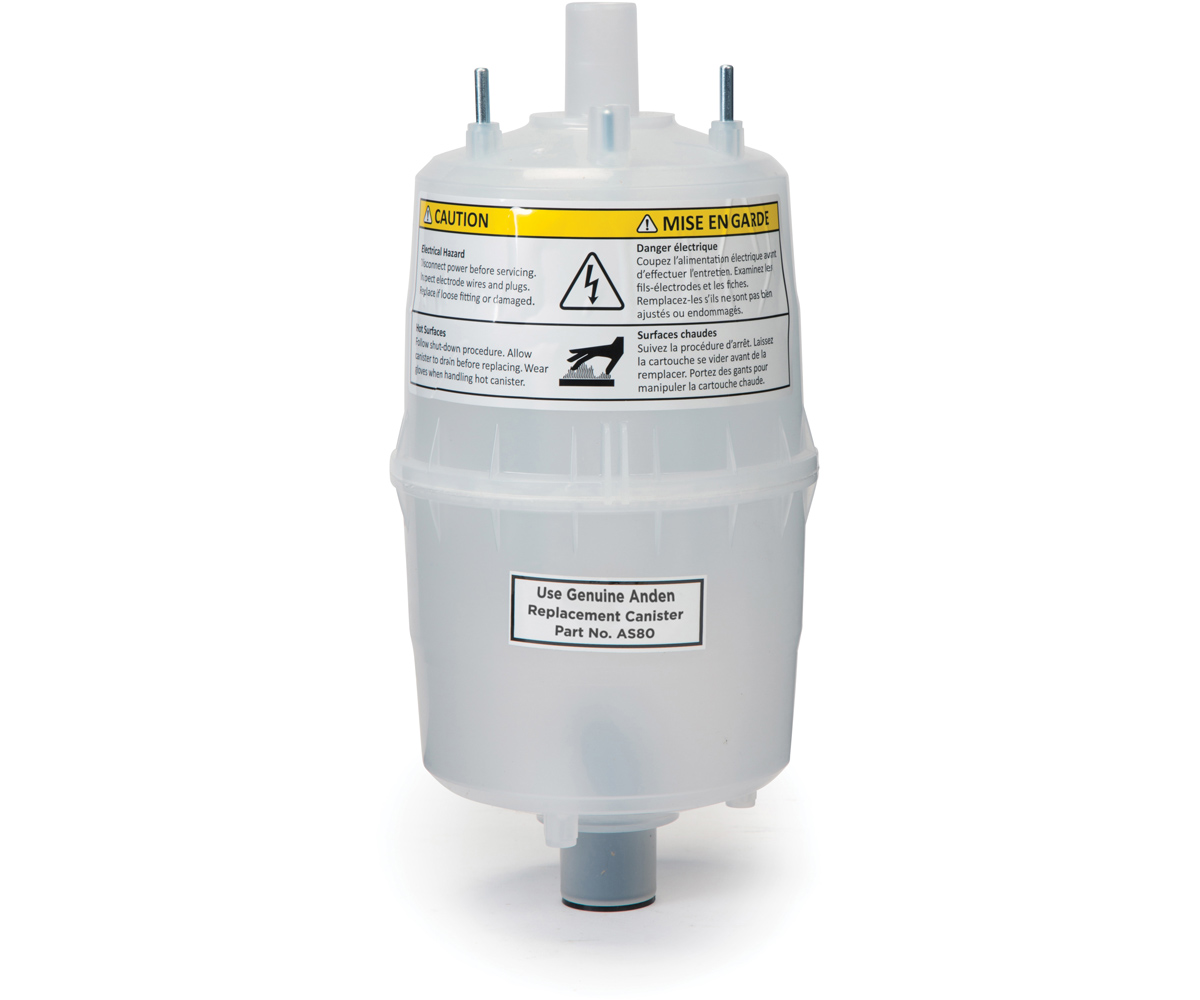

Anden Replacement Steam Canister with O-Ring

The Anden AS80 Replacement Steam Canister with O-Ring is the core steam-generating component of the Anden AS35FP Steam humidifier. Inside the canister, electrical current passes between two electrodes to heat water until it boils, producing steam that the humidifier’s fan pack then distributes throughout your grow space. Designed and manufactured in Madison, Wisconsin, the AS80 is the genuine OEM replacement part for the AS35FP — the right canister keeps your humidifier running at rated output and protects your crop during critical humidity-sensitive growth stages.

Anden AS80 Replacement Steam Canister Specifications

Specifications are drawn from the canonical product data and manufacturer documentation for the AS80 steam canister.

Specification	Value
Part Number / SKU	AS80
Compatible Humidifier Model	Anden AS35FP Steam Humidifier
Component Type	Replacement steam canister with O-ring seal
Steam Generation Method	Electrode boiling (electrical current between two internal electrodes)
Weight	1.56 lb (0.71 kg)
Country of Manufacture	Madison, WI, USA
Water Type Compatibility	Standard tap or municipal water — do NOT use RO water
Recommended Replacement Interval	At the start of each heating/humidification season

Why Choose the Anden AS80 Replacement Steam Canister

If your AS35FP humidifier has declined in output, produces inconsistent steam, or triggers a service indicator, the AS80 canister is the most common part to replace. Here is why growers choose the genuine Anden part over third-party alternatives:

• Genuine OEM fit: The AS80 is engineered specifically for the AS35FP Steam humidifier — it seats correctly, forms a proper seal with the included O-ring, and draws current as the unit expects. Off-brand canisters frequently leak at the seal or draw incorrect current, shortening humidifier life.
• Electrode-boiling design keeps minerals in suspension: The AS80 relies on the natural mineral content of tap or municipal water to conduct current. Dissolved minerals allow the electrodes to complete the circuit and boil water efficiently. This is why RO (reverse osmosis) water, which lacks these minerals, should not be used — it does not conduct current adequately and will damage the canister or prevent steam production entirely.
• Made in the USA: Anden designs and manufactures the AS80 in Madison, Wisconsin. The domestic manufacturing chain gives Anden direct quality control over tolerances and electrode composition.
• Includes the O-ring: The canister ships with a fresh O-ring, which should always be replaced along with the canister. Reusing a worn O-ring is a common source of water leaks inside the humidifier cabinet.
• Clear seasonal replacement schedule: Anden recommends replacing the canister at the start of each heating season. This predictable maintenance interval lets you plan inventory so downtime does not coincide with your most humidity-sensitive crop stage.

Best Uses for the Anden AS80 Steam Canister

The AS80 is a maintenance part, not a standalone product. It is the right purchase when one or more of the following applies to your grow operation:

• Scheduled seasonal maintenance: Replacing the AS80 at the start of each humidification season prevents mid-season failures. Many commercial cultivation facilities stock a spare AS80 and swap it in before the cooling season begins, the same way they would replace an HVAC filter. If you are running the AS35FP through a fall and winter growing cycle, a fresh canister at the start of that cycle reduces the risk of an unplanned humidity drop.
• Reduced steam output or service alert: When the AS35FP shows reduced humidification capacity or triggers a service indicator, the canister is the first component to inspect. Mineral scale deposits on the electrodes increase resistance over time, reducing steam output and eventually preventing operation. Replacing the AS80 restores full rated output.
• Post-leak or contamination recovery: If water or cleaning solution entered the humidifier cabinet and contacted the canister, the electrodes or O-ring may be compromised. In these situations, replacing both the canister and the O-ring simultaneously is more reliable than inspecting each component individually.
• Facility expansion or fleet refresh: Cultivation facilities running multiple AS35FP units benefit from keeping the AS80 in rotation stock. Having a canister on hand means a technician can resolve a service alert during a scheduled walkthrough rather than placing an emergency order during crop peak.

Compatibility

The Anden AS80 Replacement Steam Canister is designed exclusively for the Anden AS35FP Steam Humidifier. It is not a universal humidifier canister and should not be substituted into other humidifier models, even other Anden models, unless Anden’s documentation explicitly lists the AS80 as a compatible part for that unit.

When ordering, verify your humidifier’s model number on the rating plate before purchasing. Anden’s humidifier line includes multiple steam and evaporative models; the part number, electrode geometry, and O-ring dimensions differ between them.

Water type note: The AS35FP and its AS80 canister require water with sufficient dissolved mineral content to conduct current between the electrodes. Municipal tap water and well water (within normal hardness ranges) are appropriate. Reverse osmosis water, deionized water, and distilled water must not be used — they lack the mineral content needed for proper electrode conductivity and will prevent steam production or damage the canister.

If your grow room climate control system includes other components such as a condensate pump for a dehumidifier or passive humidity packs for smaller enclosures, those products operate independently of the AS35FP humidifier and require their own maintenance schedules.

Usage Guidelines

The AS80 canister requires no configuration — it is a direct swap replacement. However, a few usage and maintenance practices will extend the service life of each canister and protect the AS35FP unit:

• Use only compatible water: As noted in the compatibility section, do not use RO, distilled, or deionized water. The electrode-boiling mechanism depends on dissolved minerals in the water to complete the electrical circuit. Running RO water through the unit will not produce steam and may damage the electrodes.
• Replace annually, or as indicated: Anden recommends replacing the canister at the start of each heating season. In high-output applications or in areas with hard water, mineral scale may build up faster, shortening the canister’s effective life. If steam output drops noticeably before the end of a season, inspect the canister for heavy scale deposits.
• Always replace the O-ring with the canister: The O-ring included with the AS80 seals the canister against the humidifier’s water reservoir collar. A degraded or reused O-ring is a common source of small leaks inside the cabinet. Never re-install the old O-ring when fitting a new canister.
• Allow the unit to cool before servicing: The canister and the water in the reservoir will be hot after operation. Switch off and unplug the AS35FP, then wait for the unit to reach ambient temperature before removing the canister. This is a safety precaution against burns and also makes the canister easier to remove without stripping the threads.
• Dispose of the old canister appropriately: Spent canisters contain mineral scale and residue. Check local regulations for disposal of small electrical components if the electrode material is a concern in your jurisdiction.

Keeping a spare AS80 on the shelf means that when the humidifier signals a service interval, you can complete the swap during a planned maintenance window rather than waiting for an order to arrive. For larger operations managing multiple AS35FP units, a two-canister buffer stock per unit is a reasonable rotation plan.

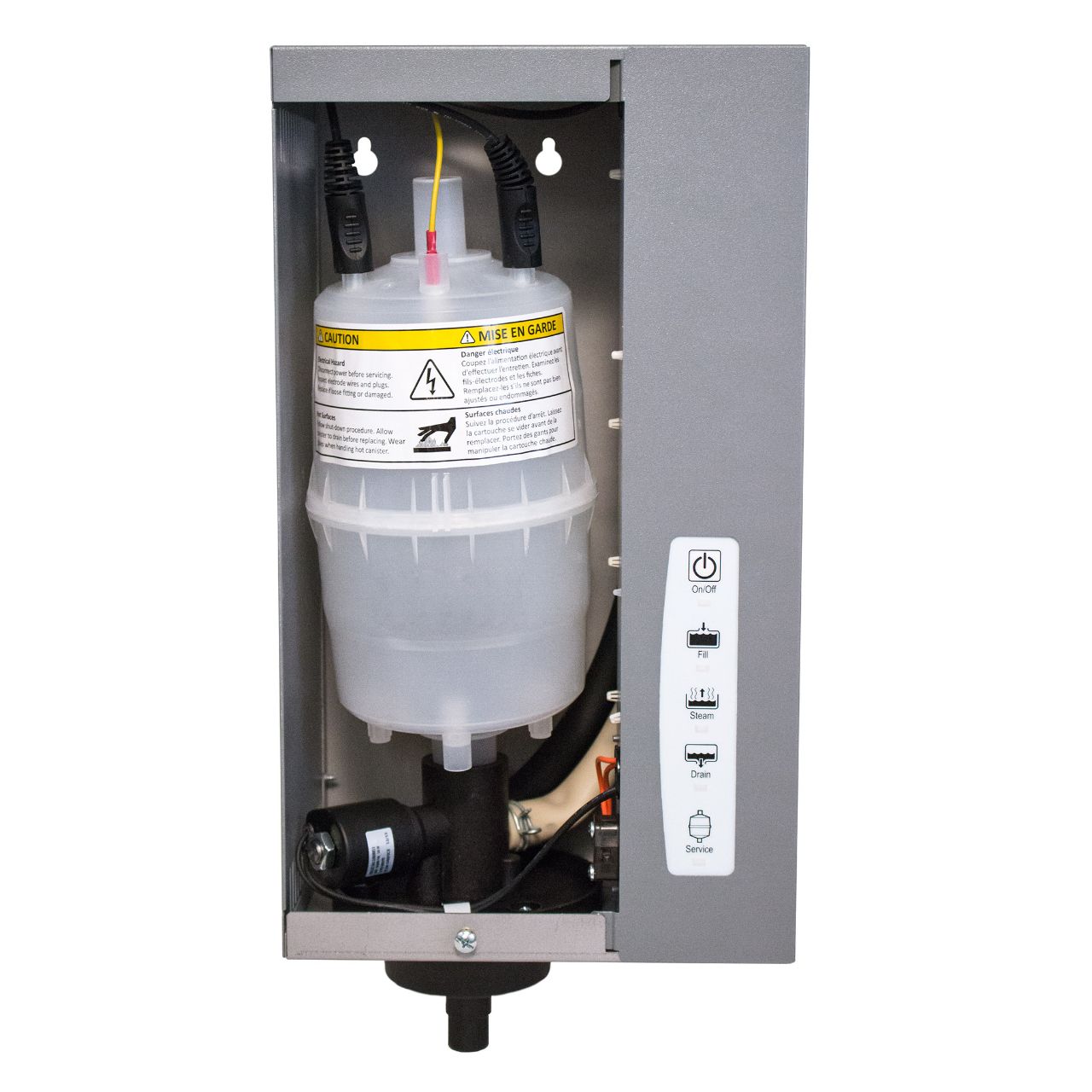

How to Replace the Anden AS80 Steam Canister

Canister replacement on the AS35FP is a straightforward maintenance task that does not require tools beyond what ships with the unit. Follow these steps to complete the swap safely:

1. Power down and unplug the AS35FP: Switch off the humidifier using the controls and then unplug the unit from the wall outlet. Do not attempt to remove the canister while the unit is powered or energized.
2. Allow the unit to cool: The canister and water reservoir operate at or near boiling temperature during use. Wait at least 30 minutes after shutdown, or until the outer cabinet is cool to the touch, before opening the canister access panel.
3. Drain residual water if needed: If the AS35FP’s drain cycle has not completed, follow the manufacturer’s procedure for draining the reservoir before opening the canister port. Refer to the AS35FP owner’s manual for the drain sequence specific to your unit’s firmware version.
4. Remove the existing canister and O-ring: Open the canister access cover per the AS35FP service instructions. Twist or unscrew the canister counterclockwise and lift it free of the collar. Remove the old O-ring from the collar seat and discard both the canister and the O-ring — do not reuse either component.
5. Inspect the collar and electrode contacts: Before installing the new canister, check the collar seat for mineral buildup or damage. Wipe away any loose scale with a clean, dry cloth. Inspect the electrical contacts inside the collar for corrosion. If contacts appear significantly corroded, consult Anden service before proceeding.
6. Seat the new O-ring: Place the fresh O-ring included with the AS80 into the collar groove. Verify it sits flat and is not twisted — a twisted O-ring will not seal properly and will leak.
7. Install the AS80 canister: Lower the new canister into the collar and rotate it clockwise until it seats fully. Follow the torque or hand-tightening specification in the AS35FP manual — overtightening can crack the canister body.
8. Close the access panel and restore power: Close and latch the canister access cover. Plug the unit back in and power it on. The AS35FP will typically run a fill and self-test cycle before producing steam. Observe the first fill cycle for any signs of leakage at the canister collar.
9. Verify operation: Once the unit reaches operating temperature, confirm that steam output from the fan pack has returned to normal levels. If the service indicator does not clear after the first operating cycle, consult the AS35FP troubleshooting section of the owner’s manual.

If you are also refreshing other climate control consumables at the same time, this is a good opportunity to check your intake pre-filters and any other scheduled maintenance items in the grow room.
