Apera GroStar GS2 Soil pH Pen

The Apera GroStar GS2 Soil pH Pen (SKU: AI31020) is a lab-grade instrument built specifically for growers who need accurate pH readings directly from soil, coco coir, rockwool, and other grow media — not just from liquid nutrient solutions. Its impact-resistant spear glass tip and PTFE junction ring address the two most common failure points when inserting a pH probe into solid substrate: tip breakage and junction clogging from soil particles. The GS2 includes calibration solutions, a hole dibber, and a replaceable Swiss LabSen Spear Soil probe, and carries an IP67 waterproof rating for grow-room conditions.

Apera GroStar GS2 Soil pH Pen Specifications

The GS2 is engineered around the specific demands of in-media pH testing. The spear-tip probe and PTFE ring are design choices that directly address the physical stresses of repeated soil insertion, while the 3-color backlit display and automatic temperature compensation carry over from the rest of the GroStar line. The specifications below are drawn from the manufacturer’s product documentation.

Specification	Value
SKU / Model	AI31020 — GroStar GS2
Measurement Parameters	pH and Temperature
Probe Type	Swiss LabSen Spear Soil pH Probe — replaceable
Probe Tip Design	Impact-resistant spear glass tip — 10× stronger than conventional glass bulb
Junction Design	PTFE ring — prevents clogging from soil particles
Sensor Technology	GroStar proprietary — manufactured in Switzerland
Compatible Media	Nutrient solution, soil, coco coir, rockwool, and other grow media
Waterproof Rating	IP67
Display	Large 3-color backlit LCD
Temperature Compensation	Automatic (ATC)
Power Source	AAA batteries (auto-off function included)
Instrument Warranty	2 years
Probe Warranty	1 year
Weight	0.70 lb

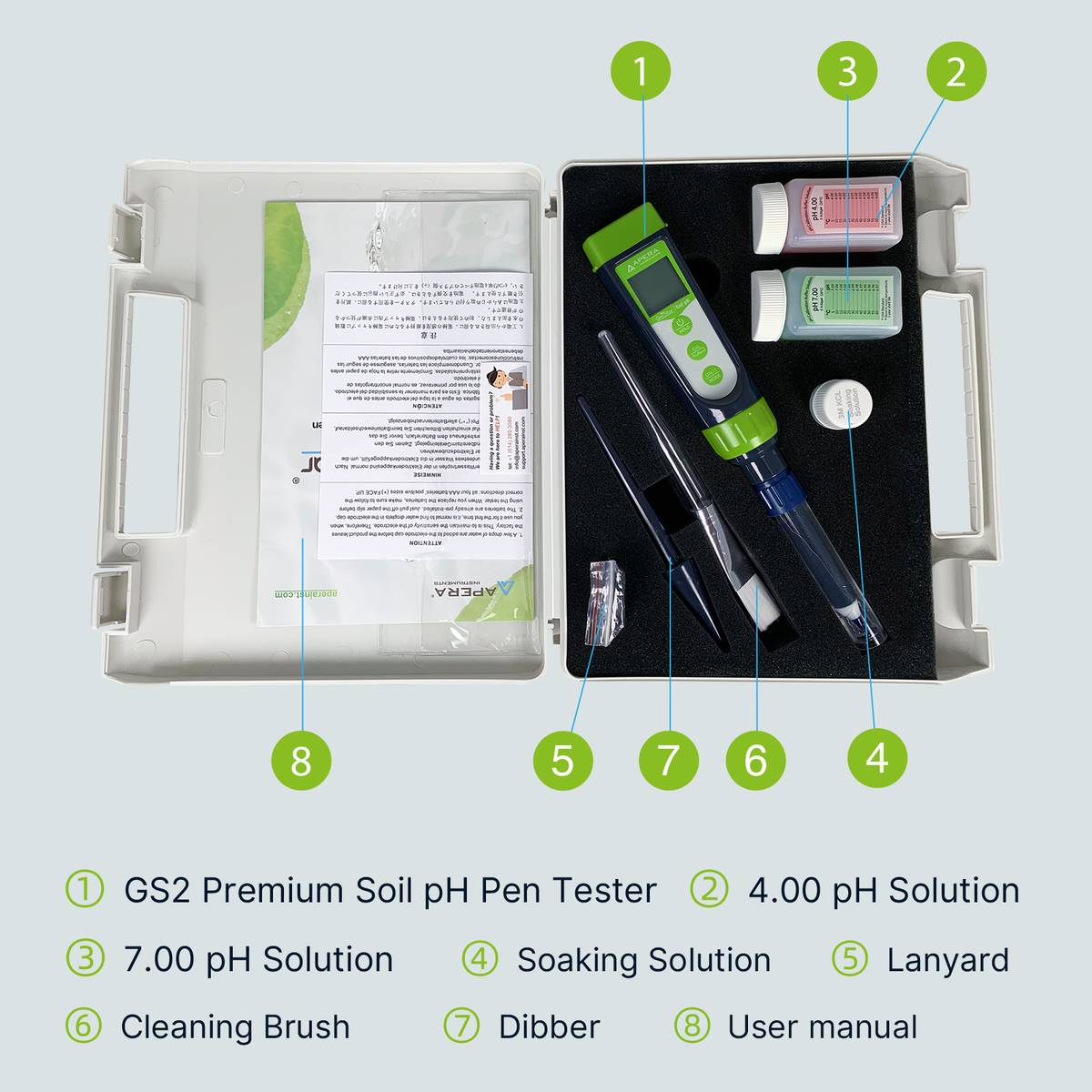

In the Box	pH 7 calibration solution (50 ml), pH 4 calibration solution (50 ml), KCl soaking solution (10 ml), cleaning brush, hole dibber, lanyard, user manual

Why Choose the Apera GroStar GS2 Soil pH Pen

Most pH pens are designed primarily for liquid measurement. Inserting a standard glass-bulb probe repeatedly into soil, coco coir, or rockwool causes two well-documented problems: the fragile glass bulb cracks under the mechanical stress of solid substrate, and fine particles clog the reference junction, degrading accuracy over time. The GS2 was built to address both of those failure modes directly.

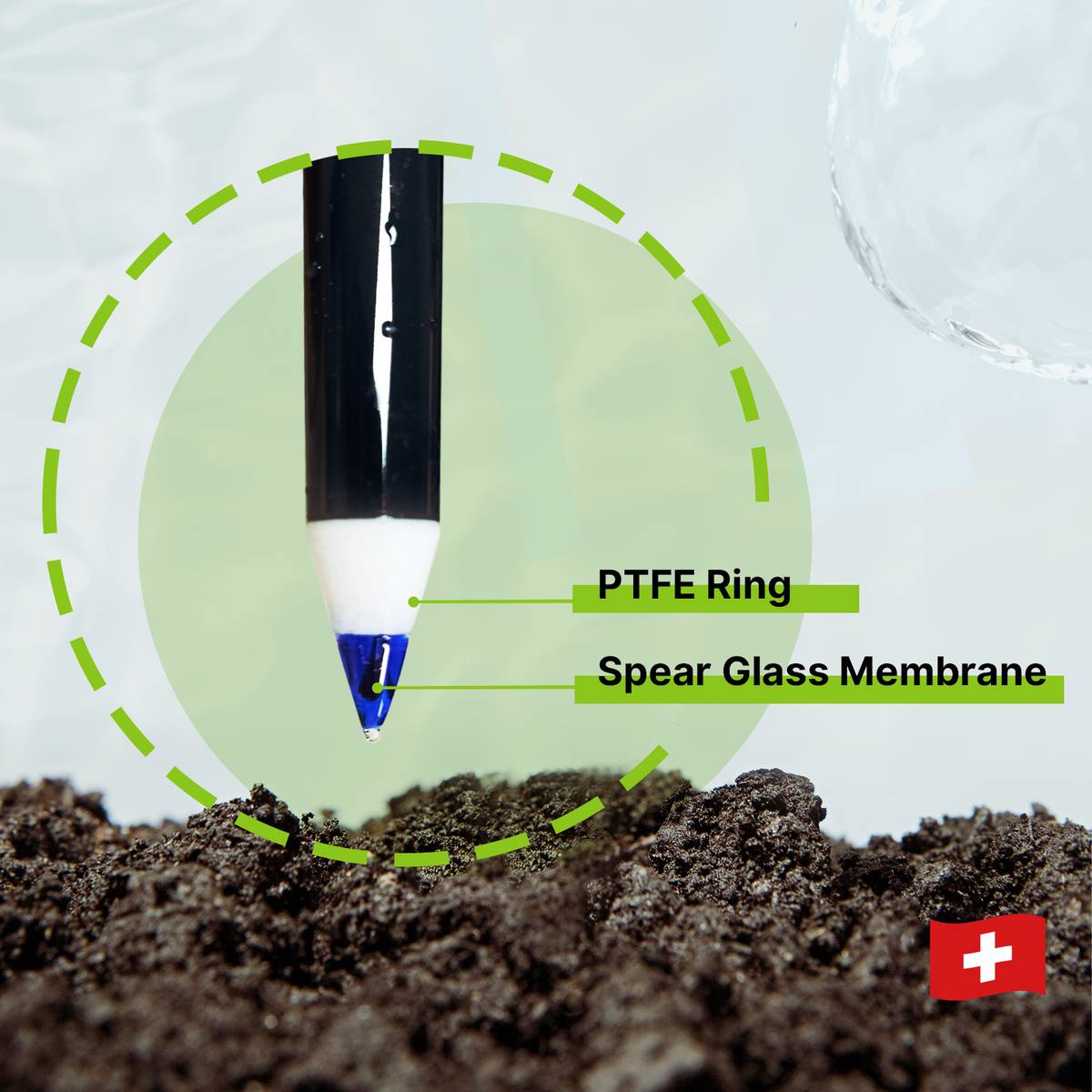

• Impact-resistant spear glass tip: The GS2 uses a spear-shaped glass tip that is documented at 10 times the impact resistance of a conventional round glass bulb electrode. This matters in daily grow-room use where the probe is pushed repeatedly into dense root zones, compacted coco, or garden soil. Tip breakage is one of the most common reasons growers replace soil pH instruments before the electronics fail.
• PTFE ring junction: The junction — the part of the electrode that allows electrical contact between the probe internals and the sample — uses a PTFE (polytetrafluoroethylene) ring design. PTFE is inert and resists clogging from soil and substrate particles that routinely block the ceramic or fiber junctions found on standard pH probes. A clogged junction produces slow, drifting, or inaccurate readings without obvious sign of failure.
• Swiss LabSen Spear Soil Probe — replaceable: The probe is replaceable, meaning when it eventually reaches end of life (as all pH probes do), you swap the probe assembly rather than the entire instrument. This is standard practice in lab-grade instruments and substantially lowers the total cost of maintaining accurate pH testing over multiple seasons.
• Measures pH in nutrient solution and solid grow media: The GS2 is not limited to soil. It also functions in nutrient solution, coco coir, rockwool, and other media types, making it useful across different grow styles without requiring a separate liquid pH pen for reservoir checks.

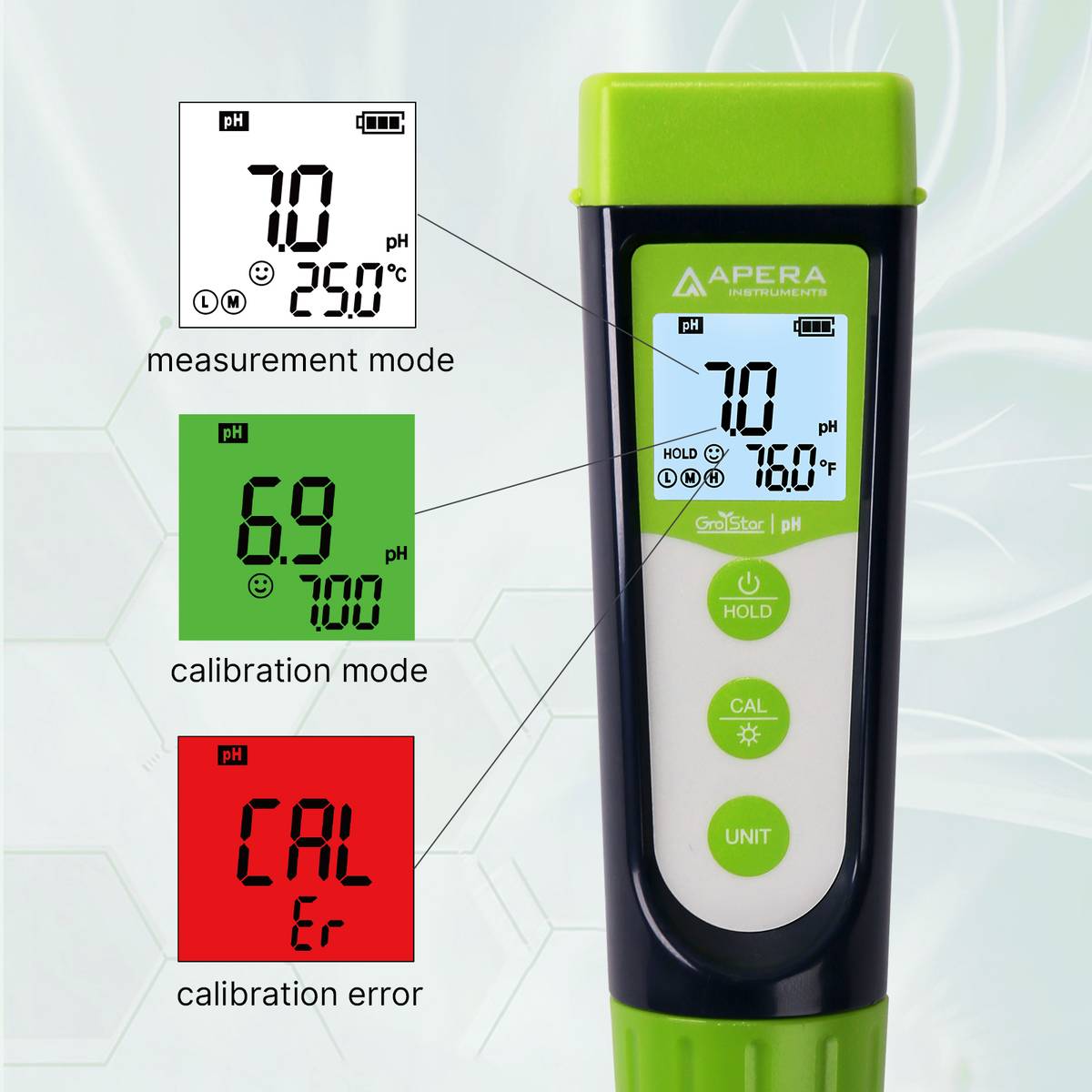

• 3-color backlit display with automatic temperature compensation: The display changes color to signal pH status, which is useful in the variable lighting of a grow room or greenhouse. ATC ensures the pH reading accounts for temperature differences between your nutrient solution and the calibration buffer.
• Hole dibber included: The GS2 ships with a hole dibber — a pointed tool used to create a small pilot hole in soil or substrate before inserting the probe. This reduces the force needed for insertion and further protects the spear tip from unnecessary mechanical stress during testing.

Best Uses for the Apera GroStar GS2 Soil pH Pen

The GS2 is specifically engineered for in-media pH testing and is appropriate wherever direct substrate measurement is part of the grow monitoring routine:

• Direct soil and substrate pH measurement: The GS2’s spear tip and PTFE junction are designed specifically for this use case — pushing the probe directly into moist soil, coco coir, or rockwool slabs to get a pH reading at the root zone. This is more direct than testing runoff or slurry samples, and faster when monitoring multiple containers or rows.
• Coco coir grows requiring regular root-zone pH checks: Coco coir has a natural tendency to buffer pH and can develop localized pH gradients with repeated fertigation. Spot-checking the substrate directly with the GS2 provides a more immediate picture of root-zone conditions than relying solely on runoff readings from the base of the container.
• Rockwool propagation and early-stage grows: Rockwool is notoriously alkaline out of the package and needs to be pre-soaked and pH-corrected before use. The GS2 can confirm pH directly in the slab or cube before transplanting, rather than relying solely on the pH of the soaking solution.
• Mixed-media and outdoor grows: Growers using blended substrates (soil with perlite, amended beds, potting mixes) benefit from direct insertion testing because runoff pH can vary significantly from the root-zone pH in dense or layered media. The GS2’s durable construction and IP67 rating also make it suitable for outdoor or greenhouse environments where exposure to moisture is a given.
• Nutrient reservoir and solution pH checks: Despite being purpose-built for soil, the GS2 functions equally in liquid nutrient solutions. A single instrument can handle both reservoir monitoring and direct media testing, reducing the number of meters a grower needs to maintain and calibrate.

Apera GroStar GS2 vs Similar Soil pH Pens

Soil pH pens occupy a specific niche within the broader pH meter market. Standard liquid pH pens — including the GroStar GS1 — are calibrated and designed primarily for immersion in nutrient solutions and liquids. Using them for repeated soil insertion typically results in premature tip failure and junction clogging. The GS2 addresses this by designing the probe hardware specifically around the mechanical and chemical demands of soil and substrate testing.

The primary distinction between the GS2 and lower-cost soil pH testers (consumer-grade analog or digital probes sold at garden centers) is build quality and measurement accuracy. Consumer soil probes typically use galvanic cells or cheaper electrode materials that are not calibratable and do not provide temperature compensation. They provide a rough directional indication of pH but are not suitable for the precision management that hydroponic and commercial coco/rockwool grows require. The GS2 uses the same Swiss LabSen sensor technology as the rest of the GroStar line, is calibratable with standard pH buffer solutions, and applies automatic temperature compensation — all of which are requirements for measurements you can trust.

Compared to other lab-grade soil pH pens in the market, the GS2’s differentiating features are the spear glass tip durability claim (10× impact resistance versus conventional glass bulb) and the PTFE ring junction. Both are design choices specifically oriented toward extending usable probe life in solid media, where junction clogging and tip breakage are the primary failure modes that drive replacement costs.

The GS2 ships as a complete kit — pH 7 and pH 4 calibration solutions (50 ml each), KCl soaking solution, cleaning brush, hole dibber, lanyard, and user manual — so there are no additional accessories required for initial setup. For EC measurement alongside pH, the Apera GroStar EC Calibration Kit provides calibration solution for an EC meter within the same GroStar ecosystem.

Compatibility

The GS2 is a standalone handheld instrument. It does not require integration with a controller, data logger, or specific irrigation system. It works across grow environments and system types where direct pH measurement is needed.

Compatible substrates and media: Nutrient solution, soil, coco coir, rockwool slabs and cubes, perlite/soil blends, and other semi-solid grow media. The spear tip and PTFE junction are designed for repeated insertion into solid and semi-solid substrates. For liquid-only pH measurement, the standard GroStar GS1 pen may be more appropriate if soil insertion is not required.

Grow system compatibility: Suitable for any system that uses a solid or semi-solid substrate component — including drip-to-waste systems, hand-watered coco and soil, rockwool NFT hybrids, and outdoor soil gardens. Also functions for liquid reservoir testing in DWC, RDWC, ebb and flow, and aeroponic systems.

Power: Runs on standard AAA batteries. No charging is required. The auto-off function preserves battery life between uses, which is practical for growers using the pen for spot checks across multiple containers or beds.

Calibration solutions: Compatible with standard pH 4 and pH 7 buffer solutions. The included solutions are sufficient for initial calibration; replacement calibration solutions are available through Apera Instruments and authorized distributors.

If your grow setup relies on reverse osmosis water as a starting point for nutrient mixing, note that very low-TDS RO water can slow pH stabilization during calibration due to minimal ion content. This is a characteristic of the water, not the instrument — allow extra time for the reading to stabilize when calibrating or testing in very-low-EC solutions. For systems where water quality management is a factor, pairing the GS2 with an EC electrode for your EC meter gives you a complete picture of both pH and nutrient concentration at the root zone.

Usage Guidelines

Accurate pH readings from soil and semi-solid media require different technique than liquid dip-and-read testing. The following guidelines apply to the GS2 based on its documented design features and standard pH pen operating practice for in-media applications.

Media moisture before testing: The probe needs moisture to make electrical contact with the substrate. For soil and coco coir testing, the media should be adequately moist — not saturated, but at or near field capacity. Testing in very dry media will produce slow, unstable, or inaccurate readings. If the substrate is dry, water it and allow it to drain before measuring.

Using the hole dibber: Before inserting the probe, use the included hole dibber to pre-form a small pilot hole in the substrate. This reduces the force required to insert the probe and protects the spear tip from the lateral and compressive forces that cause probe damage during insertion into dense media. The hole should be slightly smaller than the probe diameter to maintain good contact.

Insertion depth: Insert the probe to place the spear tip and junction at the depth corresponding to the root zone you want to measure — typically 2–4 inches for most container grows. Avoid the top surface layer of substrate, which tends to have different pH characteristics than the root zone.

Calibration frequency: Calibrate the GS2 before first use and periodically thereafter — typically at least once weekly during active growing, or any time you suspect drift. The included pH 4 and pH 7 buffer solutions support standard two-point calibration. The fast calibration adjustment feature means the calibration process does not require extended wait times.

Probe storage: Store the probe tip in the included KCl soaking solution between uses. Dry storage or storage in distilled water shortens probe life. After use in soil or media, rinse the probe with clean water and use the cleaning brush (included) to remove any substrate particles from around the junction area before replacing the storage cap.

Cleaning after soil use: The PTFE ring is designed to resist junction clogging, but routine cleaning after each soil insertion session is still recommended. Rinse the probe under clean water and gently use the cleaning brush on the probe shaft and around the junction area. Avoid brushing directly on the glass spear tip.

Temperature reading: The GS2 displays both pH and temperature simultaneously. In soil and media testing, the temperature reading reflects the substrate temperature at the probe depth, which may differ from ambient air temperature in the grow room. ATC adjusts the pH reading for this temperature automatically.

How to Set Up and Use the Apera GroStar GS2 Soil pH Pen

1. Unbox and inspect: Remove the GS2 from packaging. Check the spear probe tip and protective storage cap for any shipping damage. The probe tip ships with the storage cap containing KCl solution — keep the probe submerged in KCl until first use. Install AAA batteries per the battery compartment diagram in the user manual.
2. Pre-soak the probe if needed: If the probe tip is dry (e.g., storage cap was empty), soak the spear tip in the included KCl soaking solution for 15–30 minutes before calibration. A properly conditioned probe reaches stable readings faster during both calibration and sample measurement.
3. Perform initial two-point calibration: Pour a small amount of pH 7 buffer solution into a clean container. Rinse the probe tip with clean water, then immerse it in the pH 7 buffer. Power on the GS2 and wait for the reading to stabilize. Follow the calibration procedure in the user manual to set the first calibration point. Then rinse with clean water, immerse in pH 4 buffer, allow to stabilize, and confirm the second calibration point.
4. Rinse after calibration: After calibration is complete, rinse the probe with clean water. Do not wipe the probe tip — gently blot if needed. The GS2 is now ready for use.
5. Prepare the test site (soil/media): Verify the substrate is adequately moist. Use the included hole dibber to pre-form a small pilot hole at the location you want to test. The pilot hole should reach the depth of the target root zone.
6. Insert probe and take reading: Insert the GS2 spear tip into the pilot hole, pressing to the target depth. Hold the pen still and wait for the reading to stabilize on the 3-color backlit display. The display shows both pH and temperature. Note both values.
7. For liquid measurement: Immerse the probe tip directly in the nutrient solution or water sample to the appropriate depth. Wait for the reading to stabilize. The same ATC correction applies in liquid as in soil.
8. Clean and store after use: After each use — especially after soil or media insertion — rinse the probe under clean water and use the cleaning brush to remove any particles from around the junction area. Replace the storage cap with KCl soaking solution covering the probe tip. Allow the auto-off function to engage or power down manually. Store in a clean, dry location with the probe tip submerged in KCl within the cap.
9. Probe replacement: When the probe reaches end of life — indicated by readings that are slow to stabilize, drift significantly, or cannot be brought into calibration — replace the Swiss LabSen Spear Soil probe assembly. The instrument body and electronics remain in service. Consult Apera Instruments for compatible replacement probe options for the GS2.
