Bluelab PeriPod L3

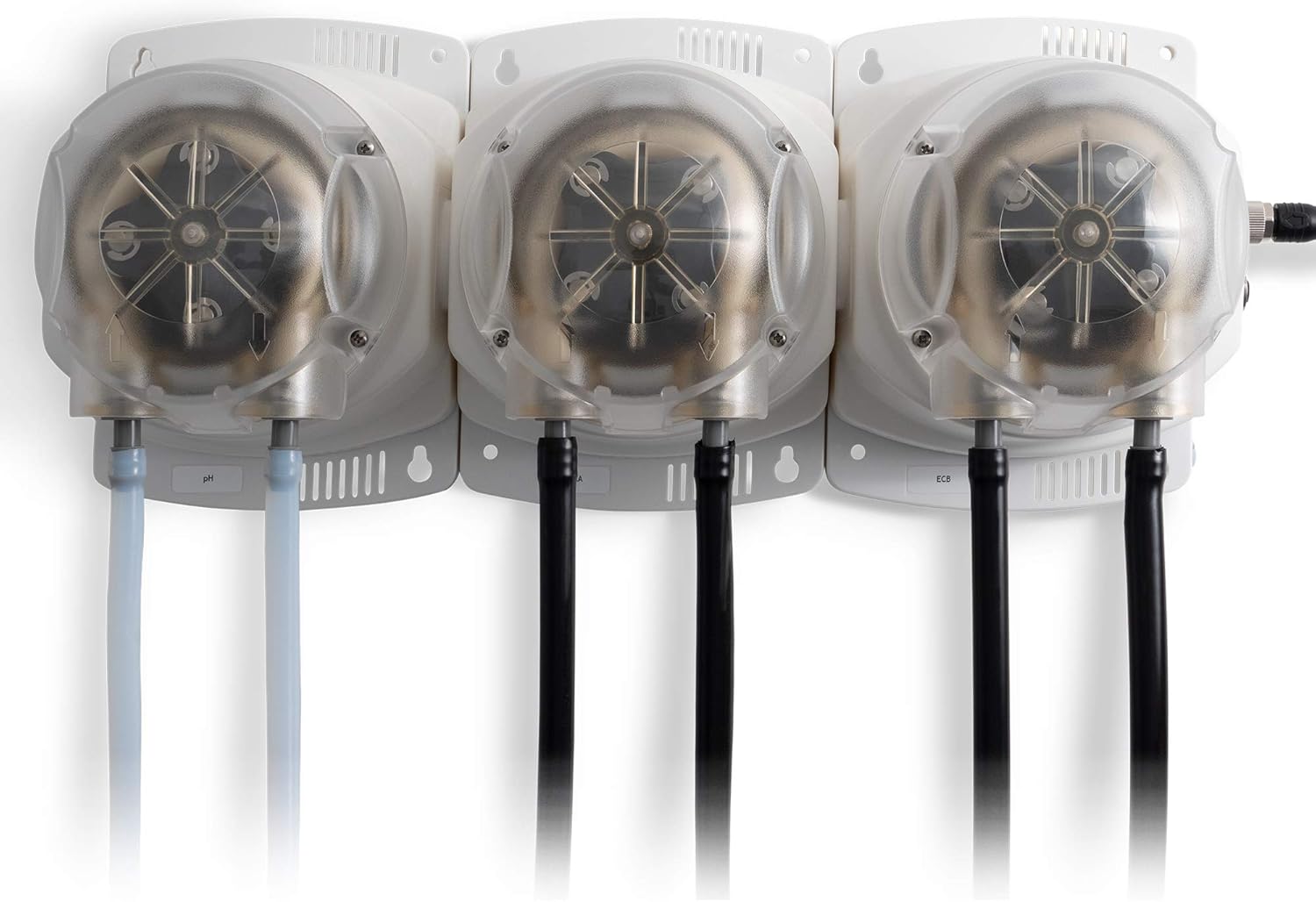

The Bluelab PeriPod L3 is a three-pump peristaltic dosing unit designed to work alongside the Bluelab Pro Controller. It receives dosing trigger signals from the controller and automatically pumps pH correction fluid and two nutrient stock solutions into your reservoir — keeping pH and nutrient levels on target without manual intervention. Each of the three pumps delivers 1200 ml/min (40 fl oz/min), and the unit ships with acid/alkaline resistant tubing for all three lines.

Bluelab PeriPod L3 Specifications

The table below lists the key specifications for the PeriPod L3 as derived from manufacturer documentation and the canonical product record.

Specification	Value
Brand	Bluelab
Model	PeriPod L3
Supplier SKU	PERIPODL3
Pump Type	Peristaltic
Number of Pumps	3 total
pH Pump Quantity	1
Nutrient Pump Quantity	2

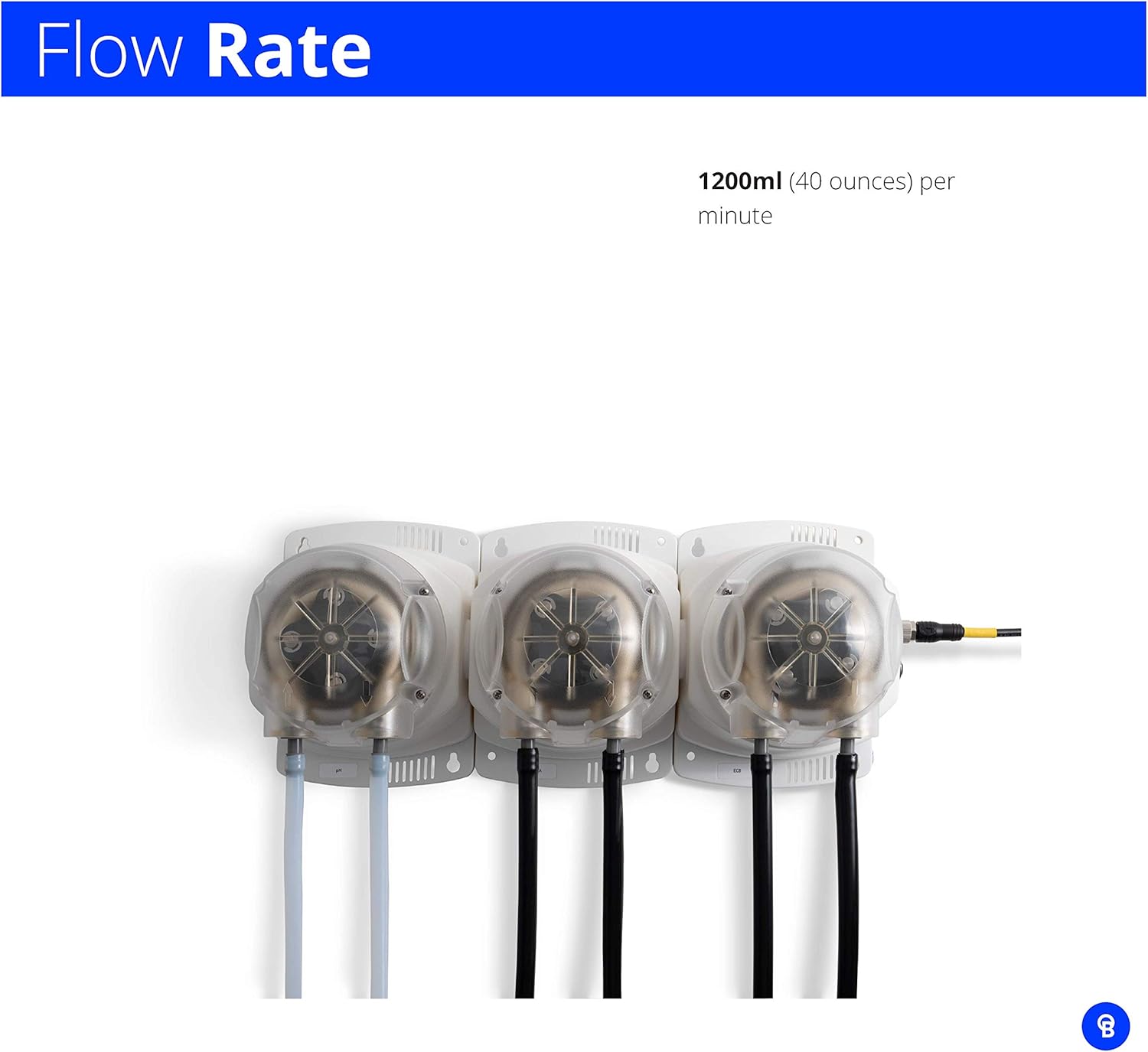

Flow Rate (each pump)	1200 ml/min / 40 fl oz/min
pH Tubing Included	13 ft, acid/alkaline resistant
Nutrient Tubing Included	13 ft per nutrient line

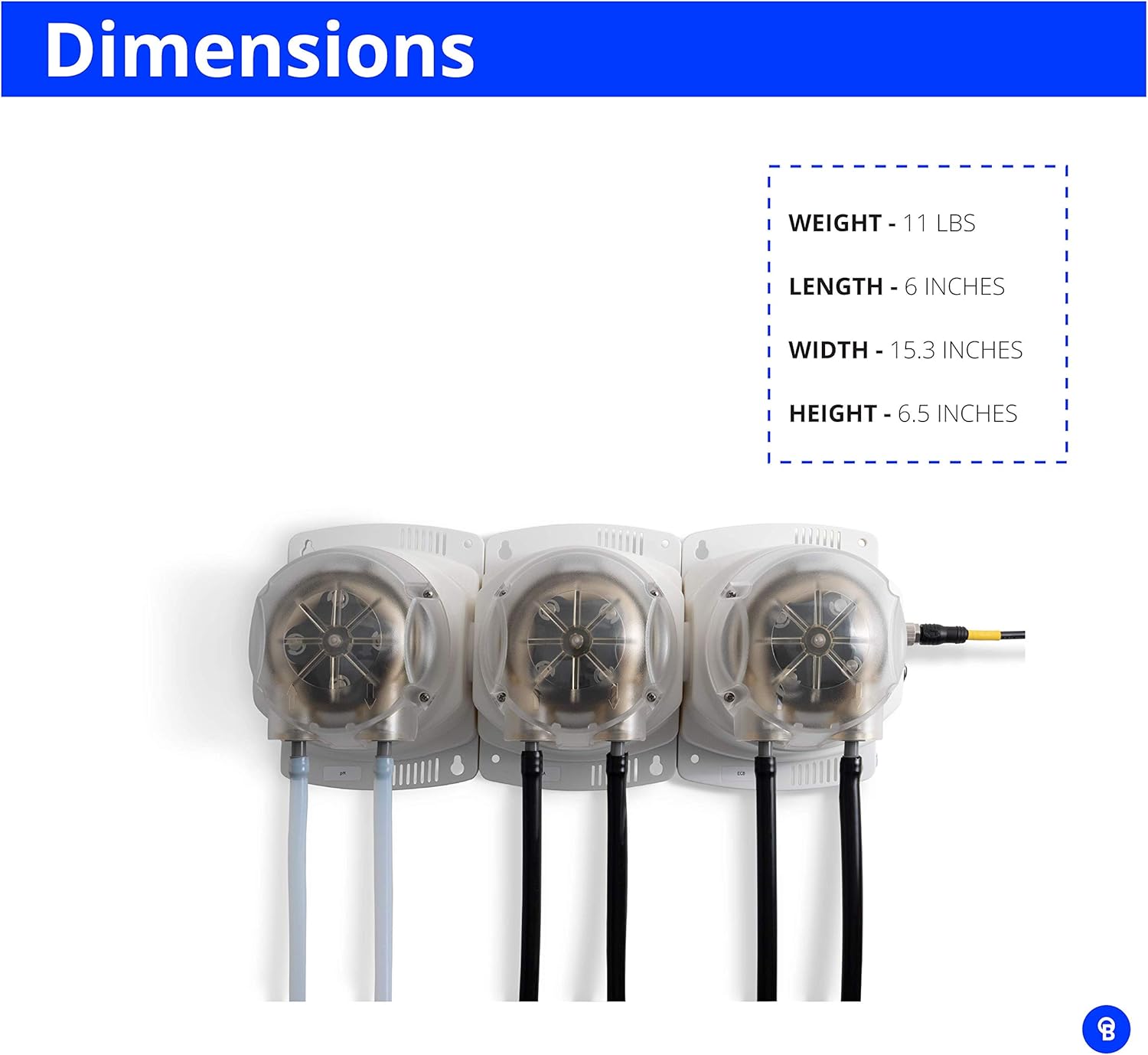

Weight	10.81 lb (4.90 kg)
Required Controller	Bluelab Pro Controller

Why Choose the Bluelab PeriPod L3

Automated reservoir dosing eliminates one of the most time-consuming daily tasks in a hydroponic operation: manually checking and adjusting pH and nutrient levels. The PeriPod L3 is built to handle that job continuously, around the clock, whenever the Bluelab Pro Controller signals that a correction is needed.

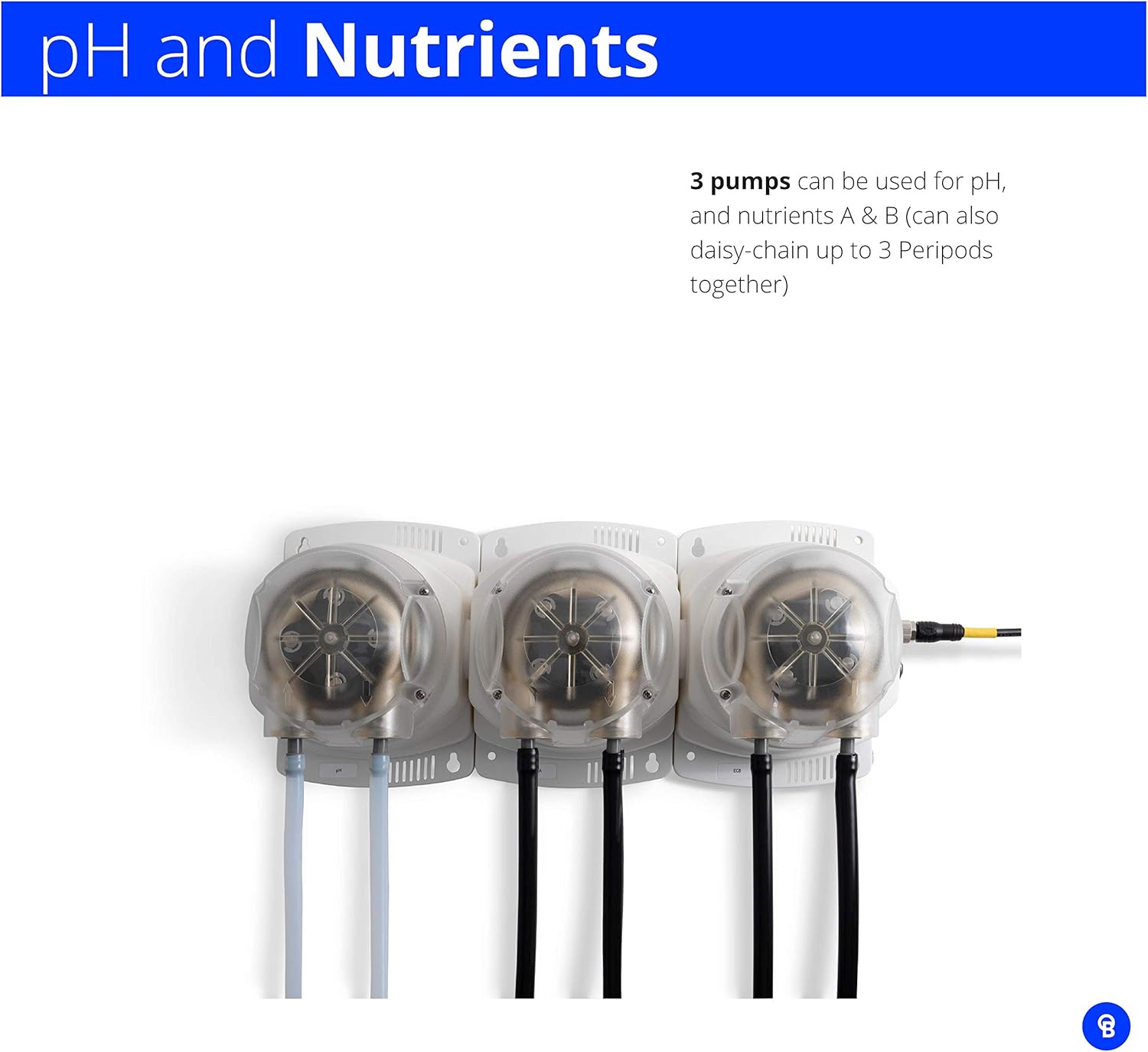

• Three dedicated pumps, purpose-assigned: The L3 splits dosing duties clearly — one pump moves pH correction fluid (either pH Up or pH Down depending on your setup) while two separate pumps handle nutrient Part A and Part B stock solutions. Keeping lines separated prevents cross-contamination between pH adjuster and nutrients.
• High flow rate of 1200 ml/min per pump: Each pump moves 1200 ml/min (40 fl oz/min), which is fast enough to make meaningful corrections to large reservoirs without leaving the system waiting. For large-scale operations with substantial reservoir volumes, this flow rate allows prompt response to controller triggers.
• Integrated with the Bluelab Pro Controller ecosystem: The PeriPod L3 does not operate as a standalone unit — it receives dosing triggers directly from a Bluelab Pro Controller. This tight integration means the controller’s sensors drive the dosing decisions; the PeriPod executes them. There is no separate programming of dose timing on the PeriPod itself.
• Acid/alkaline resistant tubing included: The kit ships with 13 ft of acid/alkaline resistant tubing for the pH line and 13 ft of standard tubing for the nutrient lines. Both lengths are practical for routing from stock solution containers to the reservoir without immediately needing extension.
• Expandable with optional accessories: The system is designed to accommodate optional additions such as the Bluelab Alarm Box and Sample Pot, allowing growers to build out monitoring and sampling capability as their operation grows.

Best Uses for the Bluelab PeriPod L3

The PeriPod L3 fits operations where the Bluelab Pro Controller is already installed and where manual pH and nutrient dosing has become a bottleneck or a source of inconsistency.

• Commercial and large-scale hydroponic grows: In facilities where a single reservoir serves dozens of plants — or where multiple reservoirs are centralized — continuous automated dosing keeps EC and pH within narrow tolerances. The 1200 ml/min flow rate is suited to reservoir volumes where small hand-dosed corrections take too long to equilibrate.
• Recirculating systems (NFT, DWC, RDWC): Nutrient film technique, deep water culture, and recirculating deep water culture setups all rely on a consistent nutrient solution. The PeriPod L3 responds to real-time measurements from the Pro Controller to correct drift before it affects plant uptake.
• Growers transitioning from manual to automated dosing: The PeriPod L3 is a practical entry point into fully automated reservoir management for operations that already use Bluelab monitoring equipment. It closes the loop between measurement (the Pro Controller) and correction (the PeriPod’s pumps).
• Facilities requiring documentation and alerts: When paired with an optional Bluelab Alarm Box, the system can alert staff to out-of-range conditions. The optional Sample Pot allows periodic grab samples without disturbing the sealed reservoir. These additions make the PeriPod L3 useful in operations that need audit trails or compliance records.

Bluelab PeriPod L3 vs Similar Dosing Systems

The PeriPod L3 occupies a specific niche: it is a controller-dependent dosing module, not a standalone auto-doser. Understanding that distinction helps clarify who should consider it versus alternative approaches.

PeriPod L3 vs standalone auto-dosers: Standalone auto-dosers (such as units from Dosatron or generic peristaltic dosing systems) include their own sensors and programming interfaces. They can operate independently without a separate controller. The PeriPod L3 has no independent sensor or user-programmable dose schedule — it relies entirely on trigger signals from the Bluelab Pro Controller. This is not a limitation for growers already running the Pro Controller ecosystem; it is a deliberate design choice that keeps the dosing hardware simple and the control logic centralized in the controller. For growers without a Bluelab Pro Controller, a standalone system would be more appropriate.

PeriPod L3 vs manual dosing: Manual pH and nutrient adjustment requires checking reservoir readings at intervals (typically once or twice daily) and hand-adding corrections. Between checks, pH and EC can drift — particularly in systems with high transpiration rates or active biological activity. The PeriPod L3 eliminates that interval by dosing continuously in response to real-time controller readings. The trade-off is that the system requires pump calibration, tubing maintenance, and stock solution management that manual dosing does not.

For growers already using a calibrated EC measurement setup alongside their pH monitoring, the PeriPod L3 completes the automation loop without requiring a separate control platform.

Compatibility

The PeriPod L3 is designed specifically to integrate with the Bluelab Pro Controller. The Pro Controller provides the dosing trigger signals that activate the PeriPod’s pumps. Without a connected Bluelab Pro Controller, the PeriPod L3 will not operate.

Stock solution compatibility: The pH pump circuit uses acid/alkaline resistant tubing, making it suitable for both pH Up (potassium hydroxide-based) and pH Down (phosphoric or nitric acid-based) solutions. The nutrient pump circuits use standard peristaltic tubing sized for typical hydroponic nutrient concentrates.

Optional accessories: The Bluelab Alarm Box can be added to the system to provide audible or visual alerts when parameters fall outside the programmed range. The Bluelab Sample Pot can be added to allow in-line sample collection. Both accessories are optional and sold separately.

Reservoir size considerations: At 1200 ml/min per pump, the PeriPod L3 is suited to medium to large reservoir volumes typical of commercial operations. For very small hobby reservoirs (under 50 liters), the flow rate may deliver corrections faster than the system can equilibrate, requiring careful calibration of dose volumes in the Pro Controller settings.

If you are building out your water management infrastructure, a reverse osmosis filtration system upstream of your reservoir can reduce baseline mineral load and make pH and EC control more predictable.

Usage Guidelines

The PeriPod L3 functions as an output device controlled by the Bluelab Pro Controller. Usage involves three ongoing responsibilities: stock solution management, tubing maintenance, and periodic pump calibration.

Stock solution containers: Each pump line draws from a stock solution container. The pH pump draws from a single pH correction solution (either pH Up or pH Down — choose based on whether your reservoir tends to rise or fall). The two nutrient pumps draw from Part A and Part B stock solutions. Keep containers topped up; an empty container will cause the pump to run dry, which can damage peristaltic tubing over time.

Dose volume calibration: The Bluelab Pro Controller controls how long the PeriPod pumps run per dosing event. Calibrate the dose volume settings in the Pro Controller to match your reservoir volume and the concentration of your stock solutions. Start with conservative dose volumes and increase gradually while monitoring reservoir EC and pH response.

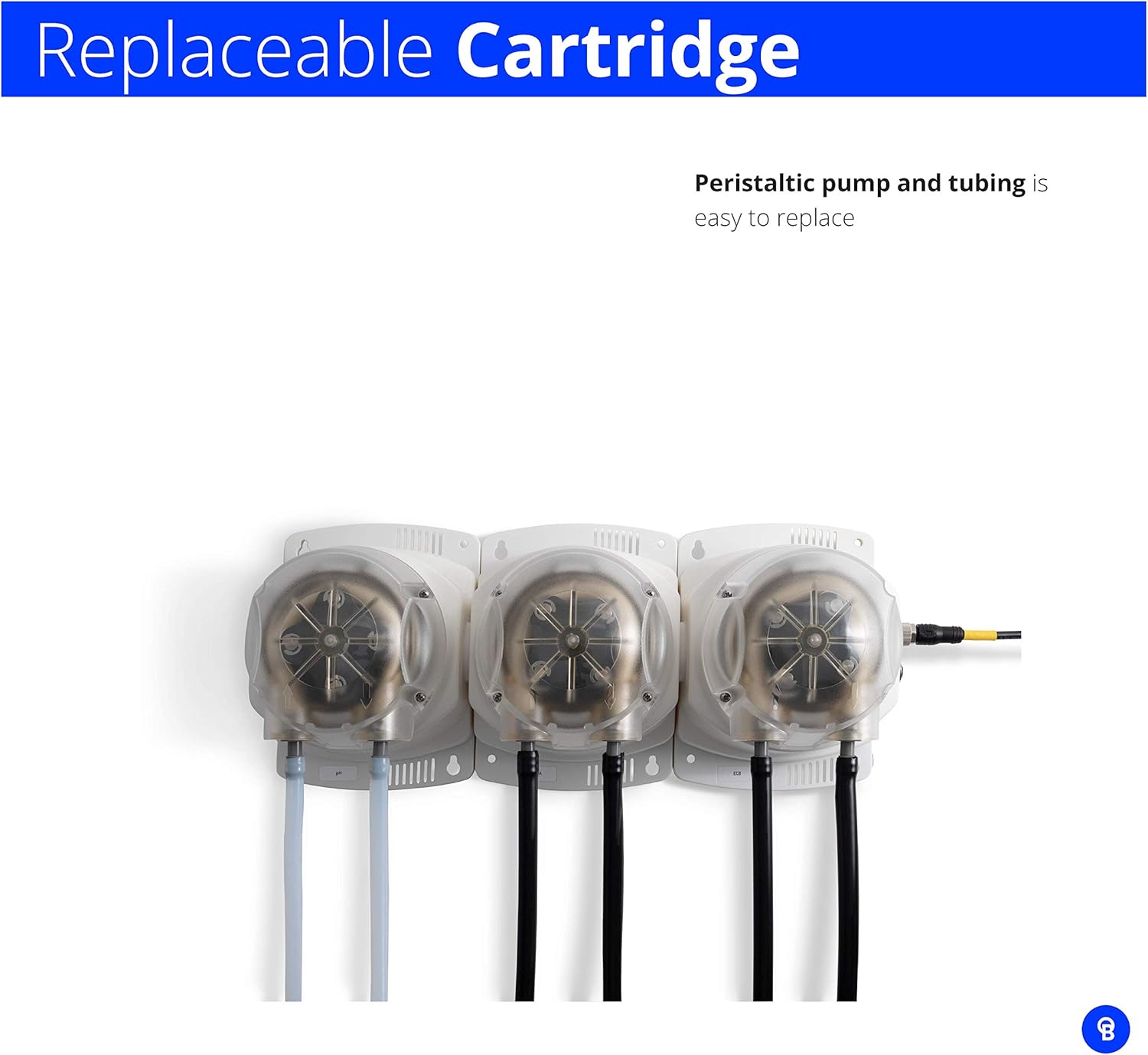

Tubing inspection: Peristaltic pump tubing wears over time due to the repeated compression action of the pump rollers. Inspect tubing for cracks, cloudiness, or reduced flexibility at regular intervals — typically every one to three months depending on frequency of use. Replace tubing at the first sign of wear to prevent dosing errors or leaks.

Line priming: After initial setup or after replacing tubing, prime each pump line by running the pump manually (via the Pro Controller’s manual dose function) until solution flows continuously from the outlet end of the tube. Air pockets in the line can cause inconsistent dosing.

Pairing the PeriPod L3 with a quality EC calibration kit for your monitoring probes ensures the controller’s readings — and therefore the PeriPod’s dosing triggers — are accurate.

How to Set Up the Bluelab PeriPod L3

1. Verify compatibility: Confirm you have an operational Bluelab Pro Controller installed and connected to your reservoir monitoring probes. The PeriPod L3 cannot operate without the Pro Controller providing dosing trigger signals.
2. Position the PeriPod unit: Place the PeriPod L3 near your stock solution containers and reservoir. Allow enough distance that the included 13 ft tubing lines can reach from the stock containers to the reservoir inlet point without kinking. The unit should be on a stable, level surface away from standing water.
3. Connect the pH tubing: Route the acid/alkaline resistant tubing from the pH pump outlet to the pH stock solution container inlet and from the pump outlet to your reservoir. Ensure the tubing is correctly seated in the pump head before running the pump.
4. Connect the nutrient tubing: Route one nutrient tubing line from Part A stock container through the first nutrient pump and into the reservoir. Route the second line from Part B stock container through the second nutrient pump and into the reservoir. Keep Part A and Part B lines separate; never allow them to mix in the tubing.
5. Connect the PeriPod to the Bluelab Pro Controller: Follow the Pro Controller’s connection guide to link the PeriPod L3 to the controller’s dosing output ports. The controller will then be able to send trigger signals to activate each pump independently.
6. Prime all three pump lines: Using the Pro Controller’s manual dose function, run each pump until solution flows from the outlet tubing with no air gaps. Prime the pH line, then the two nutrient lines separately.
7. Set dose volumes in the Pro Controller: Configure dose volume and lockout period settings in the Pro Controller based on your reservoir volume and stock solution concentration. Refer to Bluelab’s dosing calculator or documentation for starting values.
8. Run a test cycle and verify: After setup, allow the system to run through at least one automated dosing event. Check reservoir pH and EC readings before and after the dose event to confirm that corrections are moving in the expected direction and magnitude.
