Bluelab PeriPod M4

The Bluelab PeriPod M4 is a 4-channel peristaltic dosing unit built to integrate directly with the Bluelab Pro Controller. It automates the delivery of pH adjusters and nutrient stock solutions into your reservoir, with four pumps each rated at 120 ml (4 fl oz) per minute. Multiple PeriPods can be linked together to support up to 12 dosing channels, making the M4 a flexible foundation for precision reservoir management at any scale.

Bluelab PeriPod M4 Specifications

Key technical specifications for the Bluelab PeriPod M4, sourced from manufacturer product data and the canonical product record.

Specification	Value
Brand	Bluelab
Model	PeriPod M4
Number of Pump Channels	4
Pump Flow Rate (each)	120 ml (4 fl oz) per minute
Pump Type	Peristaltic
Required Controller	Bluelab Pro Controller
Max Dosing Channels (multi-unit)	Up to 12 (with M3 or M4 PeriPods connected)
Weight	4.76 lb (2.16 kg)
Optional Accessories	External alarm box, sample pot
SKU	PERIPODM4

Why Choose the Bluelab PeriPod M4

The Bluelab PeriPod M4 is designed for growers who already rely on the Bluelab Pro Controller to monitor and manage their reservoir. Rather than dosing nutrients manually, the PeriPod receives automated triggers from the Pro Controller and dispenses measured volumes of pH adjusters or nutrient concentrates directly into the reservoir — removing a significant source of human error from daily maintenance.

Peristaltic pumps are a practical choice for hydroponic dosing because the fluid only contacts the tubing, not the pump mechanism itself. This makes them easier to clean, less prone to corrosion from concentrated nutrient solutions, and more consistent in their output over time compared to diaphragm or centrifugal alternatives.

The M4 designation refers to the four pump channels on this unit. Each channel runs independently at 120 ml per minute, allowing the controller to trigger different doses at different intervals depending on the current pH or EC reading. When your setup requires more than four dosing lines — for example, if you’re running a multi-part nutrient program alongside pH up and pH down — you can connect additional M3 or M4 PeriPods to expand capacity up to 12 channels total.

The system also supports an external alarm box and a sample pot as optional accessories, which lets you build out a more complete monitoring and alert setup around the same controller. This modularity means you can start with a single PeriPod and scale as your operation grows, rather than replacing the system entirely when your needs change.

• Responds directly to dosing triggers from the Bluelab Pro Controller for closed-loop reservoir automation

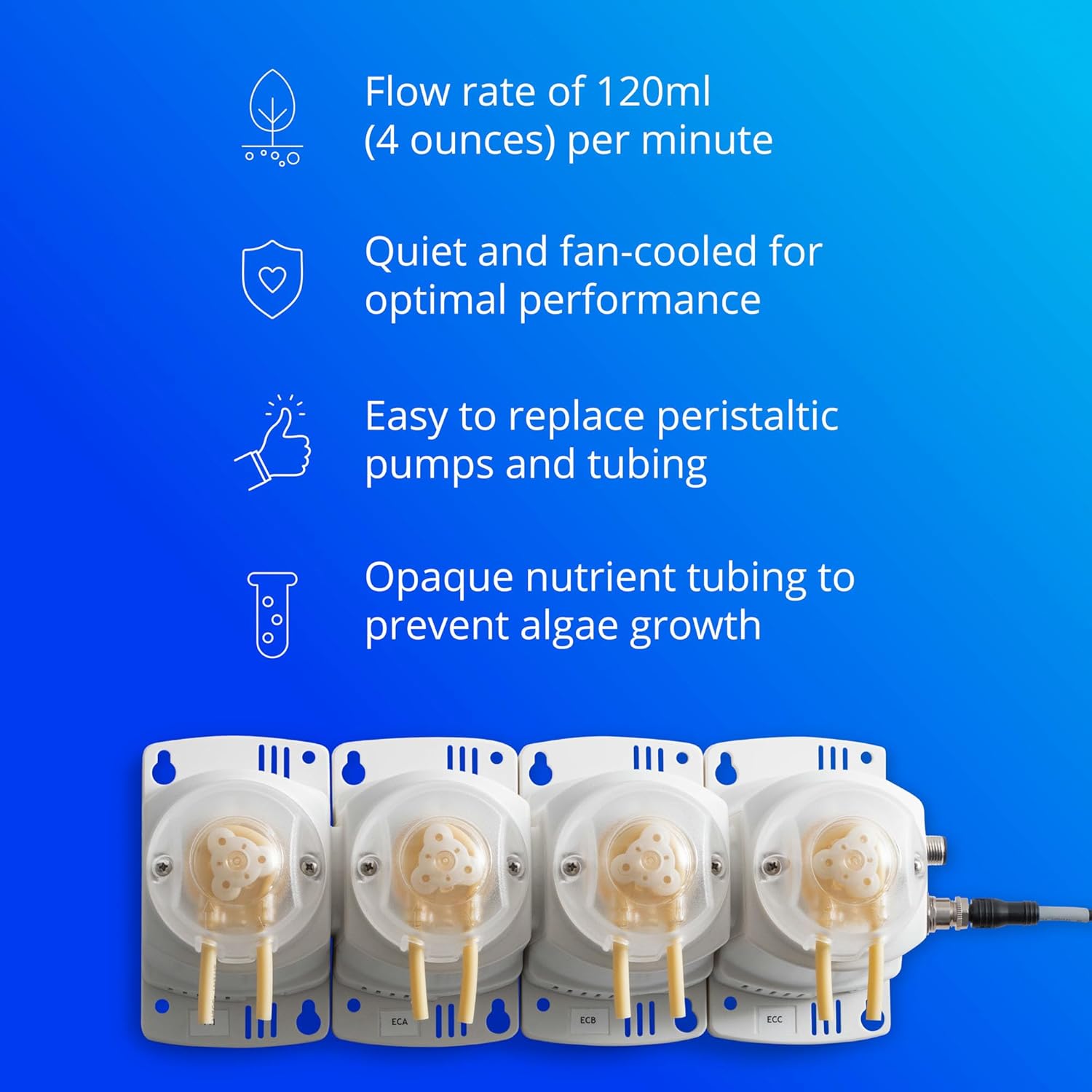

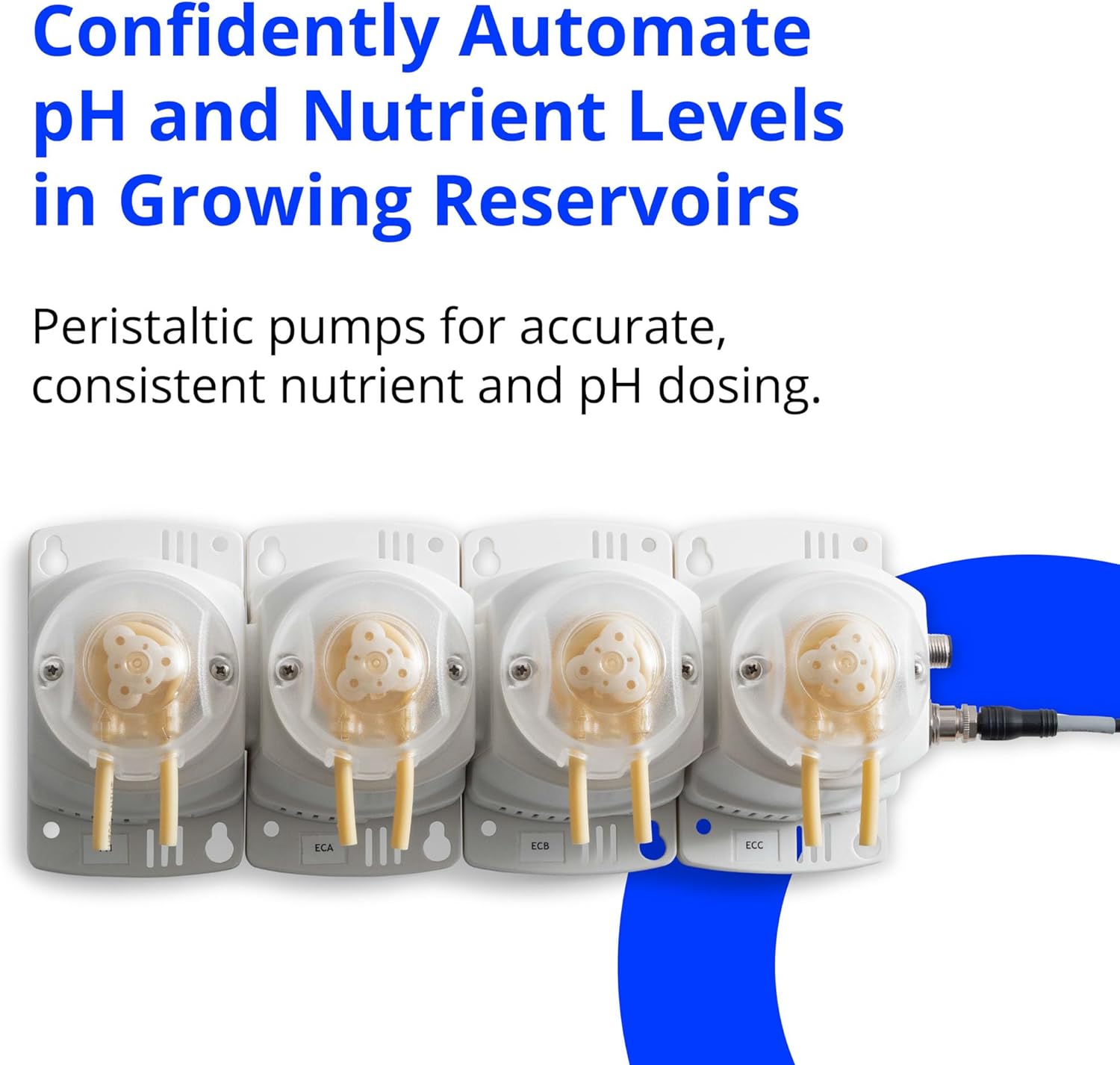

• Four independent peristaltic pump channels, each delivering 120 ml per minute with consistent output

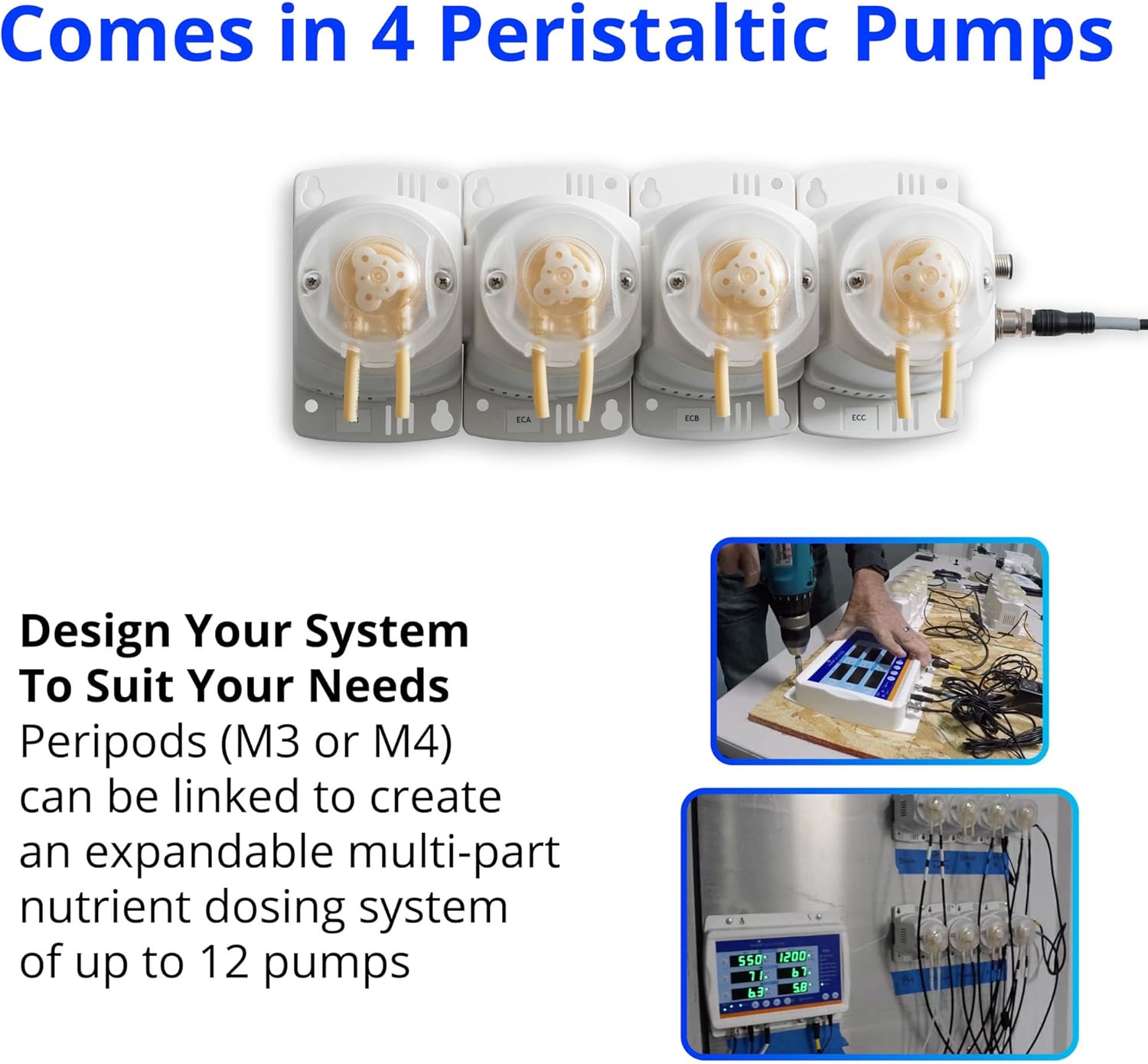

• Expandable to up to 12 dosing channels by connecting multiple M3 or M4 PeriPods
• Peristaltic pump design keeps the pump mechanism isolated from corrosive nutrient concentrates
• Compatible with optional external alarm box and sample pot for a more complete dosing setup

Best Uses for the Bluelab PeriPod M4

The Bluelab PeriPod M4 is suited to hydroponic and controlled-environment agriculture setups where reservoir chemistry needs to be maintained automatically and consistently. The following use cases reflect how this unit performs in practice based on its documented capabilities.

• Automated pH management in recirculating systems: The PeriPod works with the Bluelab Pro Controller to dose pH up or pH down solutions in response to real-time pH drift in the reservoir, keeping levels stable without manual intervention between checks.
• Multi-part nutrient programs in large reservoirs: With four independent pump channels, the M4 can handle separate delivery lines for base nutrients, additives, and pH adjusters simultaneously. Connecting a second PeriPod expands this further for complex nutrient schedules.
• Commercial and semi-commercial greenhouse operations: Grows running multiple crop cycles or high plant counts benefit most from the consistent, controller-triggered dosing that a PeriPod provides. Reducing manual reservoir adjustments lowers labor time and minimizes dosing variability between cycles.
• Research and precision growing environments: Facilities that require repeatable nutrient delivery across batches can rely on the PeriPod’s consistent pump output to reduce batch-to-batch variation in reservoir chemistry.
• Expanding an existing Bluelab Pro Controller installation: If you’re already using a Bluelab Pro Controller and dosing manually, the PeriPod M4 is the designated add-on to automate that process without replacing any existing equipment. For growers also managing water quality, pairing with a reverse osmosis filtration system provides a consistent, low-EC source water that makes automated pH and nutrient dosing more predictable.

Bluelab PeriPod M4 vs Similar Dosing Systems

The PeriPod M4 occupies a specific niche: it is not a standalone dosing controller, but rather the pump actuator in a system where the Bluelab Pro Controller provides the measurement and decision logic. This distinction is worth understanding before comparing it to other products in this category.

Standalone auto-dosing units from other manufacturers typically combine a monitoring probe, a control unit, and peristaltic or diaphragm pumps into a single enclosure. These all-in-one systems are easier to set up for a single reservoir in a small grow, but they generally offer fewer dosing channels, less flexibility in multi-reservoir configurations, and limited options for expanding to additional dosing lines without replacing the entire unit.

The Bluelab approach separates the measurement and control functions (handled by the Pro Controller) from the pump actuation (handled by the PeriPod). This separation means you can connect multiple PeriPods to a single Pro Controller and address more dosing channels than most integrated systems support. It also means the Pro Controller can be upgraded or replaced independently of the pump hardware, and vice versa.

For growers already invested in the Bluelab Pro Controller ecosystem, the PeriPod M4 is the correct companion product. For growers starting from scratch with a single small reservoir, an all-in-one dosing system at a lower price point may be a more practical starting point — the PeriPod M4 is engineered for setups where the Pro Controller is already present or planned.

Compatibility

The Bluelab PeriPod M4 is designed to operate as a peripheral device within the Bluelab Pro Controller ecosystem. The following compatibility information is derived from the canonical product record and manufacturer documentation.

Required controller: The PeriPod M4 must be connected to a Bluelab Pro Controller to function. The Pro Controller provides the dosing trigger signals that activate the individual pump channels. The PeriPod does not operate as a standalone dosing unit.

Multi-unit chaining: Multiple PeriPods — either M3 (3-channel) or M4 (4-channel) models — can be connected to a single Bluelab Pro Controller to enable multi-dosing configurations. In a fully expanded setup, this supports up to 12 separate nutrient or pH adjuster lines from a single controller.

Dosing solutions: The PeriPod is designed to pump pH adjustment solutions (pH up and pH down) and concentrated nutrient stock solutions. As with any peristaltic dosing system, the tubing should be selected to be chemically compatible with the specific concentrates being used.

Optional accessories: The external alarm box and sample pot accessories sold by Bluelab are compatible with this unit and can be added to build out a more complete reservoir monitoring setup. If you are also testing and calibrating EC levels in your reservoir, a compatible EC calibration solution such as the Apera Grostar EC calibration kit is a useful addition to your maintenance kit.

Usage Guidelines

The PeriPod M4 operates under the direction of the Bluelab Pro Controller, so the day-to-day usage process centers on correctly configuring the controller’s dosing triggers and maintaining the pump hardware and tubing over time. The following guidelines apply to typical reservoir dosing applications.

Pump channel assignment: Each of the four channels on the M4 is connected to a separate dosing line. Assign channels based on the substances being dosed — for example, one channel for pH down solution, one for pH up, and the remaining two for nutrient concentrates. Label each tube clearly to avoid accidental cross-dosing during maintenance.

Dosing trigger settings: Dosing triggers (target pH set points, EC thresholds, and timing) are configured at the Bluelab Pro Controller, not on the PeriPod itself. Consult the Pro Controller documentation for the appropriate set point ranges for your crop and growth stage. Start with conservative dose volumes and observe the reservoir response before increasing dose size or frequency.

Tubing inspection and replacement: Peristaltic pump tubing degrades over time due to the repeated compression of the pump head. Inspect tubing regularly for cracking, softening, or discoloration. Replace tubing on a preventive schedule (typically every 3–6 months under continuous operation, or as recommended in the Bluelab maintenance documentation) rather than waiting for a failure.

Priming the pumps: Before each new dosing solution is connected, prime the tubing to remove air pockets that could cause inaccurate dose volumes. Run the pump manually (via the Pro Controller) until solution flows consistently from the outlet end of each tube before placing the outlet in the reservoir.

Reservoir volume and dose size: Larger reservoirs require correspondingly larger dose volumes to achieve the same change in pH or EC. The 120 ml/min flow rate per channel provides sufficient throughput for most commercial-scale reservoirs, but verify that the configured dose time and volume are appropriate for your reservoir size and current set point deviation.

How to Set Up the Bluelab PeriPod M4

The following steps describe a standard initial setup for the PeriPod M4 in a recirculating hydroponic system. These steps are derived from the product’s documented function and standard peristaltic dosing installation practice. Always refer to the Bluelab Pro Controller and PeriPod documentation for model-specific wiring and configuration details.

1. Position the PeriPod unit near the reservoir, at a height where the pump outlet tubing can reach the reservoir without excessive slack. Keep the unit away from direct water exposure and elevated humidity where possible.
2. Connect the PeriPod to the Bluelab Pro Controller using the appropriate communication cable. Verify the connection is secure before powering on either unit. If connecting multiple PeriPods, chain them to the Pro Controller according to the wiring diagram in the Pro Controller manual.
3. Install dosing tubing on each pump channel. Thread the tubing through the pump head according to the Bluelab installation guide. Ensure the tubing is seated correctly in the pump rotor channel so the peristaltic action creates a consistent seal along the full pump head length.
4. Connect intake lines to dosing solution containers. Place the intake end of each tube in the appropriate solution container — pH down, pH up, or nutrient concentrate. Secure the tube so it reaches the bottom of the container and will not be pulled out during operation.
5. Route outlet tubing to the reservoir. Direct the outlet end of each tube into the reservoir or a mixing chamber if used. Position the outlet below the waterline to prevent siphoning when the pump is not running and to promote even mixing of dosed solution.
6. Prime each pump channel. Using the manual run function on the Bluelab Pro Controller, run each pump channel individually until solution flows consistently from the outlet end with no air bubbles. This ensures accurate dose volumes from the first automated dosing cycle.
7. Configure dosing set points on the Bluelab Pro Controller. Set the target pH range and EC thresholds, along with dose volumes and lockout intervals, according to the crop requirements and reservoir volume. Start conservatively — smaller dose volumes and longer intervals — and adjust based on observed reservoir response over the first 24–48 hours.
8. Monitor the first automated dosing cycles. Check the reservoir pH and EC readings after the first automated dose to confirm the system is delivering the expected change. Adjust set points or dose volumes at the Pro Controller if the observed change is larger or smaller than expected.
