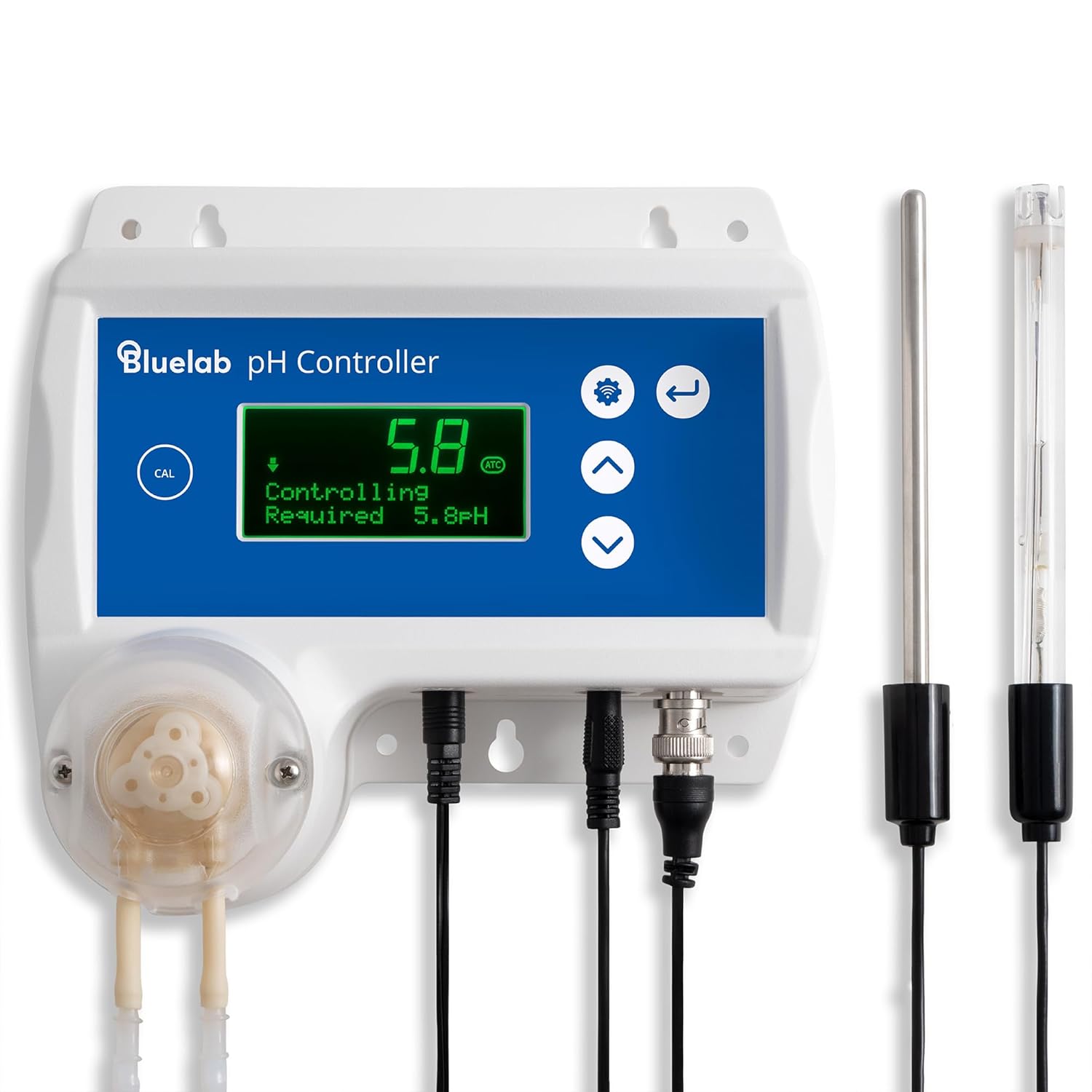

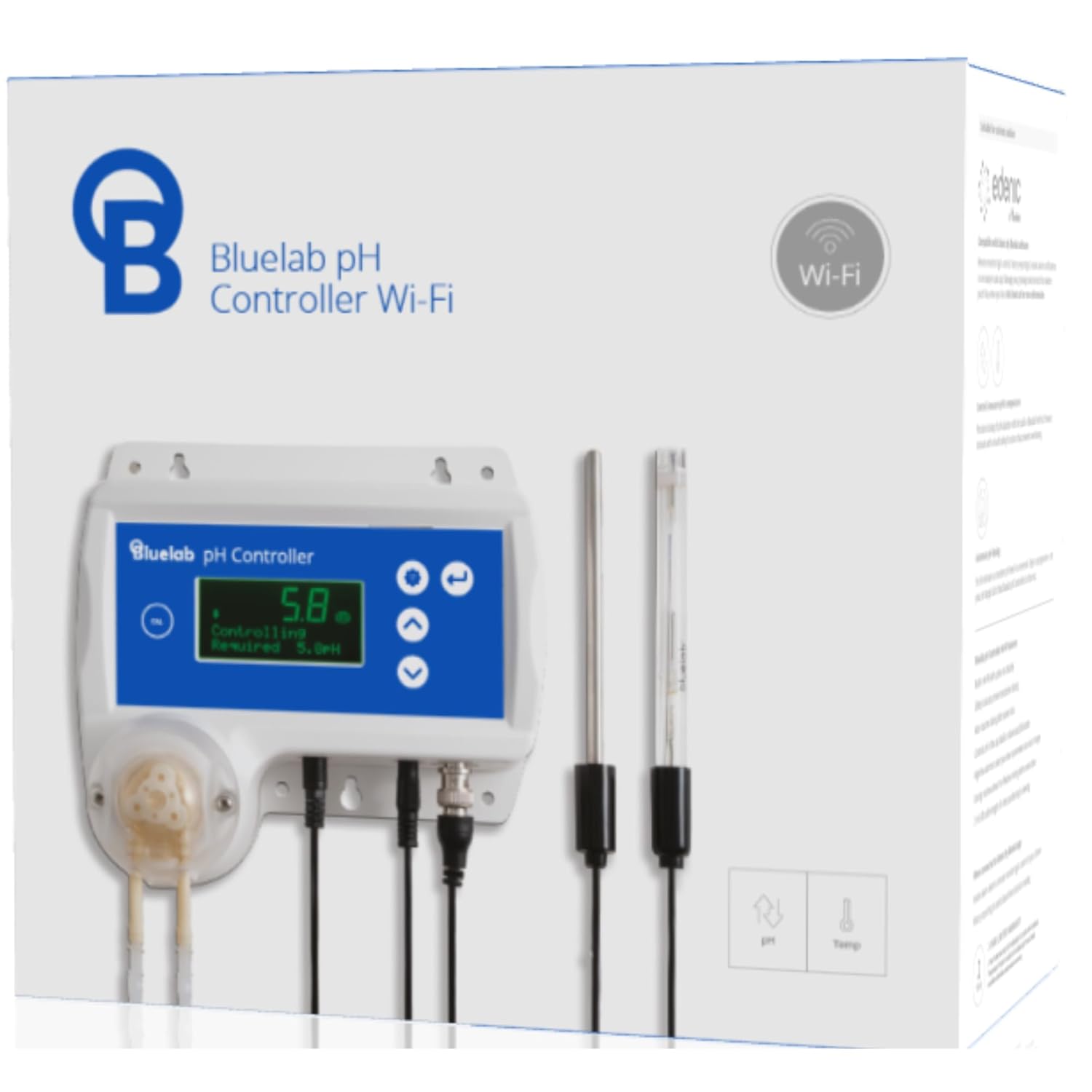

Bluelab pH Controller

The Bluelab pH Controller is an automated pH dosing unit with built-in Wi-Fi that monitors and adjusts your reservoir pH around the clock. A variable-speed peristaltic pump doses pH-up or pH-down solution directly into your reservoir, while safety lockouts, high/low alarms, and auto-resume after power loss keep your system running without constant manual attention. Remote monitoring and control is available from any mobile device via Edenic.io.

Bluelab pH Controller Specifications

Specifications are drawn from the product canonical data and manufacturer documentation. Weight is from supplier attributes; pump and connectivity specs are from the product description.

Specification	Value
Brand	Bluelab (distributed by Sunlight Supply)
pH Dosing Direction	pH up (alkali) or pH down (acid) — one direction per configuration
Pump Type	Peristaltic, variable speed; maximum flow rate 120 ml/min
Connectivity	Built-in Wi-Fi (disableable); mobile monitoring via Edenic.io
Cable Length	2 m / 6 ft
Alarms	Configurable high and low pH alarms
Safety Features	Safety lockouts prevent excessive dosing; auto-resume after power loss
Dosing Routine	Built-in pause between doses allows solution to mix before re-checking
Weight	5.0 lb (2.27 kg)

Why Choose the Bluelab pH Controller

Maintaining stable reservoir pH is one of the most time-intensive tasks in hydroponic growing. Even small swings outside the target window reduce nutrient uptake and slow plant growth. Manual pH checking and dosing works for a single small reservoir, but it becomes impractical in larger or multi-reservoir systems, or any situation where you can’t be physically present several times a day. The Bluelab pH Controller addresses this by automating the entire monitoring and dosing cycle.

The built-in peristaltic pump delivers precise, measured doses of pH adjuster fluid at variable speed — up to 120 ml/min — without exposing the pump mechanism to the corrosive chemicals it’s moving. The dosing routine introduces a pause between doses to allow the adjuster to mix through the reservoir before the probe takes the next reading. This prevents the common problem of over-correction that occurs when a controller doses against an unmixed, locally concentrated reading.

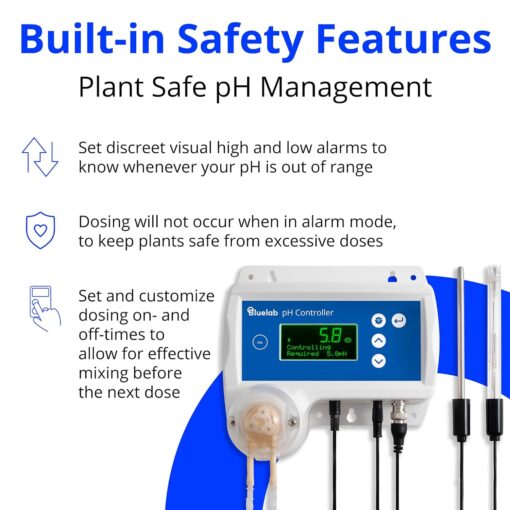

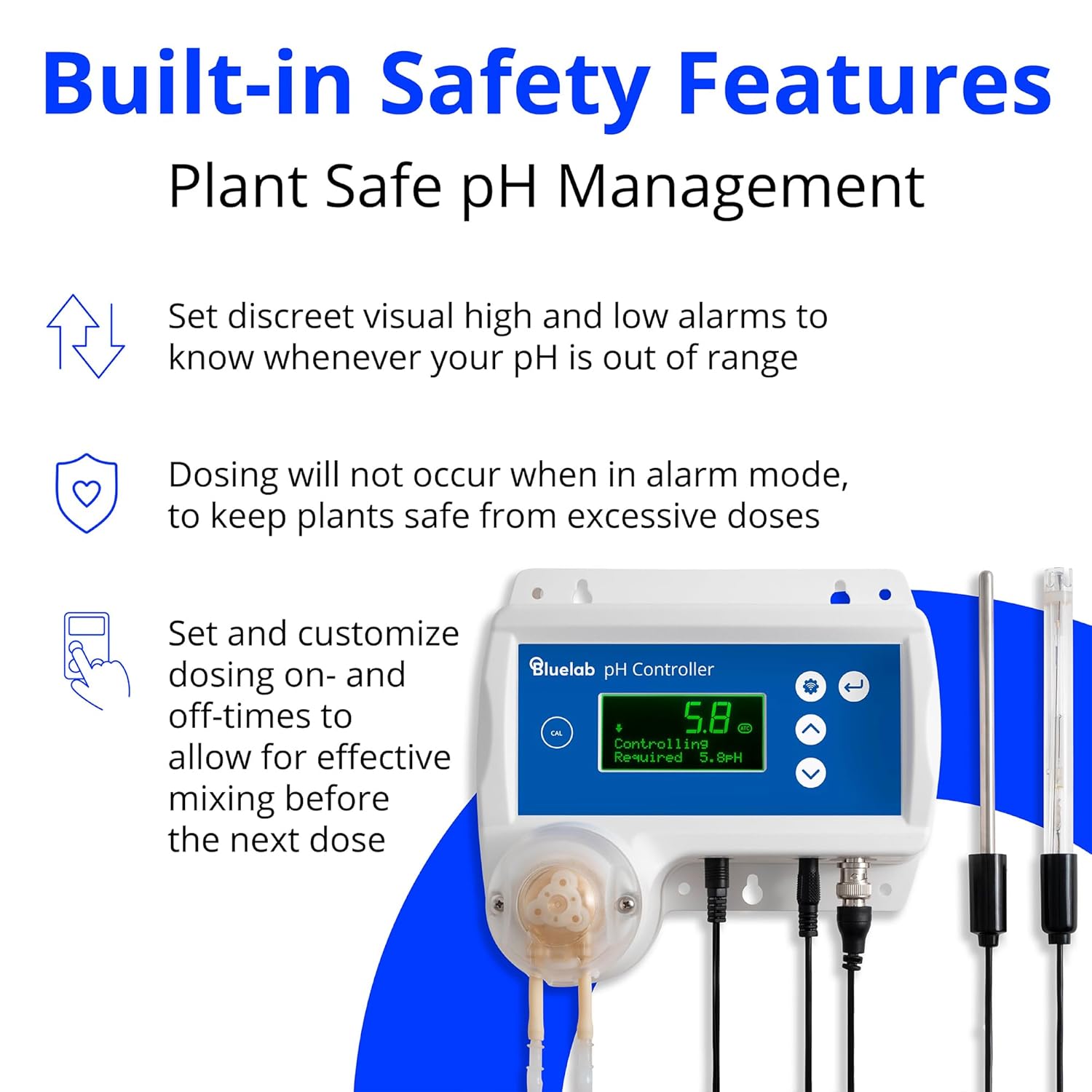

Safety lockouts place a hard ceiling on how much pH adjuster can be delivered in a given cycle. If the controller reaches that limit without achieving the target, it stops and triggers an alarm rather than continuing to dose into a potentially malfunctioning system. Auto-resume after power loss means the unit picks up where it left off when power is restored, which is important during outages in regions with unstable grid power or where grow timers cause frequent cycling.

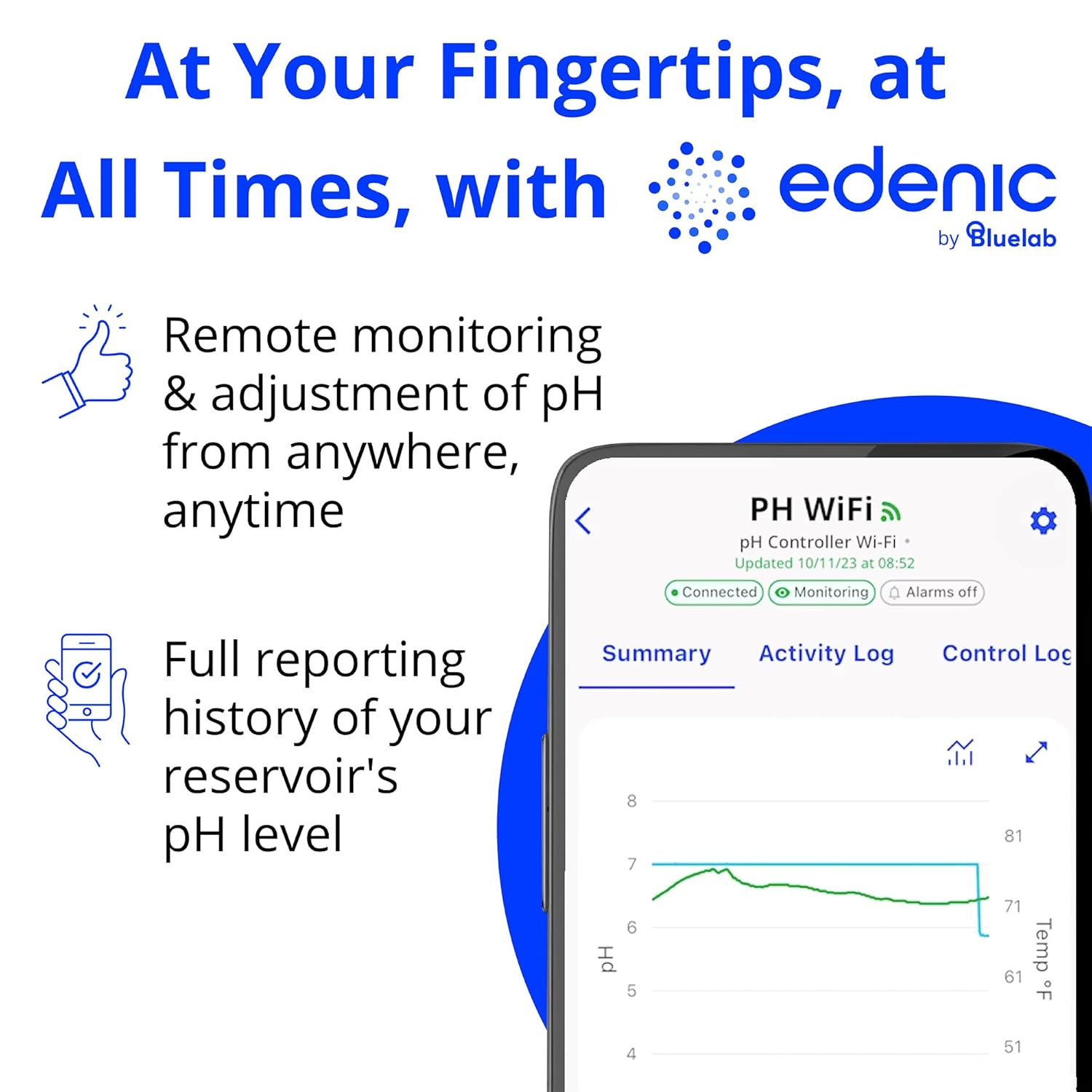

The built-in Wi-Fi connects the controller to the Edenic.io platform, where you can view current pH readings, receive alarm notifications, and adjust set points from your phone. Wi-Fi can be disabled entirely if you’re operating in a shielded room or prefer to run the controller as a standalone unit without network connectivity.

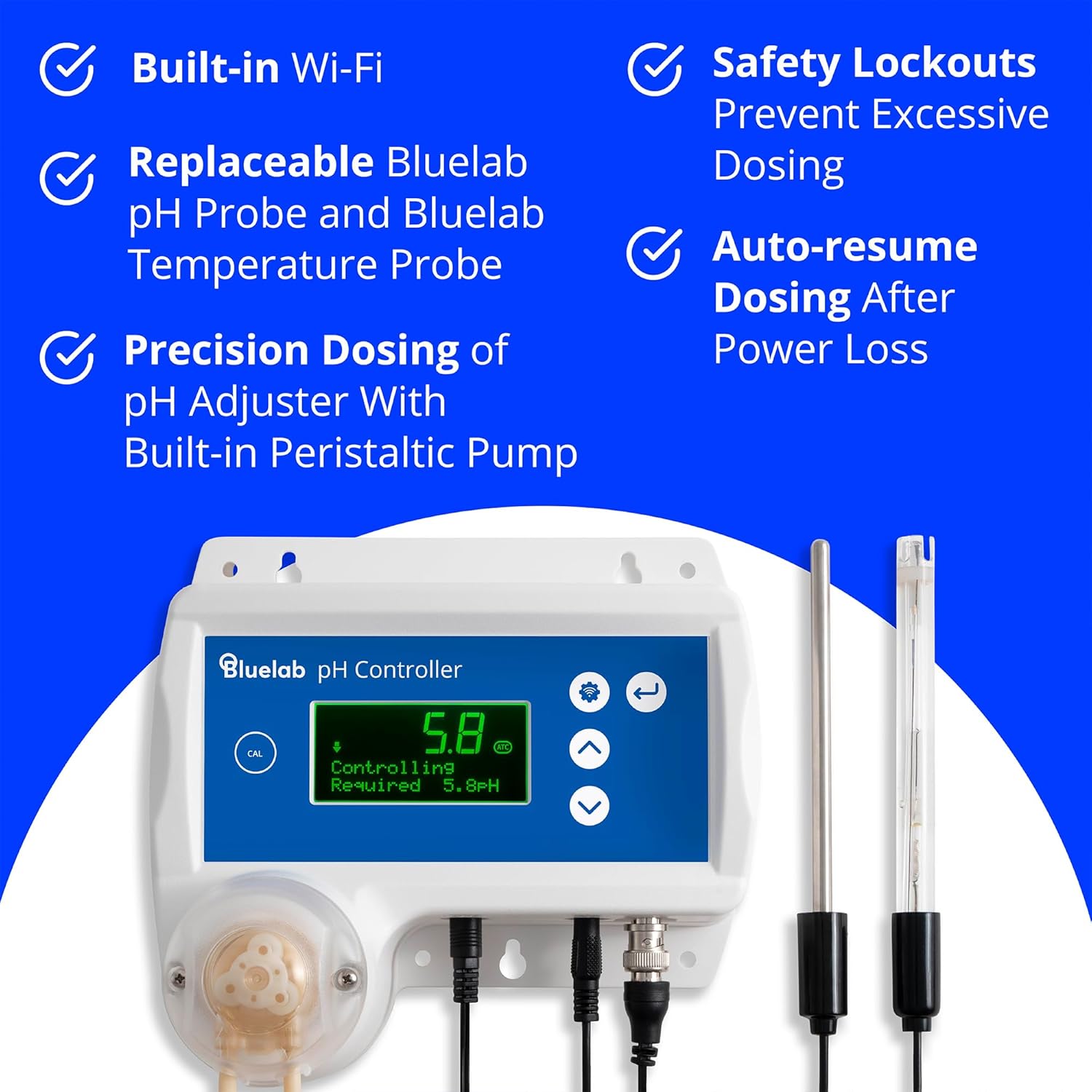

• Variable-speed peristaltic pump (max 120 ml/min) delivers precise, repeatable doses without contacting moving parts
• Built-in dosing pause lets adjuster mix fully before the next reading, avoiding over-correction
• Safety lockouts cap total dosing per cycle; auto-resume restarts monitoring after power is restored
• High/low pH alarms notify you when the reservoir drifts outside your configured range
• Built-in Wi-Fi with Edenic.io support enables remote monitoring and control from any mobile device
• Wi-Fi can be disabled for growers who prefer standalone operation or work in RF-sensitive environments

Best Uses for the Bluelab pH Controller

The Bluelab pH Controller is suited to growing environments where pH stability directly affects yield and where manual daily monitoring is impractical. The following use cases represent typical deployments based on the product’s automated dosing and remote monitoring capabilities.

• Deep water culture (DWC) and recirculating systems: Recirculating reservoirs accumulate pH drift as plants uptake nutrients. An automated controller holds pH within a tight band without requiring multiple daily checks, which is especially valuable as reservoir volume increases.
• Nutrient film technique (NFT) and ebb-and-flow systems: Thin-film and flood-drain systems are sensitive to pH excursions because the root zone has little buffering capacity. Continuous automated adjustment keeps the delivered solution within spec at every feeding cycle.
• Commercial and multi-site operations: In facilities running multiple reservoirs, manually checking each one multiple times daily is not feasible. The Edenic.io integration centralizes pH monitoring across controllers so a single operator can oversee an entire facility remotely.
• Grow rooms with limited access: In sealed or environmentally controlled rooms where frequent entry is undesirable — to maintain CO2 levels or temperature — automated pH control reduces the need to open the room for routine adjustments.
• Unattended or intermittently staffed grows: For operations that are not staffed around the clock, the alarm system and remote notifications provide early warning of pH excursions that would otherwise go undetected until the next staff visit.
• Growers transitioning from manual to automated management: The controller works alongside existing water treatment and filtration equipment. Pairing it with a quality water source — for example, a reverse osmosis system that reduces source-water variability — reduces the correction load on the controller and extends the interval between adjuster refills.

Bluelab pH Controller vs Similar Products

Automated pH controllers fall into two broad categories: single-direction dosers (pH up only or pH down only, configured at setup) and bidirectional units that can dose in either direction from a single reservoir. The Bluelab pH Controller is a single-direction unit: you configure it to dose either pH up or pH down depending on whether your source water tends to run acidic or alkaline. Most recirculating hydroponic systems using neutral or slightly alkaline municipal water will be configured for pH-down dosing. Growers using very soft or acidic RO water may need pH-up dosing instead.

Compared to basic analog pH dosing pumps, the Bluelab pH Controller adds Wi-Fi remote monitoring, configurable high/low alarms, variable pump speed, and the mixing pause between doses. Basic dosers typically run at a fixed pump rate with no alarm output and no network connectivity. The trade-off is complexity: the Bluelab unit requires initial calibration of the probe, configuration of set point and alarm thresholds, and periodic probe maintenance. Growers who need a simple, wired-only dosing pump for a small single reservoir may find a basic unit adequate. Growers managing larger reservoirs, multiple zones, or remote locations will benefit from the Bluelab’s alarm and connectivity features.

If your goal is to monitor pH and EC together in a single instrument rather than automate dosing, a combination meter such as a handheld pen or a bench-top monitor serves a different function. The Bluelab pH Controller is specifically an automated dosing device — it continuously monitors and actively adjusts, rather than simply displaying a reading for the operator to act on manually.

Compatibility

The Bluelab pH Controller is designed for use with liquid pH adjuster solutions (pH up and pH down). The built-in peristaltic pump is compatible with the corrosive acid and base solutions used in hydroponic pH management; the pump tubing is the consumable component that contacts the fluid and should be replaced on the manufacturer’s recommended schedule.

The 2-m/6-ft cable length on the probe and dose lines accommodates most standard reservoir configurations. The unit should be positioned so that the probe sits in a representative area of the reservoir — not directly in the return stream or in a stagnant corner — to get an accurate reading. For large reservoirs with limited circulation, additional aeration or circulation pumps improve the accuracy of the pH reading and the effectiveness of each dose. A quality air pump provides the circulation needed to distribute pH adjuster evenly after each dose.

The Edenic.io platform is required for remote monitoring and control features. Wi-Fi connectivity uses standard 2.4 GHz 802.11 b/g/n networks. The controller can operate in offline mode (Wi-Fi disabled) as a standalone automated dosing unit without any network dependency. Confirm voltage and electrical requirements with the manufacturer specification sheet for your region, as electrical specs are not listed in the available product data.

The Bluelab pH Controller works within a complete water management setup. If you are also monitoring EC, a separate EC probe or combination instrument is needed — this unit monitors and adjusts pH only. For calibration of EC instruments used alongside this controller, the Apera GroStar EC calibration kit is a compatible calibration solution for maintaining the accuracy of your conductivity measurements.

Usage Guidelines

The following guidelines are derived from the product description. Consult the full Bluelab documentation for detailed calibration procedures, set-point configuration, and probe maintenance schedules.

Set-point configuration: Configure the target pH set point for your crop and growth stage. Most hydroponic crops perform well in the 5.5–6.5 pH range, with 5.8–6.2 being a common target for general vegetative and flowering growth. Set the high and low alarm thresholds slightly outside the target range so the controller alerts you if dosing is unable to maintain the window — for example, set alarms at 0.3–0.5 pH units above and below your target.

Dosing direction: Determine in advance whether your system needs pH-up or pH-down dosing based on your source water and nutrient solution. Most growers using municipal water with standard nutrients will configure for pH-down (acid) dosing. RO water users may need pH-up (alkali) dosing. The controller doses in one direction per configuration.

Mixing pause: The built-in dosing routine introduces a pause between doses to allow the adjuster to circulate and mix before the probe takes the next reading. Do not disable or shorten this pause, as doing so can cause over-dosing in reservoirs with slow circulation. If pH is not stabilizing within the expected number of dose cycles, improve reservoir circulation before increasing dose volume.

Safety lockout: The safety lockout prevents the controller from dosing beyond a configured maximum volume per cycle. If the lockout triggers repeatedly, investigate the underlying cause (probe fouling, depleted adjuster reservoir, or a system issue causing rapid pH drift) rather than simply raising the lockout limit.

Probe maintenance: pH probes require periodic calibration with certified calibration solutions and storage in probe storage solution when not in active use. Follow Bluelab’s recommended calibration interval. A drifting or fouled probe is the most common source of inaccurate automated dosing.

How to Set Up the Bluelab pH Controller

The following setup sequence is derived from standard automated pH controller installation practice for the product type. Consult the included Bluelab documentation for product-specific wiring diagrams and calibration procedures before starting.

1. Prepare your pH adjuster supply: Fill the adjuster reservoir with the appropriate pH-up or pH-down solution. Confirm the dose line tubing from the adjuster bottle to the controller pump is free of air pockets and primed before connecting to the reservoir.
2. Mount the controller unit: Position the controller where the 2-m/6-ft probe cable reaches the reservoir and the display is readable. The unit should be kept away from standing water and at a height that prevents siphon back-flow into the adjuster supply if the tubing is ever disconnected under pressure.
3. Install the pH probe: Submerge the probe in the reservoir per the cable length and positioning guidelines. Ensure the probe tip is in the active circulation zone of the reservoir, not in a stagnant area or directly in a pump outflow that could cause turbulence-related reading errors.
4. Calibrate the probe: Using Bluelab-recommended calibration solutions, perform a two-point calibration at pH 4.0 and pH 7.0 (or as specified in your manual) before initial use. Record the calibration date; recalibrate on the manufacturer’s recommended schedule.
5. Configure set points and alarms: Enter your target pH, dosing direction, mixing pause duration, safety lockout volume, and high/low alarm thresholds via the controller interface.
6. Connect to Wi-Fi (optional): If using remote monitoring, connect the controller to your 2.4 GHz Wi-Fi network and link it to your Edenic.io account. Verify that alarm notifications are reaching your mobile device before relying on remote alerts.
7. Verify initial operation: Observe the first several dosing cycles to confirm the pump is delivering fluid, the mixing pause is functioning, and pH is trending toward the target set point. Confirm the safety lockout threshold is appropriate for your reservoir volume.
