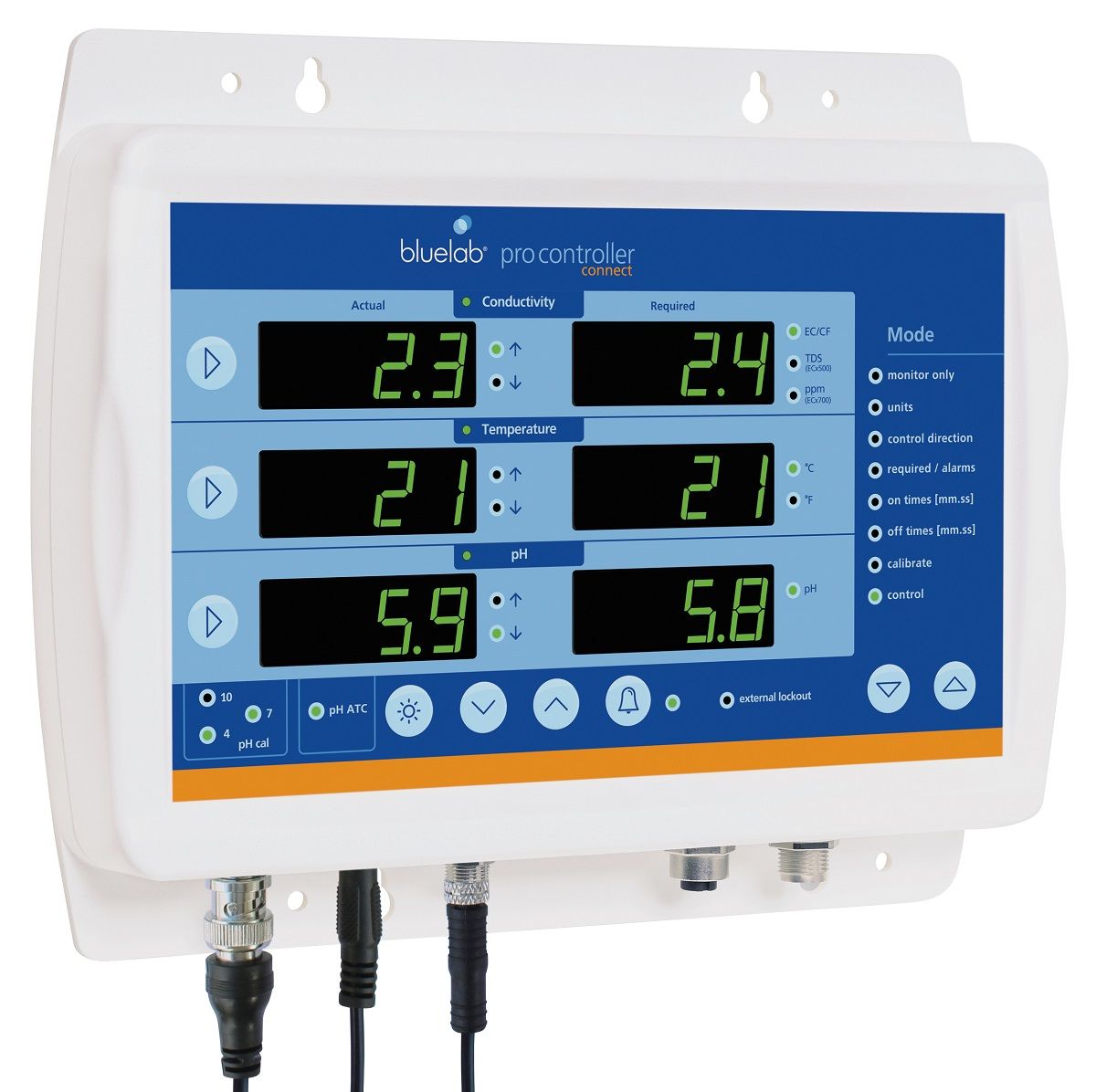

Bluelab Pro Controller

The Bluelab Pro Controller is an automated pH and nutrient controller that gives you full control of reservoir pH, conductivity (EC), and temperature from one device. When paired with a dosing system, it automatically adjusts pH and nutrients as your plants feed, keeping levels within the range you set. Remote monitoring and data logging are handled through Bluelab Connect Software and Apps, so you can watch your system in real time from a computer.

Bluelab Pro Controller Specifications

Specifications are drawn from manufacturer documentation and the canonical product record. Weight is from the supplier attribute record; all other values are sourced from the canonical product description.

Specification	Value
Brand	Bluelab
Model / SKU	BCTPRC02
Parameters Monitored	pH, Conductivity (EC), Temperature
Probe Cable Length	6.5 ft (approx. 2 m)
Display / Indicator	Bright plant-safe green LED, adjustable brightness
Connectivity	Bluelab Connect Software and Apps (PC / mobile)
Compatible Accessories	Bluelab PeriPod, PowerPod (optional), Alarm Box (optional), Sample Pot (optional)
Weight	3.803 lb
Safety Features	High/low alarm lockouts, dosing lockouts, auto-resume after power loss

Why Choose Bluelab Pro Controller

The Bluelab Pro Controller is designed for growers who want their reservoir chemistry managed automatically rather than manually checked and adjusted several times a day. Here is what distinguishes it from a basic meter or monitor:

• Simultaneous pH, EC, and temperature control in one unit. Rather than running separate meters and dosing devices, the Pro Controller ties pH management, conductivity adjustment, and temperature monitoring into a single interface. You set a target range for each parameter; the controller manages the rest when connected to a compatible dosing system.
• Automatic dosing that responds to plant feeding. As plants consume nutrients and pH drifts, the system adjusts dosing to bring values back into your set range. This reduces the risk of nutrient deficiency or lockout caused by unattended pH and EC swings between manual checks.
• Remote monitoring and data logging via Bluelab Connect. The Bluelab Connect Software and Apps let you monitor your reservoir parameters in real time from a computer. Data logging gives you a historical record to review trends, troubleshoot problems, and verify that conditions stayed within range overnight or during periods away from the grow room.
• Dosing lockouts and auto-resume protect your crop. High and low alarm control lockouts prevent the controller from over-correcting if a probe reading is erratic or a pump runs too long. If power is lost and restored, the controller resumes dosing automatically without requiring manual intervention to restart the cycle.
• Simple pH calibration with on-screen instructions. The menu walks you through the calibration process step by step on the unit itself. You do not need to reference a separate manual to recalibrate after probe maintenance.
• Expandable with optional accessories. The system is designed to grow with your setup. Pair it with a Bluelab PeriPod for peristaltic dosing, add a PowerPod for power switching, connect an Alarm Box for audible alerts, or add a Sample Pot for flow-through sampling without disturbing your reservoir.

Best Uses for Bluelab Pro Controller

The Pro Controller is best suited to reservoir-based systems where consistent pH and EC management is critical and manual adjustment is not practical at scale or frequency. Typical use cases include:

• Recirculating deep water culture (RDWC) and NFT systems. These systems have a shared reservoir that feeds multiple sites. A single pH or EC excursion affects every plant in the loop. Automated dosing from the Pro Controller keeps the reservoir within range continuously, which is particularly important during rapid vegetative growth when nutrient uptake and pH drift accelerate.
• Commercial and semi-commercial indoor grows. Facilities running multiple reservoirs or operating lights-on/lights-off cycles benefit from a controller that can respond to changes at any hour without requiring a technician to be present. The data logging function also supports record-keeping for commercial operations.
• High-value crop production where precision matters. Crops that are sensitive to pH fluctuations — strawberries, herbs, leafy greens, and certain flowering plants — perform better when pH stays within a narrow band. The Pro Controller’s alarm lockout system provides a safety layer that a manual test-and-dose workflow cannot match.
• Growers transitioning from manual to automated nutrient management. The Pro Controller’s on-screen menu, on-screen calibration prompts, and Bluelab Connect app make it accessible to growers who are adding automation for the first time. You can start with the core pH and EC dosing functions and add optional accessories as your system expands. Consider pairing it with a reverse osmosis system to supply consistent, low-EC source water to the reservoir, which makes automated dosing more predictable and repeatable.
• Remote or off-site monitoring scenarios. The Bluelab Connect Software lets you check reservoir conditions from outside the grow room. Growers who need to step away from the facility for extended periods can review data logs and receive alerts rather than relying on someone on-site to check parameters manually.

Bluelab Pro Controller vs Similar Products

The Bluelab Pro Controller competes in the mid-to-high range of automated reservoir controllers. A key distinction between it and simpler pH-only controllers is that the Pro Controller monitors and manages pH, EC, and temperature together. A pH-only dosing system tells you nothing about nutrient strength or temperature drift, which means you still need to manually test and adjust EC and review temperature. The Pro Controller centralizes all three measurements.

Compared to basic handheld meters — even high-quality combination pH/EC pens — the Pro Controller adds the automated dosing control loop and the data logging layer. A handheld meter requires you to test, interpret, and manually dose. The Pro Controller removes the manual dose step for routine corrections. If you are using a handheld EC pen such as the Apera GroStar EC electrode as part of a manual testing workflow, the Pro Controller represents the next step: moving from measuring to automated management.

For growers evaluating entry-level pH controllers, the key trade-off with the Pro Controller is cost versus capability. Entry-level single-parameter pH controllers are significantly less expensive but do not log data, do not manage EC, and typically lack the alarm lockout and auto-resume features that prevent damage from dosing errors. The Pro Controller is priced for operations where a reservoir chemistry problem has meaningful consequences — crop loss, contamination, or yield reduction — that justify the upfront investment in automation.

Compatibility

The Bluelab Pro Controller is designed to work within the Bluelab ecosystem of accessories. Compatibility notes based on the canonical product record:

• Dosing pump: The controller requires a compatible dosing system to perform active pH and EC adjustments. The Bluelab PeriPod is the primary supported dosing pump for this controller. Without a dosing pump connected, the unit functions as a monitor and data logger only.
• Optional accessories: The PowerPod adds power switching capability. The Alarm Box provides audible alarm output. The Sample Pot enables flow-through reservoir sampling. All three are optional and connect to the Pro Controller as add-ons.
• Bluelab Connect Software and Apps: Required for remote monitoring and data logging. Bluelab Connect is available for PC and supports data export for record-keeping. Confirm current supported operating system versions with Bluelab before purchasing if software compatibility is a requirement.
• Air supply: Reservoirs managed by automated dosing systems benefit from consistent aeration to ensure thorough mixing after nutrient or pH solution is injected. An air pump paired with air stones in the reservoir helps homogenize solution quickly after dosing events, improving probe reading accuracy and preventing localized concentration gradients.
• Water source: Automated dosing works most predictably when source water EC is low and stable. Variable tap water quality can require frequent recalibration of dosing targets. A reverse osmosis filtration system on the inlet line reduces source water variability and simplifies the EC management task the Pro Controller handles.
• EC calibration standards: The conductivity probe will require periodic calibration. Ensure you have compatible calibration solution available. The Apera GroStar EC Calibration Kit (2.77 EC) is one option for maintaining probe accuracy if you are cross-checking readings with a secondary instrument.

Usage Guidelines

Operating the Bluelab Pro Controller effectively involves three ongoing tasks: setting your target ranges, maintaining the probes, and reviewing data logs. The following guidelines are based on how the controller functions as described in the canonical product record.

Setting target ranges: Use the on-screen menu to program your desired pH and EC target ranges for the current growth stage. Plants generally have different optimal pH and EC windows during vegetative growth versus flowering. Set your high and low alarm thresholds to a range that triggers a response before conditions move outside the acceptable window for your crop, not at the outer edge of tolerance.

Probe maintenance and calibration: The pH probe will require regular calibration — typically every one to four weeks depending on use intensity and solution chemistry. The Pro Controller includes on-screen calibration instructions to guide you through the process. Keep pH calibration solutions (pH 4.0 and pH 7.0 are standard reference points) on hand. The conductivity probe also requires calibration using a reference standard at an appropriate EC value for your target range. Clean probes according to Bluelab’s maintenance schedule to preserve accuracy.

Alarm lockouts: The high and low alarm control lockouts are designed to prevent the system from dosing beyond a defined boundary. If the controller reaches a lockout condition — for example, if it has dosed repeatedly without bringing pH into range — it will stop dosing and trigger an alert. This is a normal safety mechanism, not a failure. Investigate the root cause (probe fouling, depleted solution, a blocked dosing line) before resetting the lockout and resuming.

Power-loss recovery: The auto-resume feature means the controller will return to active dosing after a power interruption without manual intervention. Verify after any power event that probe readings look correct and that dosing solution reservoirs are adequately stocked.

Data log review: Bluelab Connect logs pH, EC, and temperature over time. Review the logs regularly to identify trends — gradual pH drift in one direction, EC creep between top-ups, or temperature spikes during peak ambient heat periods. Trends visible in the data log often signal maintenance needs (probe recalibration, nutrient solution replacement, reservoir top-up) before they develop into crop problems.

How to Set Up the Bluelab Pro Controller

The following setup steps are based on the functions described in the canonical product record. Consult the included documentation and the Bluelab website for step-by-step wiring diagrams and specific configuration instructions for your accessory combination.

1. Position the controller unit. Mount or place the Bluelab Pro Controller in a location where the probe cable (6.5 ft) can reach the reservoir without strain. Keep the unit away from direct water splash and in a position where you can read the LED display easily during operation.

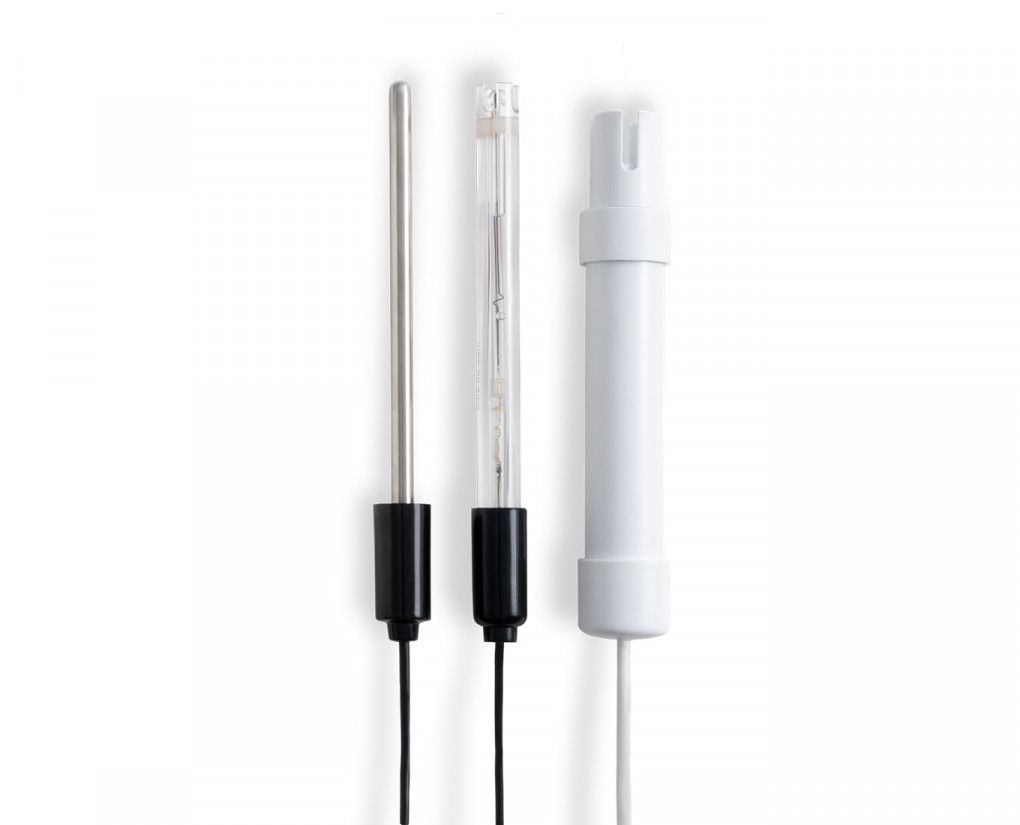

2. Connect the probes to the reservoir. Route the pH and conductivity/temperature probe into the reservoir. The probe should be submerged in the nutrient solution at a representative location — not directly in front of a dosing inlet or return flow, which would cause the probe to read solution that has not yet mixed with the bulk reservoir volume.
3. Connect the dosing pump (PeriPod or compatible). Follow the PeriPod wiring and tubing instructions to connect the pH-up, pH-down, and nutrient dosing lines to the Pro Controller’s output ports. Ensure dosing tubing inlets are placed in the appropriate solution containers and that outlets discharge into the reservoir or feed line as designed.
4. Install Bluelab Connect Software. Download and install the Bluelab Connect Software on a PC. Connect the Pro Controller to the computer using the appropriate cable or connection method. Verify that the software recognizes the controller before proceeding.
5. Calibrate the pH probe. Navigate to the calibration section in the on-screen menu. Follow the on-screen instructions to perform a two-point pH calibration using standard reference solutions. Allow the probe reading to stabilize at each calibration point before confirming.
6. Calibrate the conductivity probe. Perform an EC calibration using a reference standard appropriate to your target nutrient concentration range. Rinse the probe with clean water between calibration steps.
7. Set target ranges and alarm thresholds. Using the on-screen menu, enter your target pH range, EC range, and temperature range for the current growth stage. Set high and low alarm lockout values appropriate to your crop tolerance.
8. Run a dosing test. Observe the first several dosing events to confirm that the system is responding correctly — that pH corrections are moving in the right direction and that EC adjustments are within expected magnitude. Verify that probes are reading stable values between dosing events before trusting the system to operate unattended.
9. Connect optional accessories. If adding a PowerPod, Alarm Box, or Sample Pot, connect these after the core system is verified to be functioning correctly. Test each accessory per the relevant instructions before considering setup complete.
