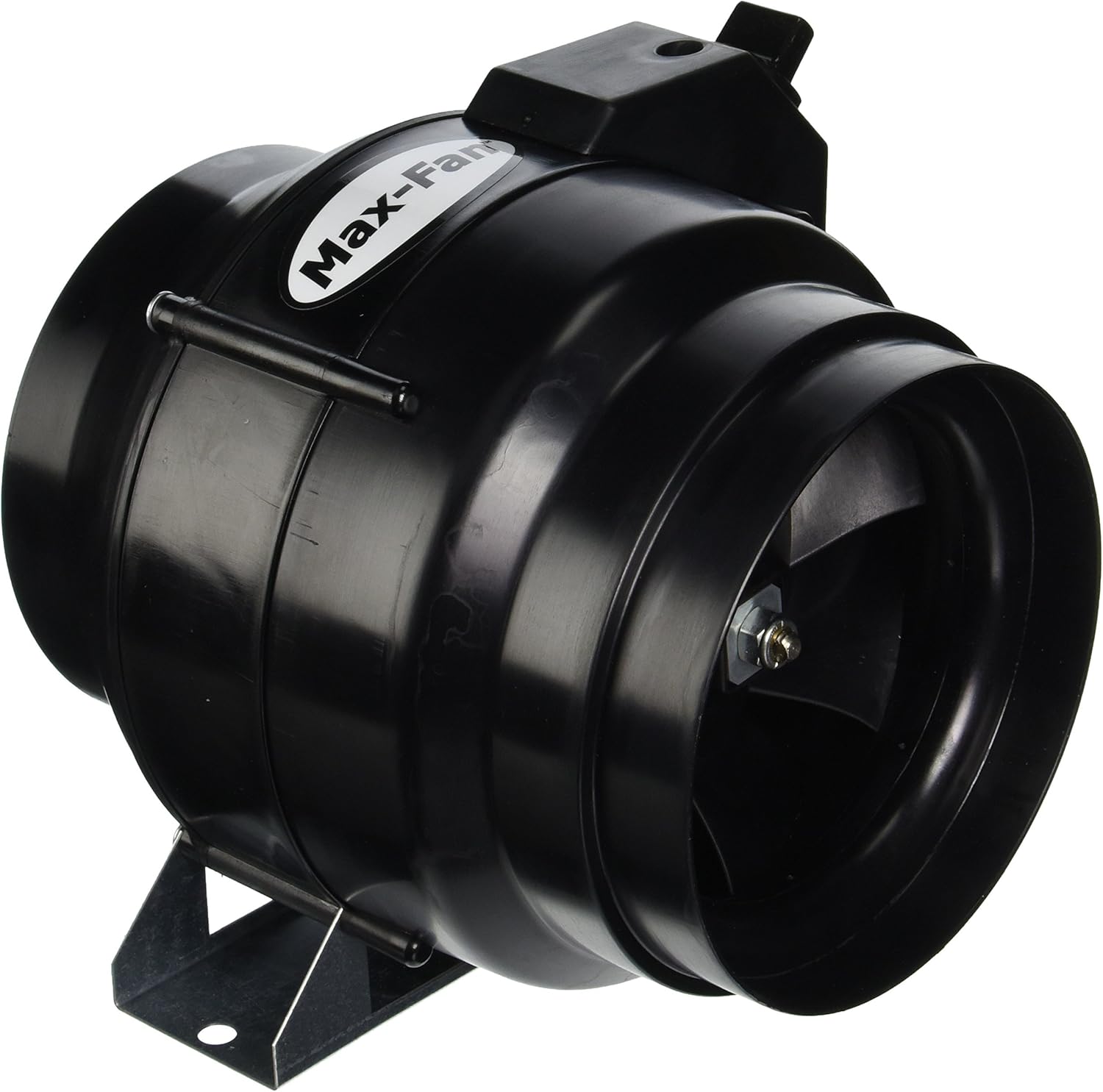

Can-Fan Max Fan – 6 in 334 CFM

The Can-Fan Max Fan (6 in, 334 CFM) is a centrifugal inline fan engineered using Computational Fluid Dynamics (CFD) — the same modeling approach used in aircraft propulsion design. The result is a 6-inch inline fan that delivers 334 CFM while consuming significantly less energy than conventional inline fans of the same diameter, making it a practical choice for controlled-environment grow rooms and ventilation setups that run continuously.

Can-Fan Max Fan 6 in Specifications

Specifications below are drawn from the canonical product data and manufacturer-published information for the Can-Fan Max Fan 6-inch model.

Specification	Value
Brand	Can Filters
Model	Max-Fan®
Duct Diameter	6 inches
Airflow Rating	334 CFM
Power Cord	8 ft, 120V pre-wired
Weight	6.09 lb
Fan Type	Inline centrifugal
Blade Design	3D impeller and stator blades, CFD-optimized
Efficiency vs. standard inline fans	50–100% higher (per manufacturer)

Why Choose the Can-Fan Max Fan

The Max-Fan® line distinguishes itself from standard inline fans through its engineering foundation. Here is what separates it from commodity alternatives:

• CFD-engineered impeller and stator: The fan’s 3D blade geometry was developed using Computational Fluid Dynamics software — the same class of engineering tools used in aircraft propulsion design. This results in airflow that is shaped and directed more efficiently through the housing, rather than simply pushed through. Both the rotating impeller and the stationary stator vanes are shaped to work together, which is less common in this product class.
• 50–100% higher efficiency than comparable inline fans: According to Can Filters, the Max-Fan® achieves 50 to 100 percent greater efficiency compared to conventional inline fans in the same size class. For a fan that runs continuously in a grow room, this reduces the energy cost per CFM delivered over the life of the equipment. In a 12/12 or 18/6 cycle running for months, that difference in draw accumulates into a meaningful reduction in operating cost.
• Pre-wired and ready to connect: The 6-inch model ships with an 8-foot, 120V power cord already attached. There is no separate wiring step; the fan plugs directly into a standard outlet or connects to a speed controller or environmental controller without modification. This matters in installations where the grower is not comfortable making electrical connections.
• Compact inline form factor: The cylindrical inline housing mounts in-line with standard 6-inch ducting. It fits into existing ventilation paths without requiring structural changes to the grow space layout. The housing can be suspended horizontally or mounted vertically with rope hangers or fan brackets.
• Established manufacturer with consistent availability: Can Filters has been producing inline fans and carbon filters for controlled-environment agriculture for many years. The Max-Fan® is a known quantity in the category with replacement parts and compatible accessories widely available through hydroponics retailers.

The core argument for the Max-Fan® over a less expensive inline fan comes down to operating cost over time. A fan that draws less power to move the same volume of air costs less to run over a full growing season. For growers running fans continuously, the efficiency premium can offset a higher upfront price within one or two grow cycles, depending on local electricity rates.

Best Uses for the Can-Fan Max Fan 6 in

The 6-inch, 334 CFM rating places this fan in the range appropriate for small to mid-size controlled-environment spaces. Typical applications include:

• Inline exhaust for grow tents (4×4 to 5×5 ft): A 334 CFM fan provides adequate air exchange in a grow tent of roughly 100–150 cubic feet, achieving multiple full air changes per minute when paired with properly sized ducting and a carbon filter. Most 4×4 tents fall in this volume range, making the 6-inch Max-Fan® a common pairing.
• Carbon filter exhaust systems: The Max-Fan® is commonly paired with a Can Filters carbon filter (or compatible third-party filter) on the intake side. The fan draws air through the filter media and exhausts it outside the grow space. Pairing with a pre-filter such as the Air Box 4 can extend the life of the carbon filter bed by capturing larger particulates before they reach the activated carbon.
• Supplemental or zone exhaust in larger rooms: In grow rooms larger than the fan’s primary capacity, the Max-Fan® can serve as a dedicated exhaust for a single canopy zone, with primary circulation handled by a larger fan or air movement system. Pairing with an Active Air HD 18-inch pedestal fan gives a larger room both directed circulation and continuous exhaust.
• Continuous-duty ventilation: Because the Max-Fan® is rated for higher efficiency than standard inline fans, it is well suited for 24-hour operation where energy consumption across a full grow cycle is a meaningful cost factor. The fan is designed to run continuously rather than as an intermittent spot fan.
• Negative-pressure odor control setups: Running the exhaust fan at a rate slightly higher than intake creates negative pressure inside the grow space, which prevents unfiltered air from leaking out through unsealed gaps. The 334 CFM output provides enough draw to maintain this differential in typical tent or small room configurations when paired with a carbon filter on the exhaust line.

Can-Fan Max Fan vs Similar Inline Fans

The Max-Fan® competes with a range of 6-inch inline fans in the 300–400 CFM class. The primary differentiator Can Filters cites is the CFD-derived blade geometry, which the manufacturer states produces 50–100% greater efficiency compared to other inline fans. In practical terms, this means the Max-Fan® moves a given volume of air per unit of power consumed more efficiently than fans built around conventional impeller profiles.

Many 6-inch inline fans in this price range use simpler blade geometries that are less expensive to manufacture but move air less efficiently — requiring more power input to achieve the same CFM, or achieving lower actual airflow than their rated figures suggest under real-world conditions such as static pressure from a loaded carbon filter. The Max-Fan® addresses this by optimizing the shape of both the impeller (the rotating element that imparts energy to air) and the stator (the stationary guide vanes that direct airflow after the impeller). Having both components CFD-shaped is less common in this product category at this price point.

For growers running fans on variable-speed controllers, a more efficient baseline fan typically responds better across its speed range: it delivers useful airflow at lower speed settings and reaches its rated output at the top of the dial without requiring the motor to work at the edge of its capacity. This is relevant for grow rooms where the fan is throttled down during cooler ambient periods and ramped up during peak heat loads or when canopy transpiration is at its highest.

The Max-Fan® is also available in larger sizes (8 in, 10 in, 12 in, 14 in) with proportionally higher CFM ratings. If you are sizing a system and are uncertain whether the 6-inch 334 CFM is the right choice, consider the volume of the grow space and the static pressure contribution of any filter and ducting before selecting a size.

Compatibility

The Can-Fan Max Fan 6 in is designed for standard 6-inch (150mm) round duct connections. It is compatible with:

• Standard 6-inch ducting: Both flexible aluminum ducting and rigid 6-inch duct connect directly to the fan housing flanges. Use standard duct clamps or foil tape to secure the connection and minimize air leakage at the joint. Leakage at the connection points reduces effective system CFM and can allow odors to escape in odor-control applications.
• 6-inch carbon filters: The fan is the pull-through companion to any 6-inch flange carbon filter, including the Can-Lite and Can-Original filter lines from Can Filters, as well as compatible filters from other manufacturers with a 6-inch flange. Always pull air through the filter rather than pushing — pulling extends filter life by distributing airflow more evenly across the media bed.
• Variable speed controllers: The fan operates on 120V and is compatible with resistive-type and triac-based fan speed controllers rated for 120V single-phase motors. Verify that the controller’s amperage rating meets or exceeds the fan’s rated draw before connecting. Do not use a speed controller rated below the fan’s draw.
• Environmental controllers: The fan can be wired through an environmental controller that switches or modulates the fan based on temperature, humidity, or CO2 readings. This is a common setup in automated grow rooms where ventilation is tied to sensor thresholds.
• 6-inch duct flanges and reducers: If the duct run requires transitioning to 4-inch or 8-inch ducting, use a standard duct reducer or increaser fitting. The fan itself does not include reducers; these are purchased separately based on your specific ducting layout.

The 8-foot, 120V power cord provides enough reach to connect to a nearby outlet, speed controller, or power strip without an extension cord in most standard grow tent or small room setups. If the installation requires a longer run, use a properly rated extension cord and ensure the total circuit load including all connected equipment is within the breaker’s capacity.

Usage Guidelines

Sizing and operating this fan correctly determines whether your ventilation system achieves adequate air exchange for the space.

Air exchange rate: A general guideline for grow rooms is to achieve a full air exchange every 1–3 minutes. For a 10×10×8 ft room (800 cubic feet), a 334 CFM fan provides roughly one full exchange every 2.4 minutes — within the typical target range. For a 4×4×7 ft grow tent (112 cubic feet), the same fan provides roughly three exchanges per minute, which is adequate airflow even when accounting for resistance from a loaded carbon filter.

Filter resistance and effective CFM: When the fan is pulling air through a carbon filter, actual delivered airflow will be lower than the rated 334 CFM due to static pressure resistance across the filter media. The degree of reduction depends on the filter size, media depth, and how loaded the filter is. As a general practice, select a fan rated for at least 20–30% more CFM than the minimum exchange requirement of the space, to maintain adequate airflow after accounting for filter resistance throughout the filter’s usable life.

Speed controller operation: Running the fan at a reduced speed during cool periods and increasing speed during peak thermal or humidity load extends motor life and reduces noise. Set the minimum speed high enough that the fan still overcomes duct and filter resistance and maintains airflow through the system. If the tent walls stop pulling inward (negative pressure lost), the fan is either at too low a speed or the filter has become too loaded to allow adequate airflow.

Maintaining negative pressure: To maintain odor containment through a carbon filter exhaust, the exhaust fan should move slightly more air than the intake. In tents with passive intake ports (open mesh ports rather than a powered intake fan), this differential is achieved automatically when the exhaust fan runs continuously. In rooms with powered intake, balance the intake CFM to be roughly 10–20% lower than exhaust CFM.

Maintenance: The fan housing and blades should be inspected periodically for dust accumulation, which can reduce airflow and add motor load over time. Light dust can be cleared with compressed air. Ensure the fan is unplugged and fully stopped before performing any cleaning or inspection.

How to Install the Can-Fan Max Fan

1. Plan your ducting path: Determine where the fan will sit in the duct run — either directly attached to the carbon filter flange (pull-through configuration) or positioned midway in the duct run (inline booster). Pull-through is standard for odor control setups: filter → fan → duct → exterior exhaust point. Sketch the path before cutting or hanging anything.
2. Mount or position the fan: The Max-Fan® can be suspended from the grow tent crossbar or ceiling structure using adjustable rope hangers or mounted to a surface with fan mounting brackets. Ensure the housing is secure and cannot vibrate against adjacent surfaces, as contact vibration is a common source of noise that is easy to prevent at installation time.
3. Connect inlet ducting: Slide a length of 6-inch flexible or rigid duct over the fan’s inlet flange (the end closest to the filter or air source). Secure with a duct clamp and seal the joint with foil tape to minimize air leakage. Even small leaks at connection points reduce effective system airflow and can compromise odor control.
4. Connect outlet ducting: Attach the outlet duct in the same manner. Route the outlet duct through the tent’s duct port or through a wall penetration to the exterior exhaust point. Keep duct runs as short and straight as practical — each bend and length of duct adds static pressure resistance that reduces effective CFM at the outlet.
5. Connect the power cord: Plug the pre-attached 8-foot, 120V cord into a speed controller, environmental controller, or directly into a grounded outlet. If using a speed controller, confirm the controller is rated for the fan’s amperage draw. Do not use a dimmer switch designed for lighting loads as a fan speed controller.
6. Test before finalizing: Run the fan at full speed briefly to verify airflow direction is correct (air should enter at the filter or intake end and exit at the exhaust end), check all duct joints for leaks by feeling for air movement at seams, and confirm the grow space begins to develop negative pressure (tent walls should pull slightly inward when all openings are sealed).
7. Set operating speed: If using a speed controller, dial down to the minimum speed that maintains adequate air exchange and negative pressure for the space. Adjust upward as heat load and plant transpiration increase during the grow cycle, particularly during the flowering stage when heat and humidity management become more demanding.
