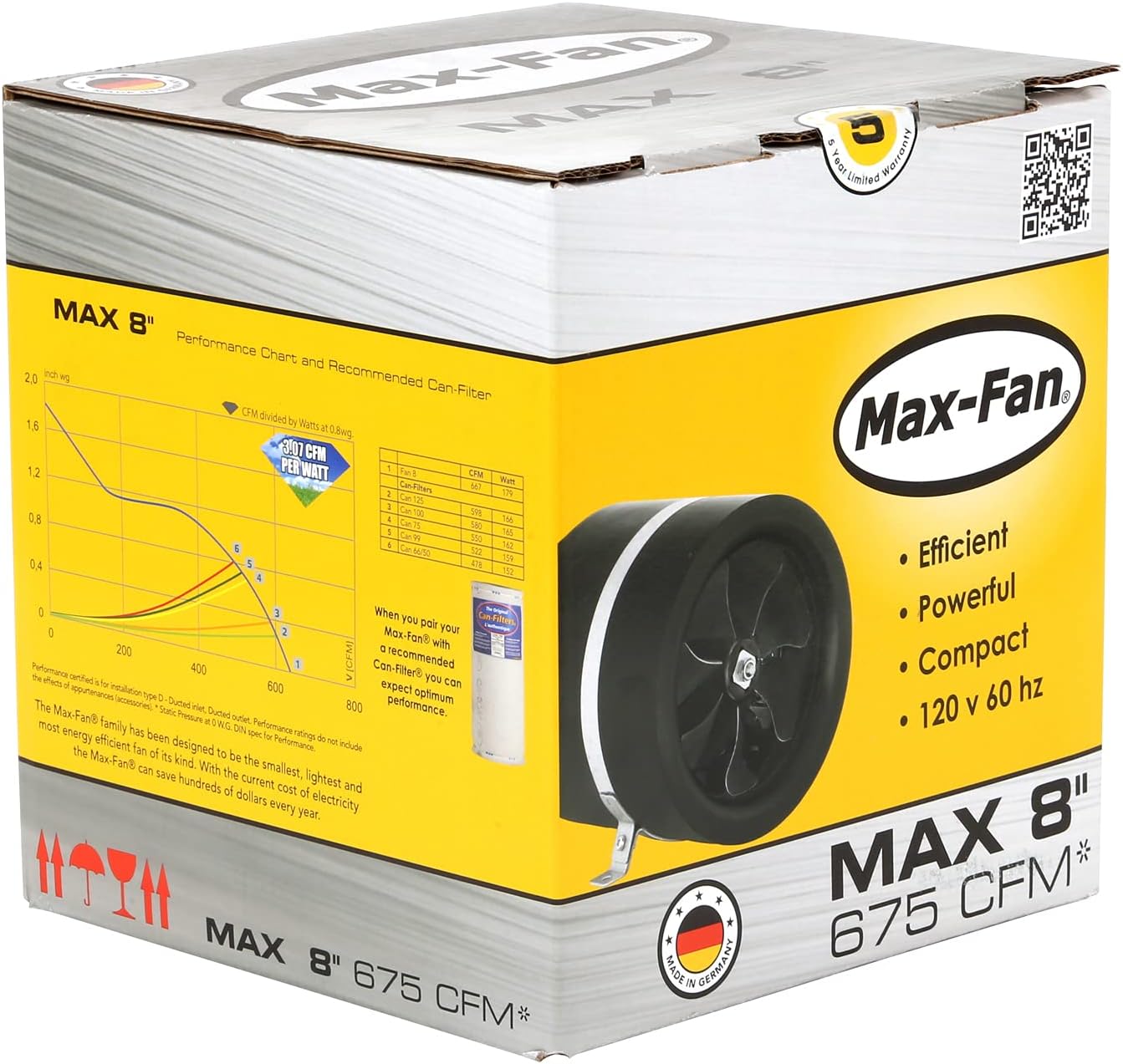

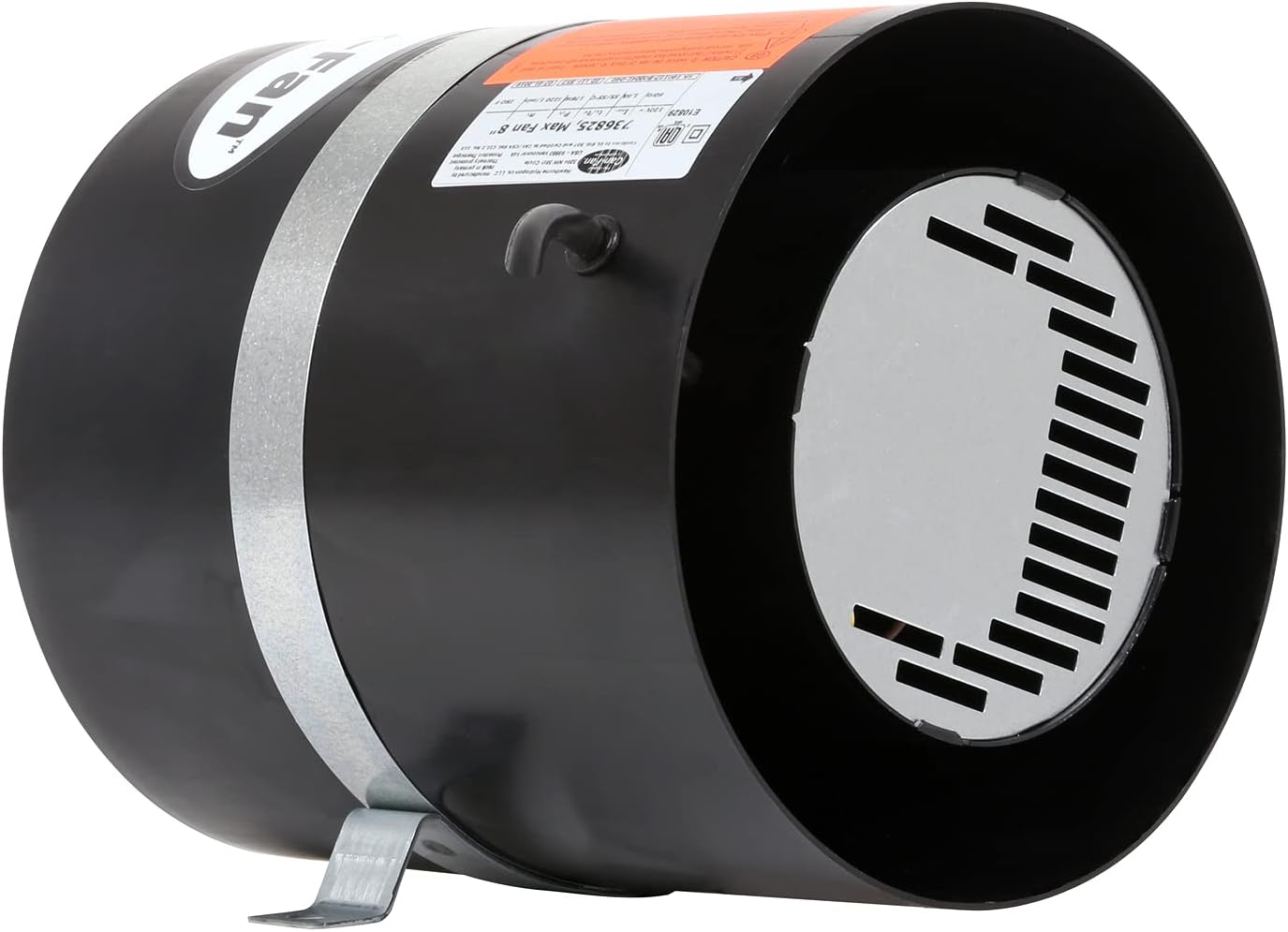

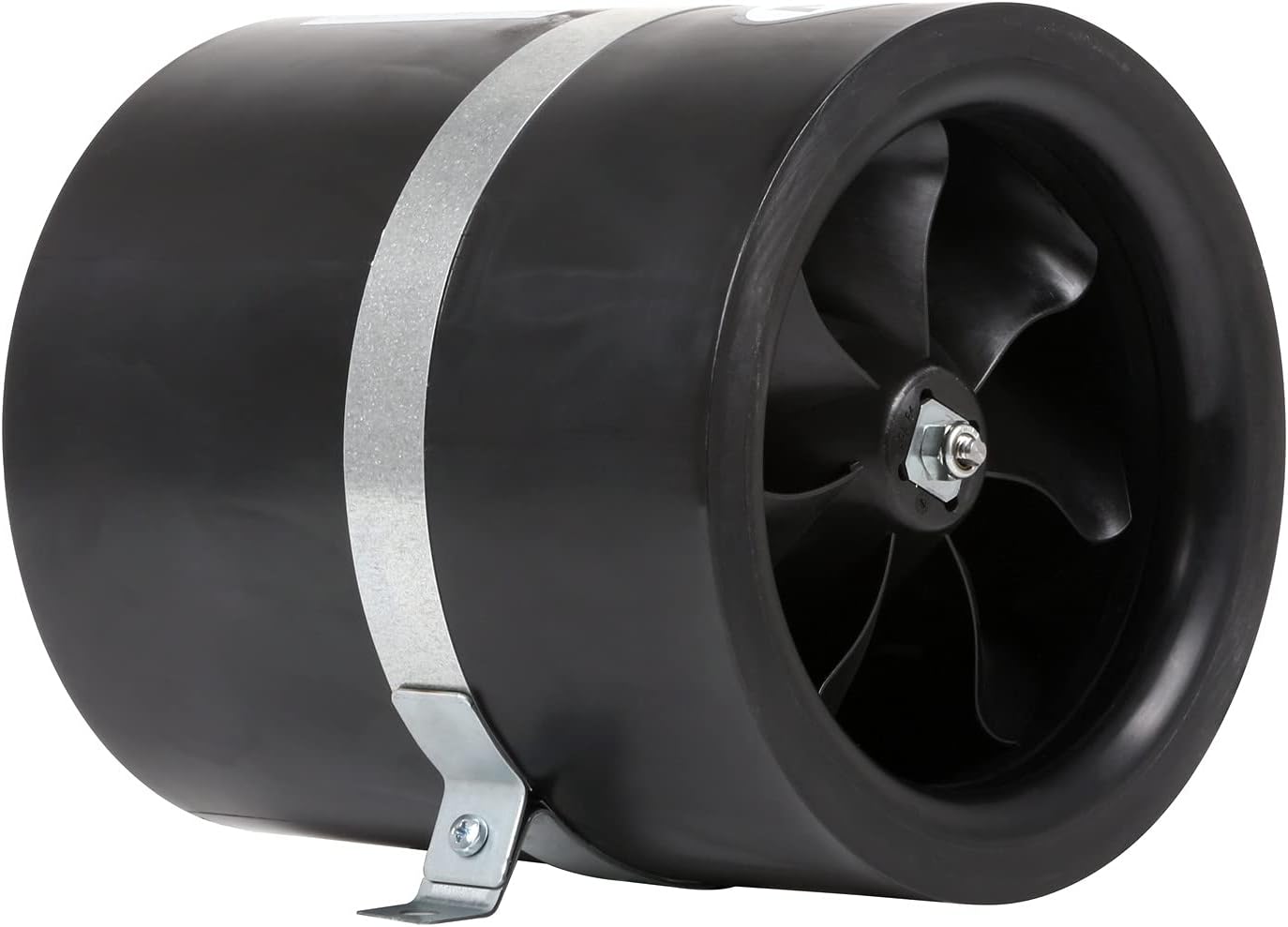

Can-Fan Max Fan – 8 in 675 CFM

The Can-Fan Max Fan is an 8-inch inline fan rated at 675 CFM, designed for ducted ventilation in grow tents, grow rooms, and controlled-environment agriculture spaces. Its impeller and stator were engineered using Computational Fluid Dynamics — the same modeling approach used in aircraft propulsion — delivering 50–100% greater efficiency than conventional inline fans at the same airflow output.

Can-Fan Max Fan Specifications

The table below lists the key specifications for the Can-Fan Max Fan 8-inch model. All values are drawn from the canonical product record and manufacturer documentation.

Specification	Value
Brand	Can Filters
Model	Max-Fan®
Duct Diameter	8 inch
Airflow Rating	675 CFM
Power Cord	8 ft, 120 V pre-wired
Weight	9.39 lb (9.3895 lb)
Blade Design	CFD-optimized 3D impeller and stator blades
Efficiency Advantage	50–100% more efficient than conventional inline fans

Why Choose the Can-Fan Max Fan

The Max-Fan® was the first inline fan built around Computational Fluid Dynamics modeling — a simulation method used to design aircraft engine propulsion systems. By applying CFD analysis to the shape of every blade on the impeller and stator, Can Filters was able to minimize turbulence, reduce drag, and maximize the volume of air moved per watt of energy consumed. This approach is why the Max-Fan® consistently delivers 50–100% better efficiency than comparably sized conventional inline fans.

The 3D impeller blades and stator work together as a matched aerodynamic set. Most standard inline fans use simpler blade profiles that generate significant air resistance and noise. The Max-Fan®’s geometry reduces those losses, which translates to a quieter fan that moves more air at lower current draw. For growers running multiple fans across a large facility, the energy savings compound meaningfully over a growing season.

The 8-inch model is rated at 675 CFM — substantial airflow for mid-to-large grow rooms, commercial tents, and multi-light spaces where a single fan needs to handle the entire ventilation load. The pre-wired 8 ft, 120V power cord allows for direct plug-in installation without additional wiring work. Available sizes in the Max-Fan® line run from 6 to 14 inches, with this 8-inch model sitting in the high-capacity range for single-fan applications.

Can Filters positions the Max-Fan® as a performance standard rather than a commodity fan. If you are running carbon scrubbing through a Can-Filter carbon canister, pairing it with the Max-Fan® from the same manufacturer ensures the airflow rating and flange sizing are engineered to work together without improvised adapters or mismatched static pressure curves.

Best Uses for the Can-Fan Max Fan

The Can-Fan Max Fan 8-inch is designed for ducted ventilation and air-scrubbing applications where consistent, high-volume airflow is required. Below are the primary use cases where this fan excels.

• Grow room exhaust and intake: At 675 CFM, the 8-inch Max-Fan® can handle the primary exhaust duty for medium to large indoor cultivation spaces — typically rooms up to 400–600 square feet depending on heat load and the number of lights. It pulls stale, humid air out through a carbon filter and duct run, maintaining negative pressure to contain odors.
• Carbon filter scrubbing: The Max-Fan® is a natural pairing for Can-Filter carbon canisters. Running the fan on the exhaust side of a carbon filter is the standard configuration: air is drawn through the filter media, odors are captured, and clean air is expelled through the duct. The fan’s high static pressure tolerance allows it to maintain rated airflow even against the resistance of a loaded carbon bed.
• Commercial multi-light tent ventilation: In 4×8, 5×10, or larger tent configurations housing multiple HID or LED fixtures, heat management becomes the limiting factor. The 675 CFM output is sufficient to cycle the air volume in a large tent multiple times per hour, preventing hot spots and maintaining the temperature and humidity parameters plants need during flowering.
• Supplemental booster inline applications: Where duct runs are long or have multiple bends, static pressure loss reduces the effective airflow at the outlet. The Max-Fan® can be used inline as a booster to restore airflow in extended duct systems, maintaining delivery volume at the end of the run.
• Climate-controlled propagation spaces: For propagation rooms requiring precise humidity and temperature control, a high-efficiency fan reduces the heat added by the motor itself — a meaningful consideration in small, tightly managed environments. The Max-Fan®’s efficiency advantage over conventional fans reduces the motor heat contribution to the space.

Can-Fan Max Fan vs Similar Inline Fans

The 8-inch inline fan category includes a wide range of products — from budget AC-motor fans to variable-speed EC-motor units. The Max-Fan® occupies a specific position: a fixed-speed AC inline fan engineered for significantly higher aerodynamic efficiency than commodity designs.

Conventional inline fans use stamped or injection-molded blade profiles that are functional but not aerodynamically optimized. They move air adequately at rated static pressure, but efficiency falls off as the system curve (resistance from filters, duct length, bends) increases. The Max-Fan®’s CFD-optimized blade geometry holds efficiency better across the operating range because the blade angles and camber are designed to reduce turbulence through the impeller, not just at a single design point.

For growers considering variable-speed inline fans, the Max-Fan® is best suited to applications where a consistent, high airflow rate is always needed — such as exhaust through a loaded carbon filter. If the application requires frequent speed modulation (for example, dialing back airflow during the dark cycle), a compatible speed controller or an EC-motor fan with an integrated controller may be worth evaluating. The Max-Fan® is compatible with standard inline fan speed controllers; check controller compatibility with the fan’s rated amperage before pairing.

If you are also managing air circulation within the space itself — moving air around plants rather than through a duct — a separate oscillating or pedestal unit like the Active Air HD 18-inch pedestal fan complements the Max-Fan®’s exhaust function without competing with it on duct sizing or mounting position.

Compatibility

The Can-Fan Max Fan 8-inch is a 120V AC unit pre-wired for standard North American electrical systems. It is compatible with the following:

• Duct diameter: 8-inch round ducting and flanges. Use standard aluminum flex duct, rigid spiral duct, or pre-made duct connectors rated for 8-inch diameter. The Air Box 4 pre-filter and similar pre-filter housings designed for 8-inch inlets pair cleanly with this fan.
• Carbon filters: Compatible with Can-Filter and third-party carbon canisters sized for 8-inch flanges. When sourcing from the same manufacturer, flange tolerances are matched. Check the filter’s CFM rating to ensure it is not the airflow bottleneck in the system.
• Speed controllers: The Max-Fan® works with compatible inline fan speed controllers. Match the controller’s amperage rating to the fan’s rated current draw. Note that reducing speed on an AC fan also reduces torque; verify the fan maintains sufficient airflow through the filter at the lowest required speed.
• Grow tents and sealed rooms: Fits standard 8-inch port openings found on most commercially available large-format grow tents. Suitable for sealed or passively vented rooms where the fan is the primary air mover.
• Voltage: 120V, 60Hz (North American standard). Not rated for 240V or 50Hz systems without an appropriate transformer — consult Can Filters documentation for international voltage compatibility.

Usage Guidelines

Effective use of the Can-Fan Max Fan depends on correct system design — airflow rating, duct sizing, and static pressure all interact to determine how much air the fan actually delivers in your specific setup.

Sizing the fan for your space: A commonly used rule of thumb for grow room ventilation is to replace the air volume of the space at least once per minute when running lights and CO2, or at least every 1–3 minutes for passive rooms. For a 10 ft × 12 ft × 8 ft room (960 cubic feet), a 675 CFM fan can theoretically cycle the full air volume in under 90 seconds — well within the standard threshold. Factor in the static pressure loss from your carbon filter, duct length, and bends, which will reduce the effective delivery CFM below the rated 675.

Static pressure considerations: Every component in the duct run adds resistance. A loaded 8-inch carbon filter typically adds 0.2–0.5 inches of water column static pressure. Each 90-degree bend in the duct adds equivalent resistance to several feet of straight run. For long or complex duct paths, calculate the total system resistance and compare against the fan’s pressure-flow curve (available from Can Filters) to verify the fan will deliver adequate airflow at your system’s operating point.

Noise management: The Max-Fan®’s CFD-optimized blade design reduces turbulence noise compared to conventional fans, but the mechanical hum of any inline fan will transmit through rigid duct to the room. Use flexible duct connectors between the fan and any rigid duct sections to decouple vibration. Mounting the fan on rubber isolators or a hanging bracket further reduces structure-borne noise.

Pre-filter use: If the fan is drawing air through a carbon filter, protect the filter media with a pre-filter sleeve (compatible with 8-inch flanged canisters). Pre-filters capture dust and particulates before they reach the activated carbon, extending the life of the carbon bed. Replace pre-filter sleeves every 4–8 weeks depending on airborne particulate load.

How to Install the Can-Fan Max Fan

1. Plan your duct path before mounting: Identify the fan’s position in the duct run — typically between the carbon filter (inlet side) and the exhaust outlet. Minimize the number of bends and keep the total duct length as short as practical to preserve rated CFM delivery.
2. Mount the fan securely: Inline fans should be suspended or bracket-mounted rather than resting on a flat surface, to reduce vibration transfer. Use ratchet straps, bungee cords, or a dedicated fan mount to hang the unit inside the tent or from a ceiling joist. Orient the fan so that airflow direction (marked on the housing) matches your intended exhaust path.
3. Connect the ductwork: Slide 8-inch flex duct or rigid duct sections over each end of the fan’s flanges. Secure with duct clamps or foil tape rated for HVAC use. Do not use standard household duct tape — it degrades under heat and moisture. If connecting directly to a carbon filter, align the filter flange with the fan inlet flange and secure with a duct clamp.
4. Seal all joints: Air leaks at duct joints reduce system efficiency and can cause pressure loss that reduces effective CFM. Apply foil tape over all clamp joints and any penetrations through tent fabric or wall panels.
5. Plug in and test: The fan ships pre-wired with an 8 ft, 120V cord. Plug into a standard grounded outlet. Verify the fan starts immediately and airflow direction is correct. If using a speed controller, connect the fan through the controller before the first run and verify the fan operates smoothly across the controller’s range.
6. Check for vibration and noise: After the first 10–15 minutes of operation, inspect all duct connections and mounting points for vibration or air leaks. Tighten any loose clamps. Add flexible duct connectors between the fan flanges and any rigid duct if vibration is transmitting into the structure.
