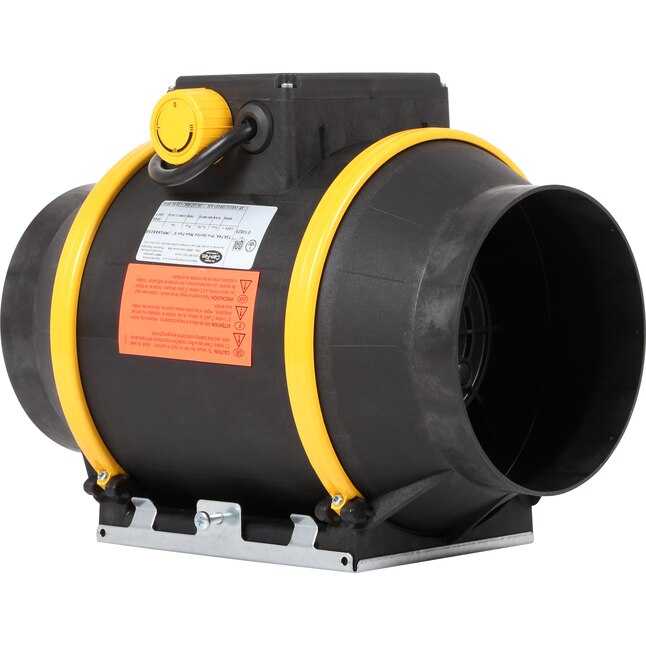

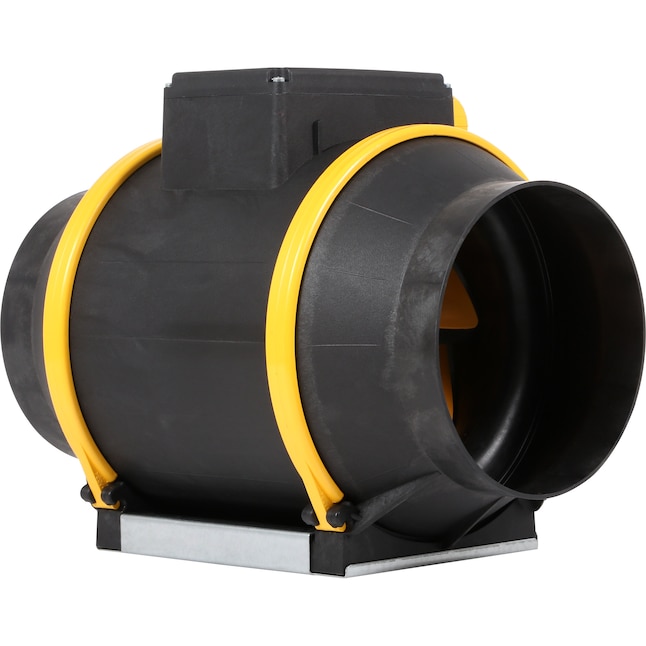

Can-Fan Max-Fan Pro Series – 6 in – 420 CFM

The Can-Fan Max-Fan Pro Series 6 in – 420 CFM is an inline centrifugal fan designed for grow room ventilation and air exchange. Built with a fiberglass reinforced plastic housing and rated to UL and CSA standards, it delivers 420 CFM of airflow across three selectable speeds. It ships with the EZ Mount bracket and runs quieter than the original Max-Fan design.

Can-Fan Max-Fan Pro Series 6 in Specifications

Specifications are sourced from the canonical product data and manufacturer documentation. The weight figure (15 lb) is from the supplier attribute record.

Why Choose the Max-Fan Pro Series

The Max-Fan Pro Series was developed as a direct upgrade to the original Can-Fan Max-Fan line. Several practical improvements distinguish this model from its predecessor and from basic inline fans in the same diameter class.

• Fiberglass reinforced plastic housing: The Pro Series uses a more robust housing material compared to the standard Max-Fan. This adds structural rigidity and resistance to deformation under sustained operation, which matters in warm grow room environments.
• UL and CSA certification: Both certifications confirm the fan has been independently tested to North American electrical safety standards. This is relevant if your facility requires code-compliant equipment or if you are operating near irrigation systems.
• Three selectable speeds: Rather than a fixed-speed motor, the Pro Series ships with three speed settings. This lets you reduce airflow during early vegetative stages or cooler months without purchasing a separate speed controller.
• Lower operating noise than the original Max-Fan: The Pro Series runs quieter than the original design. For facilities where noise is a concern — shared walls, residential grows — this is a practical difference rather than a marketing claim.
• EZ Mount bracket included: The fan ships ready to hang or strap-mount. No additional hardware purchase is required to get it installed in a standard duct run.

Best Uses for the Max-Fan Pro Series 6 in

This fan is sized for mid-scale indoor grow rooms and larger tent setups where a 4 in fan would be insufficient but an 8 in fan would overpower the space. At 420 CFM, it can turn over the air volume in a 10×10 ft room with 8 ft ceilings roughly every two minutes at high speed — a useful benchmark when planning your ventilation layout.

• Inline exhaust through a carbon filter: The 6 in flange mates directly to standard 6 in activated carbon filters. This is the most common use case — drawing air through the filter media and exhausting outside the canopy zone. If you are pairing this fan with a pre-filter sock, the Air Box 4 Pre-Filter is designed for this type of inline setup and helps extend carbon filter life.
• Ducted fresh-air intake: When run in reverse or positioned at the intake end of a duct run, a 6 in inline fan can supplement passive intake in sealed or semi-sealed rooms.
• Climate control in grow tents (4×8 ft and larger): A 4×8 ft tent at 7 ft height contains roughly 224 cubic feet of air. At 420 CFM, this fan achieves approximately one full air exchange per minute — well within the 1–3 minute exchange target most growers use.
• Supplemental circulation in commercial propagation rooms: Inline fans positioned in ducted runs between propagation rooms and flowering areas help maintain consistent temperature and CO2 distribution.
• Cooling for enclosed lighting fixtures: If you are running air-cooled hoods or enclosed fixtures, a 6 in fan at 420 CFM is a common match for single-hood cooling applications.

Compatibility

The Max-Fan Pro Series 6 in is designed for standard 6 in flexible or rigid ducting. It connects directly to carbon filters, duct silencers, and air-cooled reflector hoods that use a 6 in collar. The included EZ Mount bracket is compatible with most overhead strapping and hanging configurations.

For growers monitoring room conditions alongside this fan, the Active Air HD Pedestal Fan 18 in can be used as a floor-level circulation fan in the same space — the two units serve different roles (inline exhaust vs. canopy-level air movement) and work well together in larger rooms.

Speed control accessories: the three built-in speed settings eliminate the need for a basic rotary speed controller. If you require proportional control tied to temperature or humidity readings, verify that your speed controller is rated for the fan’s motor type before connecting it. Not all external controllers are compatible with multi-speed inline fans.

Electrical: the fan is UL and CSA listed, suitable for standard North American 120V circuits. Confirm amperage draw against your circuit capacity before installation, particularly if multiple fans or lighting are on the same circuit.
