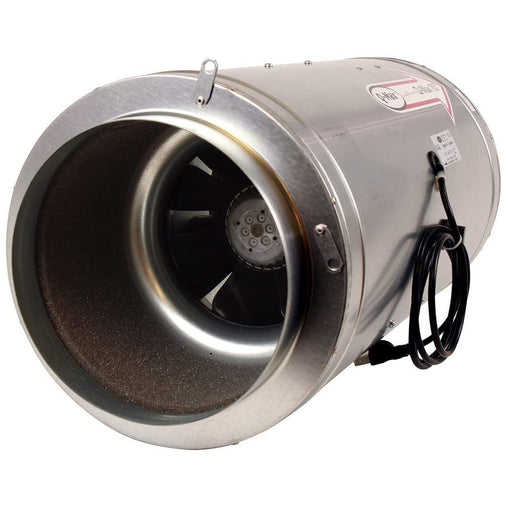

Can Fan Q Max – 10 in 1024 CFM

The Can Fan Q Max – 10 in 1024 CFM is a large-capacity inline fan from Can Filters’ Q-Max Pro Series, built around proven Max-Fan Pro Series motor technology and wrapped in an integrated acoustic muffler housing. The result is 1,024 CFM of air movement through a 10-inch duct with substantially reduced operating noise — a practical combination for growers who need high-volume ventilation without the noise penalty of conventional inline fans.

Can Fan Q Max 10 in 1024 CFM Specifications

The following specifications are sourced from the canonical product record and manufacturer product line documentation for the Q-Max Pro Series.

Specification	Value
Brand	Can Filters
Product Line	Q-Max™ Pro Series
Duct Diameter	10 inches
Airflow Rating	1,024 CFM
Motor Type	Max-Fan™ Pro Series motor
Noise Reduction	Integrated acoustic foam liner with muffler housing
Speed Control	Built-in 3-speed selector (select models)
Mounting	Built-in hang tabs for suspension installation
Weight	38.0 lb
Muffler Coverage	Muffles both intake and exhaust; encapsulates motor

Why Choose the Can Fan Q Max – 10 in 1024 CFM

The Q-Max Pro Series occupies a different position than a bare inline fan. The acoustic muffler housing is built into the unit at the factory, not added as an aftermarket accessory, which matters for two practical reasons: first, the muffler treats both the intake and the exhaust side simultaneously rather than only one end; second, the motor itself is enclosed within the acoustic housing, so motor noise is also absorbed rather than radiated outward. This integrated approach is what separates the Q-Max from pairing a standard inline fan with a separate silencer.

For growers running multiple rooms or operating in facilities with noise constraints — shared buildings, residential zones, or multi-tenant warehouses — the Q-Max addresses the noise issue as a first-class engineering priority rather than an afterthought. The 1,024 CFM rating on the 10-inch model provides enough capacity to ventilate substantial grow spaces while keeping sound levels low enough to avoid complaints.

The built-in hang tabs simplify installation by providing dedicated mounting points that also serve as vibration isolation buffers. Suspending the fan from its hang tabs reduces structure-borne noise transmission to ducting and rafters, which is a common secondary noise source when inline fans are rigidly clamped in place.

• Integrated muffler design: Acoustic foam liner and muffler housing are built into the fan unit, treating intake, exhaust, and motor noise in a single assembly.
• Proven motor platform: Uses the Max-Fan™ Pro Series motor, a well-established design in the inline fan category, adapted for quiet-operation requirements.
• Whole-unit noise encapsulation: Unlike aftermarket mufflers that attach to one end of a standard fan, the Q-Max housing encapsulates the motor — the primary sound source — directly.
• Built-in hang tabs: Dedicated suspension points simplify installation and reduce vibration transfer to adjacent structures and ductwork.
• 3-speed selector: On models equipped with this feature, the built-in speed selector allows airflow adjustment without a separate speed controller, reducing the number of components in the ventilation circuit.

Best Uses for the Can Fan Q Max – 10 in 1024 CFM

The 10-inch, 1,024 CFM Q-Max is sized for applications where airflow volume and quiet operation need to coexist. It is not the lightest or smallest option in the inline fan category, so it is best deployed where its acoustic properties justify the footprint.

• Large indoor grow rooms: A 1,024 CFM fan can turn over the air in a substantial grow space (approximately 500–800 sq ft at standard ceiling heights) within the recommended ventilation interval, making it appropriate for commercial-scale or large hobby cultivation setups.
• Noise-sensitive environments: Facilities in shared buildings, residential structures, or areas with sound ordinances benefit from the integrated muffler design, which reduces both airborne and structure-borne fan noise compared to standard inline fans.
• Carbon filter exhaust systems: Paired with a matched 10-inch carbon filter, the Q-Max provides sufficient static pressure and airflow to pull air through the filter media without starving the fan — a common issue when undersized fans are used with high-restriction carbon filters. Consider pairing with the Air Box 4 pre-filter on the intake side to extend filter life in dusty environments.
• Multi-zone ventilation networks: In facilities with multiple grow rooms sharing a common exhaust plenum, a single large fan like the Q-Max can serve as the primary mover while smaller booster fans handle individual room balancing.
• Greenhouses and controlled environment agriculture (CEA): Where temperature and humidity management require consistent high-volume air exchange, the Q-Max delivers the CFM needed for larger footprints without the acoustic footprint of industrial blowers.
• Dehumidification support: In rooms where a standalone dehumidifier or climate control system handles moisture, the Q-Max handles the air exchange portion of the climate equation, keeping fresh air cycling through the canopy.

Can Fan Q Max vs Similar Inline Fans

The 10-inch inline fan market splits broadly into two categories: standard-construction fans and fans with acoustic treatment. Standard inline fans prioritize airflow per dollar and are often the right choice when noise is not a concern — open greenhouses, outdoor structures, or dedicated utility rooms with no noise constraints. The Q-Max is purpose-built for the second use case, where noise control is a real operational requirement.

Standard inline fans in the 10-inch, 1,000+ CFM range are typically a bare centrifugal or mixed-flow motor in a sheet metal housing with duct flanges at each end. Adding an aftermarket silencer to one end reduces noise on that side but does nothing for the opposite end or for motor noise that radiates through the fan body itself. The Q-Max addresses this by building the muffler housing around the entire unit, treating both duct ports and the motor in a single assembly. The trade-off is higher cost and a larger physical footprint — the muffler housing adds length and diameter compared to a bare fan of the same CFM rating.

For growers choosing between a standard inline fan plus separate silencer versus the Q-Max, the relevant comparison points are: total installed cost (fan + silencer hardware vs. the Q-Max as a single unit), installation complexity (one mounting point vs. two), and noise reduction effectiveness (single-end treatment vs. whole-unit encapsulation). The Q-Max consolidates these into one product at the cost of a higher purchase price.

Compatibility

The Can Fan Q Max – 10 in 1024 CFM is designed for standard 10-inch round duct systems. The following compatibility notes are derived from the product’s specifications and category requirements.

• Ductwork: Connects to 10-inch round flexible duct or rigid spiral duct using standard duct clamps or tape connections. Duct collars on both intake and exhaust ports accept standard 10-inch flex duct.
• Carbon filters: Compatible with any 10-inch flanged carbon filter. For best performance, match the filter’s CFM rating to the fan’s rated output; oversizing or undersizing the filter relative to the fan can reduce system efficiency.
• Speed controllers: The built-in 3-speed selector (on equipped models) handles basic speed adjustment. For variable-speed control, ensure any external controller is rated for the fan’s motor type; consult the manufacturer’s documentation for compatible controller specifications.
• Climate controllers: Can be integrated with environmental controllers that use 0–10V or relay-based fan speed signals, depending on the specific model’s control interface. Verify controller compatibility before purchasing.
• Grow tents and grow rooms: The 10-inch port size is typical for large grow tents (10×10 ft and up) and medium-to-large commercial grow rooms. Verify that the tent or room’s duct port diameter matches before installation.

If you are running a pedestal or oscillating fan alongside the Q-Max for canopy air movement, the Active Air HD pedestal fan is a commonly paired unit for circulation within the grow space while the Q-Max handles the primary exhaust and fresh air exchange function.

Usage Guidelines

Inline fans are most effective when sized to the space and operated within their designed airflow range. The following guidelines apply to the Q-Max in typical grow room and controlled environment applications.

Airflow sizing: A standard guideline for grow room ventilation is to exchange the room’s total air volume once every 1–3 minutes, depending on heat load, CO₂ supplementation, and humidity targets. At 1,024 CFM, the Q-Max can exchange the air in a 1,024 cubic foot room (approximately a 10×10 ft room with an 10-ft ceiling, or a 12×12 ft room with a 7-ft ceiling) every minute. For rooms with significant heat load — high-wattage lighting, dense canopy — target the shorter end of the exchange interval.

Static pressure and filter restriction: Every component in the duct run adds resistance (static pressure). A carbon filter, a length of flex duct, and duct bends all reduce effective CFM at the fan outlet. The fan’s rated 1,024 CFM is measured at zero static pressure; actual delivered airflow in a typical installation will be lower. Where possible, use straight rigid duct runs, minimize bends, and select a carbon filter rated for at least the fan’s CFM to preserve system efficiency.

Speed settings: If using the built-in 3-speed selector, start at a lower speed setting and increase until the target temperature and humidity are maintained. Running the fan at lower speeds reduces noise further and extends motor life. Only run at full speed when conditions require it — high ambient temperatures, peak transpiration periods, or maximum CO₂ flush cycles.

Negative pressure: In sealed grow rooms, the exhaust fan should be sized to maintain slight negative pressure relative to adjacent spaces — this prevents odor migration through unsealed gaps. With a 1,024 CFM fan, ensure the intake path (passive vents, intake fans, or a fresh air port) is large enough to supply air without starving the exhaust fan.

How to Install the Can Fan Q Max – 10 in 1024 CFM

Installation follows standard inline fan procedure with a few details specific to the Q-Max’s muffler housing and hang tabs.

1. Plan the duct run before mounting. Identify the intake and exhaust port locations. The Q-Max has an airflow direction — confirm which end is the inlet and which is the outlet before hanging the unit. Inline fans are directional; reversing the airflow direction reduces efficiency.
2. Use the built-in hang tabs for suspension. The Q-Max’s hang tabs are designed as the primary mounting method. Use ratchet hangers, rope hangers, or appropriately rated hooks rated for at least 1.5× the fan’s weight (38 lb; use hardware rated for 60 lb or more). Hang the fan from a structural ceiling member, crossbar, or unistrut — not from the ducting itself.
3. Connect intake ductwork. Slide 10-inch flex duct or rigid duct onto the intake port collar and secure with a worm-drive duct clamp or foil duct tape. Avoid sharp bends within the first 12 inches of the inlet — turbulence at the inlet reduces fan efficiency.
4. Connect exhaust ductwork. Repeat for the exhaust port. If routing to a carbon filter, connect the filter’s flange to the fan’s exhaust port or arrange the carbon filter on the intake side depending on your system layout (pre-filter vs. post-filter configuration).
5. Connect power and configure speed setting. Plug the fan into a properly grounded outlet rated for the fan’s electrical draw. If the unit has a built-in 3-speed selector, set the initial speed before powering on. If using an external speed controller, connect it according to the controller manufacturer’s instructions.
6. Power on and verify airflow direction. Confirm air is moving in the intended direction by checking for airflow at the exhaust duct outlet. Verify that the hang tabs are bearing the fan’s weight evenly and that the unit is not putting lateral stress on the ductwork connections.
7. Check for vibration transmission. If you notice vibration noise traveling through the ductwork or ceiling structure, add rubber isolation grommets between the hang tabs and the hanging hardware. The Q-Max’s integrated muffler reduces fan-generated noise, but mechanical vibration through rigid connections can still transmit sound to adjacent surfaces.
