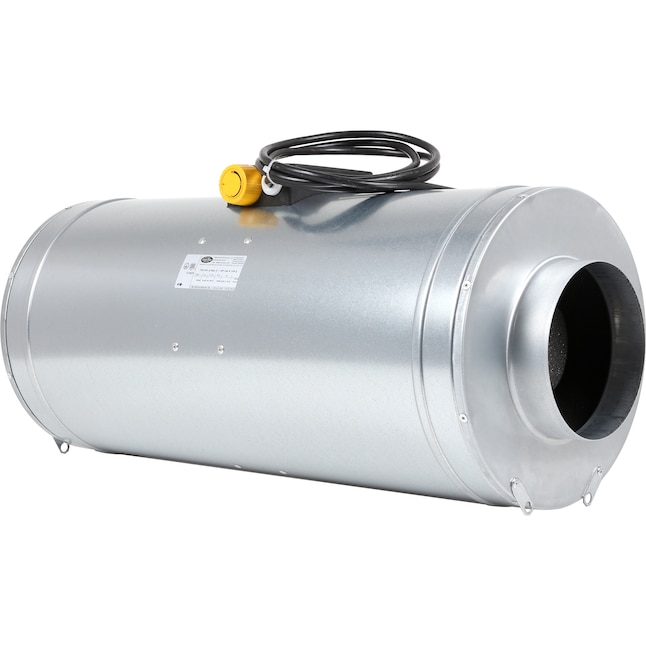

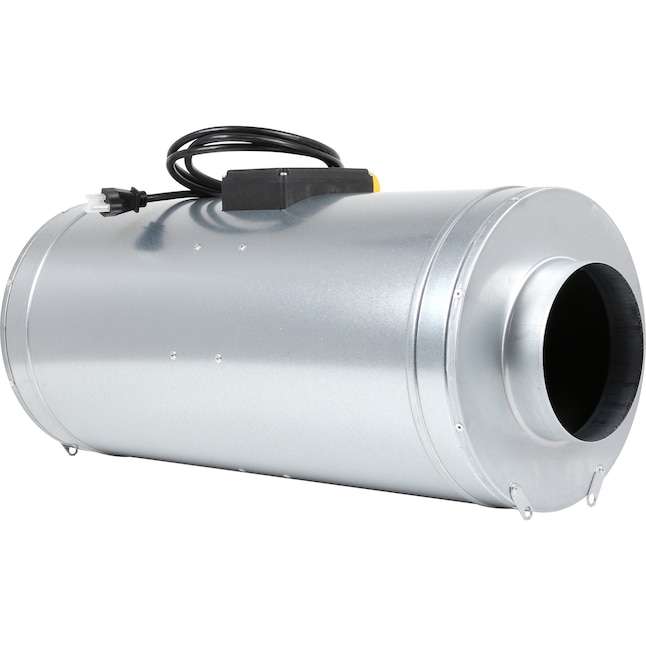

Can Fan Q Max – 6 in 400 CFM

The Can Fan Q Max – 6 in 400 CFM is an inline fan from the Q-Max Pro Series designed for growers who need reliable high-volume air movement without the noise associated with standard inline fans. It uses the same Max-Fan Pro Series motor found in Can Filters’ established product line, paired with an integrated acoustic foam muffler that attenuates both intake and exhaust noise while encapsulating the motor for quieter operation. Built-in hang tabs allow the unit to be suspended directly in a duct run with minimal vibration transfer.

Can Fan Q Max – 6 in 400 CFM Specifications

Key specifications for the Can Fan Q Max 6 inch, 400 CFM inline fan. The unit weight of 21.38 lb reflects the combined mass of the fan motor, muffler housing, and acoustic foam liner.

Specification	Value
Brand	Can Filters
Series	Q-Max Pro Series
Duct Size	6 inch
Airflow	400 CFM
Weight	21.38 lb
Motor	Max-Fan Pro Series (integrated)
Sound Attenuation	Acoustic foam liner, integrated muffler
Speed Control	3-speed built-in selector (select models)
Mounting	Built-in hang tabs for duct suspension

Why Choose the Can Fan Q Max – 6 in 400 CFM

The Q-Max Pro Series addresses a common trade-off in inline fan selection: growers typically have to choose between high airflow and quiet operation, or add a separate aftermarket muffler that only addresses one end of the airflow path. The Q-Max resolves this with a single integrated unit.

• Integrated muffler on both intake and exhaust: Unlike standalone fans with aftermarket mufflers added to one port, the Q-Max muffles the fan at both the intake and exhaust simultaneously. The acoustic foam liner wraps the entire motor assembly, which reduces noise from the motor itself in addition to airflow turbulence at each end.
• Max-Fan Pro Series motor platform: The motor in the Q-Max is the same unit used in Can Filters’ established Max-Fan and Max-Fan Pro Series lineup. This is a proven motor design with a track record in demanding cultivation environments rather than a new or unverified component.
• Built-in hang tabs for simplified installation: The hang tabs on the housing allow the fan to be suspended in a duct run without additional mounting hardware. This also provides mechanical isolation from the structure, which reduces vibration transmission.
• Single-unit solution replacing fan + muffler: For growers who would otherwise purchase an inline fan and a separate muffler, the Q-Max combines both into one housing. This reduces the number of connections in the duct run and simplifies installation.
• Optional 3-speed built-in selector: Select Q-Max models include a built-in 3-speed switch on the unit itself, eliminating the need for a separate fan speed controller for basic speed adjustment.

Best Uses for the Can Fan Q Max – 6 in 400 CFM

The 6-inch, 400 CFM form factor positions this fan for mid-sized cultivation environments where a balance of airflow capacity and acoustic performance is needed. The following use cases reflect the product category (inline/booster fans, air movement) and features described in the canonical product documentation.

• Grow tent exhaust and ventilation: A 6-inch inline fan at 400 CFM is a standard specification for exhausting grow tents in the 4×4 to 5×5 foot range, where air exchange rates of 1–3 minutes per complete air change are typical targets. The muffler integration makes this a practical choice when the tent is located in a shared or adjacent living space.
• Carbon filter scrubbing systems: The Q-Max is designed to pair with a 6-inch carbon filter in a push-pull or pull configuration for odor control. Pairing it with an inline pre-filter upstream can extend carbon filter life by capturing particulates before they reach the activated carbon bed.
• Ducted HVAC supplemental airflow: The fan can be used as a booster fan in longer duct runs where static pressure reduces the output of a central blower, particularly in situations where noise is a concern in occupied areas near the ductwork.
• Multi-room cultivation facilities: In a facility with multiple grow rooms, the acoustic properties of the Q-Max are useful in areas where noise from mechanical systems needs to stay below a threshold for worker comfort or to avoid disturbing adjacent spaces.
• Climate-sensitive cultivation environments: Any grow room where temperature and humidity management is critical benefits from consistent, high-volume air exchange. Pairing the Q-Max with a quality oscillating floor fan for internal air circulation creates a more complete climate management system.

Can Fan Q Max vs Similar Inline Fans

When comparing the Q-Max to a standard inline fan of similar capacity, the primary distinction is the integrated acoustic treatment. A conventional 6-inch inline fan at 400 CFM delivers equivalent airflow volume but produces more audible noise at the intake, exhaust, and motor. Adding a separate aftermarket muffler to a standard fan addresses one end of the airflow path — either intake or exhaust — but not both simultaneously, and the motor noise remains unaddressed unless the muffler physically encapsulates the motor housing, which most aftermarket units do not.

The Q-Max’s integrated design muffles both ports and encapsulates the motor in a single housing. The practical result is a quieter unit at a slightly higher upfront cost compared to a bare fan of similar CFM rating. For growers who would have purchased a fan plus one or two separate mufflers, the total cost comparison often narrows significantly.

Compared to other Can Filters products, the Q-Max occupies the quiet-operation niche within the lineup. The standard Max-Fan Pro Series provides equivalent or higher airflow with a more compact housing and lower weight, but without the built-in muffler. The choice between the two depends primarily on whether acoustic performance is a priority for the installation.

Compatibility

The Can Fan Q Max 6 inch is compatible with standard 6-inch flexible and rigid ducting using slip-fit or clamped connections at both the intake and exhaust ports. The hang tabs are designed for suspension with standard wire or chain at the duct flanges, which is a common installation method for inline fans in grow rooms and mechanical rooms.

The fan is designed for use with Can Filters’ own 6-inch carbon filters and is compatible with third-party 6-inch filters. For optimal performance in a carbon scrubbing setup, the fan should be matched to a filter sized for the fan’s rated CFM output — undersized filters create excessive static pressure and reduce effective airflow.

For growers integrating the Q-Max into a broader climate management system, note that controlling humidity and temperature alongside air exchange is important for consistent results. A dehumidifier, for instance, produces moisture-laden air that the exhaust fan needs to remove from the grow space efficiently. If your cultivation setup involves active dehumidification, consider how the exhaust fan capacity relates to the dehumidifier output rate to avoid humidity buildup during high-load periods.

The built-in 3-speed selector (on applicable models) adjusts motor speed at the fan itself. For precise variable speed control below the three preset speeds, a compatible external fan speed controller can be used in conjunction with or instead of the onboard selector.

Usage Guidelines

The Q-Max is an exhaust and ventilation fan. The following guidelines cover how to size and operate it effectively in a cultivation environment.

Sizing for air exchange rate: The standard target for grow room ventilation is a complete air change every 1–3 minutes. For a 4×4×7-foot grow tent (approximately 112 cubic feet), a 400 CFM fan provides more than sufficient capacity for this target range, even accounting for static pressure losses from the carbon filter and duct bends. For larger spaces, calculate room volume and target exchange rate before selecting fan capacity.

Static pressure and filter pairing: The rated 400 CFM is measured under conditions with minimal back pressure. When paired with a carbon filter, static pressure reduces actual airflow. Can Filters designs its carbon filters to work within the operating range of its fan lineup, but verify that the filter selected for your installation is rated for the fan’s CFM at the expected static pressure.

Speed adjustment: If the model includes the built-in 3-speed selector, start at the higher speed during initial setup to confirm the system is moving adequate air volume, then reduce speed as needed to lower noise or adjust temperature and humidity targets. Running the fan at a lower speed for extended periods reduces wear and lowers energy consumption compared to running at full speed continuously.

Operating environment: The fan should be installed in a location where ambient temperature stays within reasonable limits. Excessive heat around the motor housing can reduce motor life. Ensure the fan has clearance for airflow and that the hang tab mounting points are load-rated for the fan’s 21.38 lb weight plus any dynamic load from vibration.

How to Install the Can Fan Q Max

The following steps cover a typical inline installation for exhaust ventilation in a grow tent or grow room.

1. Plan the duct path: Determine the intake and exhaust port locations. The fan should pull air through the carbon filter and push it out through the exhaust port. Minimize duct bends and total duct length to reduce static pressure losses.
2. Suspend the fan using hang tabs: Use the built-in hang tabs to hang the unit from a structural point above the installation location — typically a tent crossbar, ceiling joist, or overhead pipe. Use appropriately rated wire, rope ratchets, or chain. Ensure the unit is level or angled no more than 15 degrees from horizontal to avoid stress on internal components.
3. Connect the carbon filter: Attach the carbon filter to the intake side of the fan using a 6-inch duct clamp. If using a pre-filter sleeve over the carbon filter, ensure it is seated and secured before connecting.
4. Connect exhaust ducting: Attach 6-inch ducting to the exhaust port of the fan using a duct clamp or collar. Route the duct to the exhaust point (tent port, wall penetration, or HVAC connection) using the shortest practical path with the fewest bends.
5. Seal all connections: Use foil duct tape or duct clamps to seal all connections at the fan ports, filter collar, and any duct joints. Air leaks reduce efficiency and allow unfiltered air to bypass the carbon filter.
6. Set initial speed: If the model includes the 3-speed selector, set it to the highest speed for initial operation. Plug the unit into a properly grounded outlet rated for the fan’s current draw.
7. Verify operation: Confirm the fan is pulling air in the correct direction (intake through the filter, exhaust outward). Check all connections for air leaks. Monitor temperature and humidity over the first few hours of operation and adjust fan speed as needed.
