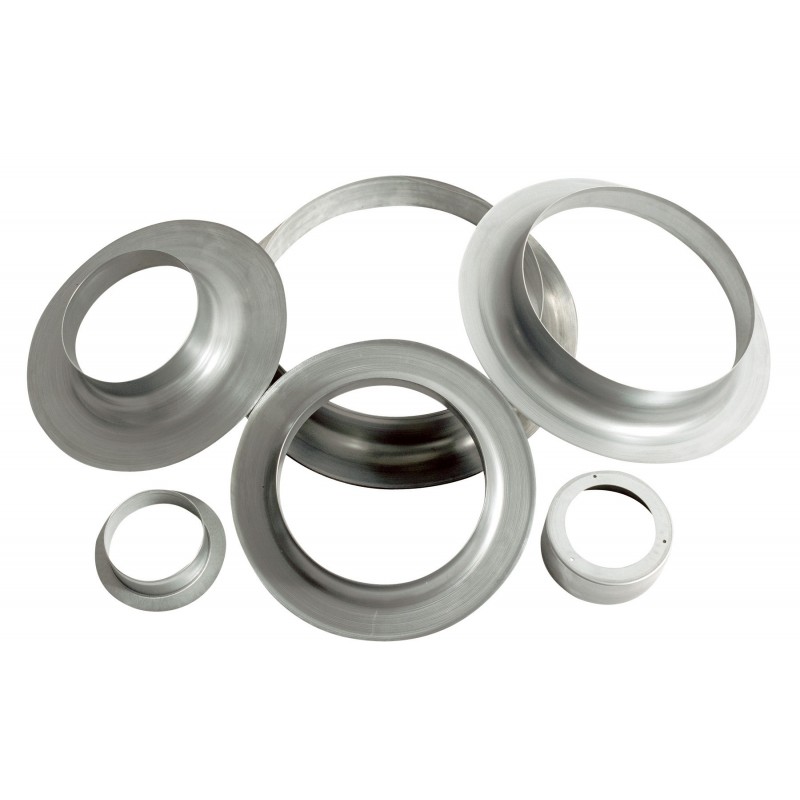

Can-Filter Flange – 10 in

The Can-Filter Flange – 10 in is a spun steel mounting flange designed to connect a Can-Filter® carbon filter to flexible ducting or a Can-Fan® inline fan. It ships with a foam rubber seal and six hex-drive self-tapping screws so you can form an airtight, vibration-resistant connection without additional hardware. If your existing setup uses a 10 in outlet port, this is the direct replacement or upgrade piece you need.

Can-Filter Flange – 10 in Specifications

All specification values below are drawn from the manufacturer product data and the canonical row attributes. No values have been estimated or extrapolated.

Why Choose Can-Filter Flange – 10 in

The Can-Filter Flange is the manufacturer-designed connection piece for Can-Filter carbon filter systems. Using the OEM flange rather than a generic adapter helps preserve the airtight integrity of the filter-to-fan junction, which is where odor-laden air most often escapes in a poorly sealed system. Here is what makes this flange a reliable choice:

• Spun steel construction: The flange is formed from spun steel rather than stamped sheet metal or plastic, producing a smoother rim with tighter dimensional tolerances. This matters for maintaining a uniform seal around the ducting collar.
• Foam rubber seal included: The included foam rubber seal compresses against both the filter collar and the flange face, eliminating gaps that would allow unfiltered air to bypass the carbon bed. No need to source a separate gasket.
• Six hex-drive self-tapping screws: The six-point fastening pattern distributes clamping force evenly around the circumference. Using a hex driver rather than a standard Phillips screw gives better torque control without the risk of cam-out that could strip threads in the steel.
• Manufacturer fit: Designed specifically for Can-Filter and Can-Fan products, so collar dimensions and thread pitch match without modification or adapters.
• Multiple sizes available: The same flange design is offered from 4 in through 20 in, so if you upgrade your filter or fan to a larger diameter later, you can source the matching flange from the same product line.

Best Uses for Can-Filter Flange – 10 in

This flange is a hardware component, not a standalone ventilation solution. It serves a specific connection role inside a larger air-handling assembly. The use cases below reflect where a 10 in flange fits into a real grow-room or commercial ventilation setup.

• Carbon filter outlet connection: The primary purpose described by Can Filters is airflow out of the ventilated area – that is, attaching the exhaust port of a Can-Filter® carbon filter to the inlet of an inline fan or to a flexible duct run leading outside the grow space.
• Can-Fan inline fan mounting: If your Can-Fan is directly flanged onto a filter (a common configuration in medium-to-large grow tents), this is the connecting piece between the two. Without a proper flange, the filter-fan interface relies on friction-fit collars that can loosen over time.
• Replacement part: Flanges can deform or lose their seal over years of use, especially if the filter has been moved or if screws have been over-tightened. This flange serves as a direct OEM replacement.
• Ducting accessory in grow tents and rooms: Any 10 in duct run that terminates at a Can-Filter can benefit from a properly seated flange rather than a clamp-only connection. This is particularly relevant in commercial grows where air movement is continuous and seal fatigue is a real concern.
• Paired with pre-filters: If you are running a pre-filter sleeve on your carbon filter to extend media life, the flange sits at the outlet end and does not interfere with the pre-filter wrap on the intake side.

Compatibility

The Can-Filter Flange – 10 in is designed for the Can-Filter product ecosystem. The following notes are drawn from the canonical product description:

• Can-Filter® carbon filters: All Can-Filter models with a 10 in collar – including the Can-Lite series and other Can-Filter lines that use standard 10 in port dimensions.
• Can-Fan® inline fans: Can-Fan models with a 10 in inlet diameter. Can-Fan and Can-Filter are sister product lines designed to mate directly, so this flange bridges the two without adapters.
• Standard 10 in flexible ducting: The flange collar accepts standard 10 in diameter flexible aluminum or vinyl duct. This allows integration with third-party ducting in mixed-brand systems.
• Not intended for direct-to-wall use: This flange is a filter/fan interface piece, not a wall penetration sleeve or backdraft damper. For wall connections, additional ducting accessories would be required.

If you are running a high-volume air exchange system, pairing this flange with a quality circulation fan in the grow space can help maintain even air distribution alongside the filtered exhaust run.

Installation Steps

Installation requires only a hex driver matching the self-tapping screws included. No drilling or cutting is needed for standard Can-Filter collar connections.

1. Power down the ventilation system before beginning. Disconnect the inline fan from its power source.
2. Position the foam rubber seal on the Can-Filter outlet collar, centering it so it covers the rim face evenly.
3. Seat the flange face against the foam seal on the filter collar, aligning the screw holes around the circumference.
4. Insert and hand-tighten the six hex-drive self-tapping screws in an alternating pattern (opposite pairs) to draw the flange down evenly against the seal. Avoid tightening one side fully before the other, which can tilt the flange and create gaps.
5. Torque the screws to firm resistance with the hex driver. Do not over-tighten – the self-tapping screws thread into steel and can strip if forced beyond snug.
6. Attach the ducting or Can-Fan inlet to the now-flanged outlet collar. Secure with a hose clamp or duct tape rated for HVAC use.
7. Restore power and inspect the joint under normal operating conditions. Listen and feel for any air leakage around the seal. If leakage is present, check that the foam seal is fully seated and that all six screws are equally torqued.
