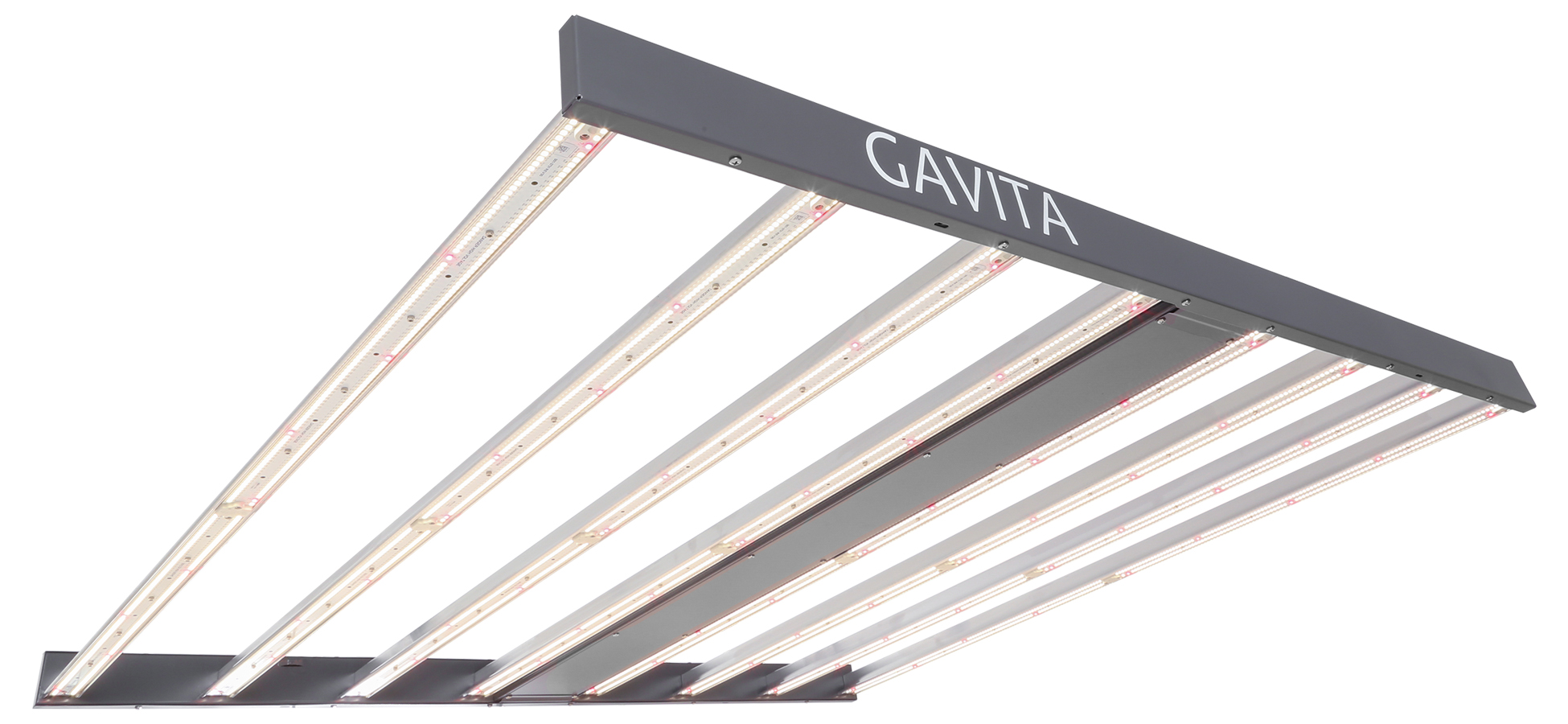

The Gavita Pro 1700e LED is a high-output, full-spectrum LED grow fixture drawing 645 watts and delivering 1700 µmol s⁻¹ PAR at an efficacy of 2.6 µmol s⁻¹ per watt. Designed for commercial and serious hobbyist cultivation, it handles the full plant cycle from vegetative growth through the high-light demands of bloom and finishing. Its 8 passively cooled LED bars keep the profile slim — just 2.3 inches tall — making it suited to low-ceiling rooms, vertical racks, over-bench arrays, and grow tents.
Gavita Pro 1700e LED Specifications
All values sourced from the canonical product description. The fixture operates at 120–277 V and is FCC compliant and UL8800 listed.
| Specification | Value |
|---|---|
| Brand | Gavita |
| Model | Pro 1700e LED 120-277 Volt |
| Power Draw | 645 W |
| PAR Output (PPF) | 1700 µmol s⁻¹ |
| Efficacy (PPE) | 2.6 µmol s⁻¹ W⁻¹ |
| Input Voltage | 120–277 V (universal) |
| Spectrum | Full spectrum (Samsung white + Osram deep-red LEDs) |
| LED Bar Count | 8 passively cooled bars |
| Dimming Range | 50–100% (no efficiency loss when dimmed) |
| Controller Interface | Gavita E-Series LED Adapter #906151 (sold separately) |
| Dimensions | 44.1 × 43.7 × 2.3 in (L × W × H) |
| Weight | 28.4 lbs |
| Max Ambient Temperature | 40°C (104°F) |
| Compliance | FCC compliant, UL8800 |
| Included Accessories | Sun Grip® light hangers |
Why Choose the Gavita Pro 1700e LED
The Pro 1700e occupies a specific space in the Gavita lineup: it delivers high photon output at a power draw that fits both 120V and 277V electrical infrastructure, without requiring active cooling fans inside the fixture itself. Here is what the canonical product description supports:
- High PPF with strong efficacy. At 1700 µmol s⁻¹ PAR from 645 watts, the fixture achieves 2.6 µmol s⁻¹ per watt. That ratio means you are getting substantial photon output relative to the electricity consumed — relevant when electricity costs are a primary operating expense.
- Passive cooling, slim profile. The 8 LED bars are passively cooled, meaning no internal fans to maintain or replace. The 2.3-inch height makes the fixture practical in spaces where ceiling clearance is limited, including vertical rack systems and low grow rooms.
- Full-spectrum output from name-brand LEDs. Samsung white LEDs and Osram deep-red LEDs are combined in the same fixture. This combination covers the wavelengths needed from early vegetative growth through the final weeks of bloom and finishing.
- Controller-ready with no efficiency penalty for dimming. When paired with the Gavita E-Series LED Adapter (#906151, sold separately) and a Gavita Master Controller, the fixture dims to 50% without losing efficiency. Dimming to manage heat or light levels during sensitive growth phases does not reduce the µmol-per-watt ratio.
- Universal voltage input. The 120–277V input range means the same fixture works on standard residential 120V circuits and on commercial 240V or 277V infrastructure, reducing the need to order voltage-specific models for different facilities.
Sun Grip® ratchet hangers are included in the box, so basic installation hardware is covered. The Gavita E-Series LED Adapter (#906151) is sold separately and is required if you plan to use a controller; without it, the fixture runs at 100% continuously.
Best Uses for the Gavita Pro 1700e LED
The Pro 1700e is intended for full-term cultivation rather than seedling trays or low-light propagation. The use cases below are drawn directly from the product description.
- Vegetative and bloom rooms requiring consistent high light. The fixture is rated for the full plant cycle, from vegetative growth through the higher-light requirements of bloom and finishing. A single fixture covers the broad footprint that its 44.1 × 43.7-inch frame suggests.
- Low-ceiling grow spaces. At 2.3 inches tall, the fixture is one of the thinner options in the high-output category. Growers with limited vertical clearance — attic rooms, basement spaces, or stacked benches — can hang it closer to the canopy without the fixture itself consuming much of that headroom.
- Vertical rack and over-bench arrangements. The passively cooled bar design is specifically described for use in vertical racks and over benches. The flat form factor distributes light more evenly across a wide footprint compared to a compact point-source fixture.
- Facilities with mixed electrical infrastructure. Because the fixture accepts 120–277V, it can be installed in spaces where circuits range from standard residential to commercial panel voltages. This is useful for facilities that have grown incrementally and have mixed electrical infrastructure.
- Controlled-environment grows using Gavita automation. When connected via the Gavita E-Series LED Adapter to a Gavita Master Controller, the fixture integrates into automated lighting schedules with remote dimming. This suits operations where multiple fixtures need to respond to environmental triggers without manual intervention.
Gavita Pro 1700e LED vs Similar Products
No alternate products were present in the canonical data for direct comparison. The following notes reflect what the Pro 1700e’s specifications suggest about its position relative to common alternatives in the 600–700W LED category.
A grower choosing between this fixture and a comparable 600W LED from a different brand is primarily evaluating three things: photon output per watt (efficacy), physical form factor, and integration with a controller ecosystem. The Pro 1700e’s 2.6 µmol s⁻¹ W⁻¹ efficacy and 1700 µmol s⁻¹ total PPF place it in the upper range for its wattage class. Its passive cooling design distinguishes it from fixtures that use active cooling fans, which add noise, airflow complexity, and a component that can fail over time.
The main trade-off is the controller dependency for dimming. If you do not plan to use a Gavita Master Controller, you must purchase the E-Series LED Adapter separately just to unlock the dimming function. Growers using third-party controllers or manual timers will need to factor in that additional purchase. Competing fixtures at similar price points sometimes include built-in dimming without requiring a proprietary adapter.
If your grow room already uses a Gavita controller ecosystem, the Pro 1700e integrates without friction. If you are building a new setup without an existing controller preference, compare the total system cost — fixture plus adapter — against alternatives that include dimming natively. For supplemental or propagation lighting needs at lower wattage, a T5 fluorescent fixture may serve early growth stages at lower cost, leaving the Pro 1700e for the main flower room.
Compatibility & Operating Range
The Gavita Pro 1700e LED is designed to work within the following parameters, as stated in the product description:
- Voltage: 120–277V universal input. The fixture operates on standard North American 120V residential circuits and on 208V, 240V, or 277V commercial circuits without modification.
- Controller compatibility: Works with Gavita Master Controllers when the Gavita E-Series LED Adapter (model #906151, sold separately) is connected. Without the adapter, the fixture runs at 100% output continuously; it cannot be dimmed through a controller.
- Ambient temperature: Maximum operating ambient temperature is 40°C (104°F). This is the room-level air temperature, not the canopy temperature. Running the fixture in ambient conditions above this threshold is outside the rated operating envelope.
- Physical environment: Passive cooling means there are no active airflow requirements from the fixture itself. However, room-level air circulation is still important for heat management — the fixture surfaces will become warm in continuous operation.
- Compliance: FCC compliant and UL8800 listed. UL8800 is the standard for horticultural lighting equipment, covering electrical safety and construction requirements specific to grow light applications.
The fixture is not designed for outdoor use or unenclosed wet environments. For power cord compatibility and connection to grow-room electrical panels, ensure the power cord specification matches your circuit — Gavita offers specific power cords for their LED fixtures, such as the Gavita 8 ft power cord for LED (120V).
Usage Guidelines
The following guidance is derived from the product description and standard LED fixture practices for the wattage and footprint class described.
Coverage and hanging height. The fixture’s 44.1 × 43.7-inch frame distributes light across a wide area. Exact PPFD maps for specific hanging heights are not provided in the canonical row; consult the Gavita coverage chart on the manufacturer’s site or the documentation included with the fixture. As a general principle for a 1700 µmol s⁻¹ fixture at this footprint, hanging heights between 12 and 24 inches above the canopy are common starting points, adjusted based on measured PPFD at canopy level.
Growth stage targeting. The product is described as intended for full-term growth — vegetative through bloom and finishing. During vegetative growth, lower PPFD targets (typically 400–600 µmol m⁻² s⁻¹ at canopy, depending on the crop) allow you to run the fixture at reduced output if the E-Series LED Adapter is connected. For bloom and finishing, higher PPFD targets are appropriate, and many growers run the fixture at or near 100%.
Dimming behavior. The fixture dims to 50% without any efficiency loss — the 2.6 µmol s⁻¹ W⁻¹ efficacy is maintained across the dimming range. This is relevant for energy management: running at 50% uses roughly 322W while maintaining proportional photon output. Dimming requires the Gavita E-Series LED Adapter (#906151) connected between the fixture and the controller.
Non-controlled operation. Without the E-Series LED Adapter, the fixture operates at 100% output only. There is no built-in manual dimmer. If you need intermediate output levels and do not plan to purchase the adapter, this is a relevant consideration before buying.
Heat management. Passive cooling means the LED bars dissipate heat through their surface area rather than fans. In high-ambient or high-density grow room configurations, ensure adequate air exchange to prevent the room temperature from approaching the 40°C operating limit.
How to Install the Gavita Pro 1700e LED
The following steps apply to a standard overhead installation using the included Sun Grip® light hangers. The canonical row does not include detailed installation steps; the sequence below follows the per-category generic template for LED lighting fixtures.
- Prepare your hanging point. Identify the overhead support — a tent crossbar, trellis rail, or ceiling-mounted beam — that will hold the fixture. Confirm the support can bear the fixture weight (28.4 lbs) with an appropriate safety margin.
- Attach the Sun Grip® ratchet hangers. Thread the included Sun Grip® hangers through or around the fixture’s hanging brackets. Attach the upper hooks to your support point. Use the ratchet mechanism to set initial height; you will adjust this after power-on.
- Connect the power cord. Plug the fixture into a grounded 120–277V outlet appropriate for the circuit. Ensure the circuit’s amperage rating is sufficient for a 645W load; at 120V this is approximately 5.4A at full draw.
- Install the E-Series LED Adapter if using a controller (optional). If you are connecting to a Gavita Master Controller, install the Gavita E-Series LED Adapter (#906151, sold separately) per its included instructions before connecting the power cord. Without this adapter, the fixture will run at 100% and cannot respond to controller signals.
- Power on and verify operation. Switch on the circuit or timer. Confirm the fixture illuminates across all 8 LED bars. There are no moving parts to check; inspect visually for uniform light output from each bar.
- Set hanging height for growth stage. Using a light meter or PPFD app, measure the photon flux at canopy level and adjust the Sun Grip® hangers to achieve a PPFD appropriate for your current growth stage. Refer to Gavita’s published coverage charts for the Pro 1700e for model-specific guidance.
