Hydro Flow Vinyl Black Tubing – 1 in ID – 1.25 in OD 50 ft

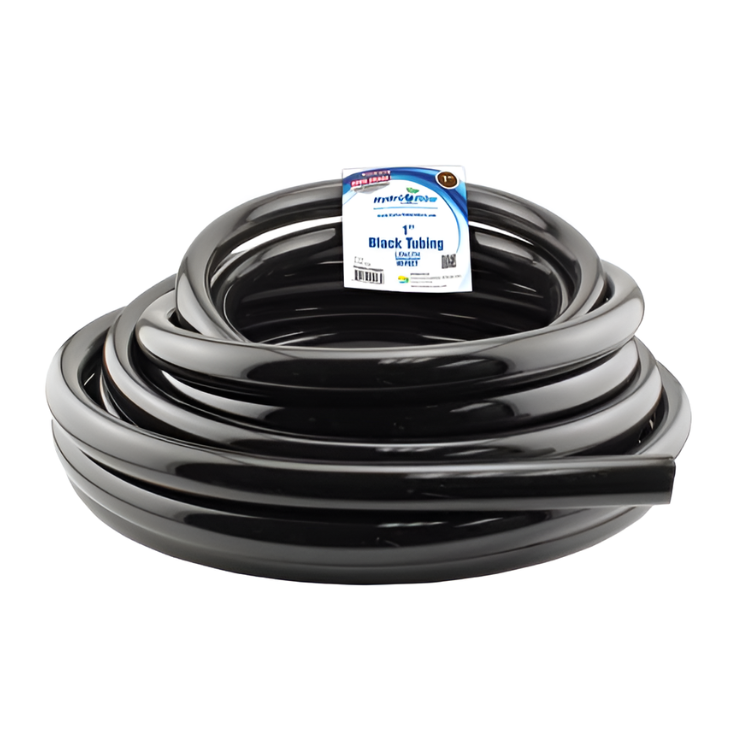

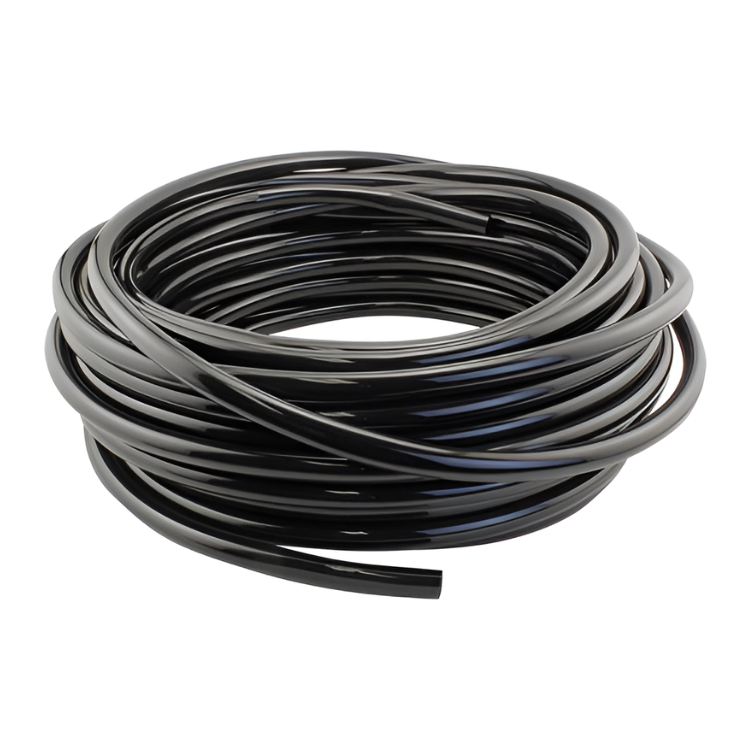

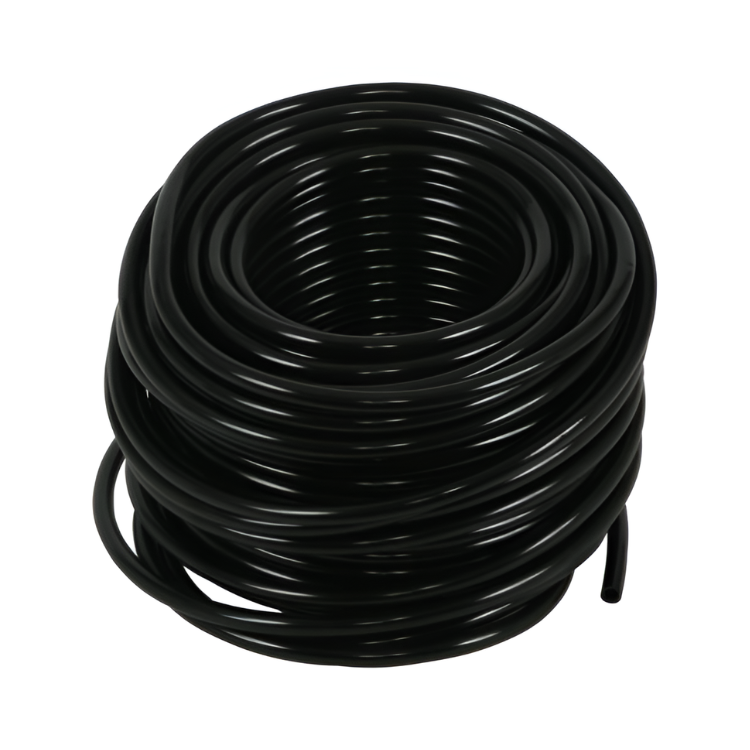

Hydro Flow Vinyl Black Tubing is a 50-foot roll of premium-grade, USA-made vinyl tubing sized at 1 inch inner diameter and 1.25 inch outer diameter. It is designed for growers who need a reliable, flexible supply line that can handle the flow volumes required by main reservoir feeds, drain-to-waste manifolds, and recirculating hydroponic circuits.

Hydro Flow Vinyl Black Tubing Specifications

Physical dimensions and material data for the 1 in ID — 1.25 in OD, 50 ft roll.

Why Choose Hydro Flow Vinyl Black Tubing

This tubing is specified for growers who need a large-bore, flexible supply line that is ready to cut and connect without special tools. Several practical characteristics make it a common choice for irrigation and recirculating systems.

• 1-inch bore for high-volume flow. The 1 in ID supports the flow rates needed for main reservoir fill lines, large recirculating loops, and commercial-scale drain manifolds — applications where smaller tubing would restrict flow or require multiple parallel runs.
• Premium vinyl construction. The flexible vinyl material bends around cabinet corners and equipment frames without kinking at typical grow-room temperatures, making routing easier than rigid PVC in enclosed spaces.
• Black exterior for light management. The opaque black tubing wall blocks light transmission, which helps prevent algae growth inside nutrient lines and protects light-sensitive solutions during recirculation.
• Made in the USA. Manufactured domestically, as stated by the supplier, meaning consistent material quality and dimensional accuracy across the roll.
• 50-foot roll length. A single roll covers most single-room irrigation builds without splicing. Unused tubing can be stored on the coil for future expansion or repairs.

Best Uses for Hydro Flow Vinyl Black Tubing

The 1 in ID dimension and 50 ft roll length make this tubing most practical for larger-scale plumbing runs. It fits naturally into the following applications within a hydroponic or irrigation setup.

• Main reservoir supply lines. Running the primary fill line from a storage or mixing reservoir to a grow table or manifold is the most direct use. The 1-inch bore keeps pressure drop low over longer horizontal runs.
• Drain-to-waste collection lines. Connecting multiple grow sites to a central waste reservoir benefits from large-bore tubing that drains freely without backing up during peak runoff cycles.
• Recirculating hydroponic systems. NFT channels, flood tables, and deep-water culture tanks often use 1-inch tubing on the return leg where nutrient solution flows back to the main reservoir under gravity or low pump pressure.
• Irrigation manifold feeds. Connecting a pump outlet to a distribution manifold that splits into smaller emitter lines. The 1-inch main feed reduces velocity-induced noise and wear at the pump outlet.
• Water management equipment connections. Connecting a reverse osmosis system output to holding tanks or linking a in-line filter into the supply run where a large-bore connection is needed.
• Greenhouse and outdoor drip irrigation trunk lines. Where a single large-bore trunk supplies multiple drip emitter zones across a greenhouse bench or raised bed array.

Compatibility

This tubing is sized for standard 1-inch barbed fittings, 1-inch compression fittings, and 1-inch threaded adapters commonly found in hydroponic and irrigation supply lines. It will seat securely on any barbed fitting with a 1 in barb shank. Use stainless-steel hose clamps to secure connections under pressure.

The 1.25 in OD is important to confirm when routing through grommets, bulkhead fittings, or panel pass-throughs — verify the hole or grommet ID is at least 1.25 in before cutting. Standard schedule-40 1-inch PVC fittings have a slip socket ID of approximately 1.315 in, so this vinyl tubing does not slip-fit into those sockets; use barbed or compression-style fittings rated for flexible tubing instead.

If your system uses aeration components, the Active Aqua multi-outlet air pump pairs well with reservoir setups that use 1-inch nutrient supply lines, since reservoir aeration and large-bore feeding are commonly combined in deep-water culture and recirculating systems.

Usage Guidelines

Vinyl tubing at this diameter is flexible but benefits from correct handling and installation to avoid flow restrictions and leaks.

• Cutting. Use a sharp utility knife or tubing cutter rated for vinyl. A clean, square cut seats flush on a barbed fitting and forms a better seal than a diagonal or compressed cut.
• Fitting installation. Warm the cut end briefly in warm water (not boiling) to soften the vinyl if it resists seating on a barb. Push firmly until the tubing clears all barb ridges, then slide a hose clamp over the connection and tighten to 15–20 in-lb for watertight grip.
• Routing. Avoid tight bends smaller than approximately 3 in radius to prevent kinking. Where a 90-degree turn is needed in a tight space, use an elbow fitting rather than bending the tubing.
• Storage. Store unused tubing on its original coil or loosely coiled in a cool, dark location. Prolonged UV exposure or high heat can degrade vinyl flexibility over time.
• Pressure rating. Vinyl tubing at this wall thickness (0.125 in) is suitable for low-to-moderate pressure irrigation and gravity-fed systems. It is not rated for high-pressure mains — confirm operating pressure with the fitting manufacturer if your system runs above 30 PSI.
