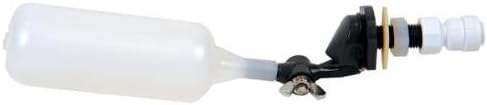

Hydro-Logic Float Valve QC 1/4 in for Stealth RO

The Hydro-Logic Float Valve QC 1/4 in is a compact automatic shut-off valve designed to maintain a consistent water level in hydroponic reservoirs and storage tanks. It connects directly to any 1/4 in RO or filter line via a quick connect fitting, shuts off flow when the target level is reached, and resumes filling when the level drops — all without any manual intervention. Compatible with all Hydro-Logic Stealth-RO and Small Boy RO systems, plus most other reverse osmosis and filtration systems that use standard 1/4 in tubing.

Hydro-Logic Float Valve Specifications

Key technical specifications drawn from manufacturer product data and the canonical product listing.

Why Choose the Hydro-Logic Float Valve

Most growers using an RO system top off their reservoir by hand, which means frequent interruptions and the risk of overfilling if you get distracted. This float valve removes that step entirely. Here is what makes it a practical addition to a Stealth-RO or Small Boy setup:

• Hands-free reservoir top-off. Once installed, the valve opens when the water level drops and closes when it reaches the set point. You fill the reservoir without being in the room.
• Adjustable fill level. The float arm can be adjusted to set the shut-off height to match your reservoir depth, so you control exactly how full the tank gets.
• Flexible mounting. The valve installs in either a vertical or horizontal orientation, which matters when space inside a cabinet or tent is tight.
• Corrosion-resistant construction. Stainless steel and PVC components hold up in the continuously wet, nutrient-rich environment of a working hydro reservoir without degrading quickly.
• Tool-free 1/4 in quick connect. The push-fit inlet connects directly to any standard 1/4 in RO line with no wrenches, clamps, or thread tape required.

Best Uses for the Hydro-Logic Float Valve

This float valve suits any grow setup where a reverse osmosis system feeds a reservoir that needs to be kept at a steady level without constant manual attention.

• Stealth-RO and Small Boy RO systems. This is the primary intended application. The valve is designed to pair directly with Hydro-Logic Stealth-RO 100, 150, 300, and Small Boy units. If you already own one of these systems, this valve slots in without adapters.
• Any RO or filter system with 1/4 in output tubing. The quick connect fitting is a standard 1/4 in push-fit, so it works with most residential and commercial RO units beyond the Hydro-Logic line.
• Hydroponic reservoir auto-top-off (ATO) setups. In DWC, recirculating deep water culture, or NFT systems where the reservoir level is critical, this valve keeps the sump or main tank at a consistent level between feeding cycles.
• Nutrient mixing stations. Growers who pre-mix nutrients in a dedicated tank can use this valve to automatically refill the tank with filtered RO water to a precise level before each mix.
• Small-scale water storage tanks. Any holding tank fed by a 1/4 in line benefits from this valve — it is not limited to hydroponic use and works in any gravity-fed or pressure-fed plumbing scenario with compatible tubing.

If you are running a Hydro-Logic Micro 75 GPD reverse osmosis system, this float valve is a direct-fit accessory that simplifies reservoir management for that unit as well.

Compatibility

The Hydro-Logic Float Valve QC 1/4 in is rated for use with the following Hydro-Logic systems and any third-party RO or filtration unit that supplies 1/4 in OD tubing:

• All Hydro-Logic Stealth-RO models (100, 150, 300, and variants)
• Hydro-Logic Small Boy filter systems
• Most residential reverse osmosis systems with standard 1/4 in output tubing
• Most inline carbon and sediment filter systems with 1/4 in quick connect ports

The 1/4 in quick connect inlet is a standard push-fit format. No special adapters are required if your existing line already terminates in standard 1/4 in OD John Guest or equivalent tubing. The valve is not designed for 3/8 in or 1/2 in lines without an adapter (not included).

For growers who need to pre-filter incoming water before it reaches the reservoir, a Dilution Solutions inline filter with 200-mesh screen can be installed on the supply line upstream of this valve to protect the float mechanism from sediment.

Usage Guidelines

Installing and operating the float valve is straightforward, but a few setup details affect how reliably it holds the fill level over time.

• Mounting position. The valve can be mounted on the inside wall of a reservoir or on an external bracket. If mounting to the reservoir wall, position the valve so the float arm can swing freely in both directions without hitting the wall or any internal plumbing.
• Adjusting the fill level. Gently bend or reposition the float arm to raise or lower the shut-off point. A lower float position stops filling earlier; a higher position allows the tank to fill closer to the rim. Make small adjustments and test before running unattended.
• Supply line pressure. This valve is designed for low-pressure RO and filtered water lines typical of residential and grow-room RO systems. Do not connect to high-pressure mains supply without an inline pressure reducer.
• Inspection schedule. Check the valve mechanism weekly during the first few weeks of use to confirm it shuts off cleanly and does not drip. Mineral scale from hard water can affect the seal over time — flush or descale if you notice a drip at the full level.
• Reservoir compatibility. The valve fits most standard reservoir lids and totes. Measure the wall thickness and available clearance before drilling a mounting hole if your reservoir does not have a pre-cut port.
