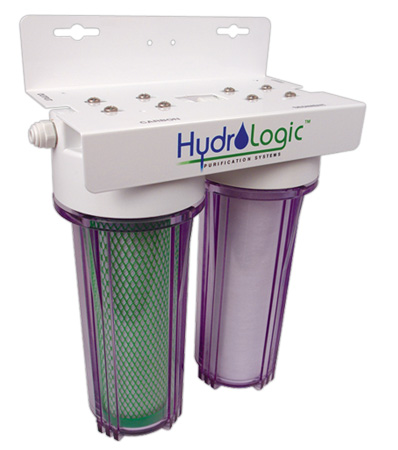

Hydro-logic Small Boy

The Hydro-logic Small Boy is a compact 2-stage water filtration unit designed for growers who need clean, contaminant-reduced water from a standard garden hose connection. It removes up to 99% of chlorine and filters sediment, rust, silt, and volatile organic compounds down to 5 microns, producing up to 60 gallons per hour with a total filter capacity of 3,000 gallons. The complete kit includes a wall-mountable metal bracket, feed and outlet lines, a 1/4 in shut-off valve, and a filter wrench — everything needed for a straightforward installation.

Hydro-logic Small Boy Specifications

Physical and performance specifications sourced from the manufacturer product listing. The weight listed in attributes (10 lb) reflects shipping weight; unit operating weight is 7.6 lb.

Specification	Value
Filter Stages	2-stage, 10 in filter unit
Chlorine Removal	Up to 99%
Sediment / Rust / Silt Removal	Up to 90%
Filtration Threshold	5 microns (VOCs and particulates)
Flow Rate	1 GPM (60 gallons per hour)
Filter Capacity	3,000 gallons
Unit Dimensions (L × W × H)	12 in × 14 in × 6 in
Unit Weight	7.6 lb
Inlet Connection	Garden hose connector (included)
Mounting	Wall-mountable (metal bracket included)
Included Accessories	Wall bracket, garden hose connector, 4 ft feed line, 6 ft outlet line, 1/4 in shut-off, filter wrench, instructions

Why Choose the Hydro-logic Small Boy

For growers supplying hydroponic systems or irrigation lines directly from municipal tap water, the Small Boy addresses two of the most common water-quality problems: chlorine and suspended particulates. Here is what the unit offers based on manufacturer specifications:

• High chlorine reduction: The activated carbon stage removes up to 99% of chlorine from incoming tap water. This matters for any grow media or reservoir that relies on beneficial microbial activity, since chlorine residuals at typical municipal concentrations can disrupt microbial populations over time.
• Sediment and rust filtration to 5 microns: The sediment pre-filter catches up to 90% of suspended particles — rust, silt, and debris — before they reach drip emitters, irrigation nozzles, or the carbon stage. The 5-micron threshold covers volatile organic compounds and fine particulates that a coarser pre-filter would pass.
• 60-gallon-per-hour output at 1 GPM: The unit runs on standard water pressure through a garden hose connection. At 1 GPM, it can fill a 60-gallon reservoir in roughly one hour without a pump or booster.
• 3,000-gallon filter capacity: Each filter set covers 3,000 gallons of use. For a grower doing several reservoir changes per month, this typically translates to several months of service per filter replacement cycle, depending on incoming water quality.
• Complete ready-to-install kit: The unit ships with a wall-mountable metal bracket, a garden hose connector, a 4 ft feed line, a 6 ft outlet line, a 1/4 in shut-off valve, a filter wrench, and instructions. No additional hardware is needed for a basic wall-mount installation.
• Compatible with a range of replacement filters: The Small Boy accepts multiple Hydro-Logic filter types — including poly spun sediment filters, pleated/cleanable sediment filters, coconut carbon filters, and KDF85/catalytic carbon upgrade filters — giving growers flexibility to tune filtration for their water source.

Best Uses for the Hydro-logic Small Boy

The Small Boy is sized and rated for growers who need consistently filtered water without the complexity or cost of a full reverse osmosis setup. The following use cases reflect its flow rate, filtration capabilities, and connection type:

• Pre-treating municipal tap water for hydroponic reservoirs: Tap water in most municipalities contains chlorine or chloramine residuals. Running tap water through the Small Boy before filling a hydroponic reservoir reduces chlorine load and fine particulates, giving nutrient solutions a cleaner starting point. At 60 gallons per hour, it is practical for reservoir volumes up to roughly 100–120 gallons per fill cycle.
• Protecting drip emitters and irrigation lines from sediment: Rust, silt, and debris in unfiltered tap water accumulate in drip emitters and clog small-diameter irrigation lines over time. Inline pre-filtration to 5 microns at the water source reduces maintenance frequency and extends the service life of irrigation hardware.
• Pre-filtering water before an RO system: The Small Boy is designed to work as a pre-filter ahead of a reverse osmosis unit. Removing sediment and chlorine upstream reduces the load on RO membranes, which are sensitive to chlorine oxidation and particulate fouling. If you are also running a compact reverse osmosis system, the Small Boy can extend membrane service life significantly.
• Outdoor and greenhouse irrigation from hose bibs: The garden hose inlet connector means the Small Boy can be placed at any standard outdoor hose bib. This makes it useful for greenhouse growers who run irrigation from wall-mounted hose connections rather than a plumbed feed line.
• Small-scale nursery or propagation water supply: For propagation areas or small nursery benches where water quality consistency matters — particularly for rooting mixes sensitive to chlorine — the Small Boy provides an accessible point-of-use filtration option without requiring a permanent plumbed installation.

Hydro-logic Small Boy vs Similar Products

The Small Boy occupies a specific position in the Hydro-Logic filtration lineup: it offers more filtration than a single inline sediment filter but stops short of the full dissolved-solids reduction that a reverse osmosis unit provides.

A single-stage inline sediment filter — such as the Dilution Solutions 1-1/2 in filter with 200-mesh screen — addresses coarse particulates only. It does not include a carbon stage and will not reduce chlorine or VOCs. The Small Boy adds the activated carbon stage, which is the meaningful difference for growers whose water quality concern is chemical rather than just physical contamination.

At the other end of the range, a full reverse osmosis system removes dissolved solids (measured as total dissolved solids or TDS) in addition to chlorine and sediment. The Hydro-Logic Micro 75 GPD RO system, for example, strips TDS to a baseline that lets growers build nutrient profiles from scratch. The trade-off is lower flow rate (a 75 GPD RO unit produces roughly 3.1 GPH of purified water versus the Small Boy’s 60 GPH) and a wastewater stream. Growers whose source water has acceptable TDS but problematic chlorine or sediment levels will often find the Small Boy sufficient without the cost or complexity of an RO system.

In short: the Small Boy is the right tool when incoming water needs chlorine and particulate reduction but the TDS level is already acceptable for plant nutrition. It is not a substitute for RO filtration when source water carries high mineral loads.

Compatibility

The Small Boy connects to a standard garden hose fitting. The included garden hose connector and 4 ft feed line handle the inlet side; the 6 ft outlet line carries filtered water to a reservoir, holding tank, or downstream system. The 1/4 in shut-off valve allows flow to be stopped at the unit without closing the hose bib.

The filter housings accept Hydro-Logic 10-inch replacement filters. Compatible replacements confirmed in the manufacturer listing include:

• Pre-filter options: Hydro-Logic Small Boy Sediment Filter (Poly Spun); Hydro-Logic Stealth RO Sediment Filter (Pleated/Cleanable)
• Carbon filter options: Hydro-Logic Stealth RO/Small Boy Green Coconut Carbon Filter; Hydro-Logic Stealth/Small Boy KDF85/Catalytic Carbon Upgrade Filter
• Accessories: Hydro-Logic Float Valve QC 1/4 in (for Stealth RO); Hydro-Logic Wrench Stealth RO Double-Ended

The unit can serve as a standalone point-of-use filter or as a pre-filter stage upstream of an RO membrane system. If you are monitoring water quality downstream, pairing the Small Boy with a conductivity meter such as the Apera Grostar replacement EC electrode or calibrating with the Apera Grostar EC calibration kit helps confirm the filtered water baseline before adding nutrients.

Usage Guidelines

The Small Boy is designed for continuous inline use at a hose bib or feed-water supply point. The following guidelines apply to normal operation:

• Flow rate: The unit is rated at 1 GPM at typical residential water pressure. Do not attempt to force higher flow by increasing inlet pressure beyond the housing rating. Higher-than-rated flow reduces contact time in the carbon stage and degrades chlorine removal efficiency.
• Filter replacement interval: The filter set is rated for 3,000 gallons of use. Track cumulative volume or monitor outgoing water quality (chlorine test strips can confirm when the carbon stage is exhausted). In areas with high sediment loads, the pre-filter may need more frequent replacement than the carbon filter.
• Water temperature: Use with cold or ambient-temperature tap water only. The filter housings and media are not rated for hot water.
• Pressure considerations: The included 1/4 in shut-off allows flow to be stopped at the unit. Always relieve pressure before removing filter housings for inspection or replacement. Use the included filter wrench — not pliers or channel locks — to avoid damaging housing threads.
• Monitoring outgoing water quality: If source water quality is variable (seasonal sediment events, changes in municipal treatment), check the pre-filter visually at filter changes. A discolored or compressed sediment filter indicates higher-than-average particulate load and may require shorter replacement intervals.

How to Install the Hydro-logic Small Boy

All hardware needed for a standard wall-mount installation is included. The steps below reflect the included kit components (wall bracket, garden hose connector, 4 ft feed line, 6 ft outlet line, 1/4 in shut-off, filter wrench, instructions). Consult the included instruction sheet for torque specifications and housing orientation details.

1. Choose a mounting location. Select a wall surface near the water supply hose bib. The unit measures 12 in × 14 in × 6 in and must be reachable for periodic filter housing removal. Ensure there is clearance below the housings to unscrew them during filter changes.
2. Mount the wall bracket. Use the included metal bracket to mark and drill mounting holes at the chosen location. Secure the bracket to a stud or use appropriate wall anchors for your wall type. Hang the filter unit on the bracket and verify it is level and stable.
3. Connect the inlet. Attach the garden hose connector to the hose bib. Connect the 4 ft feed line between the hose connector and the filter unit inlet port. Hand-tighten fittings; use a wrench only if connections weep after initial pressurization.
4. Connect the outlet. Attach the 6 ft outlet line to the filter unit outlet port. Route the outlet line to your reservoir, holding tank, or downstream system inlet. Install the 1/4 in shut-off valve on the outlet line if not pre-installed.
5. Flush the filters before first use. Open the inlet supply and the shut-off valve. Allow water to run to drain for 3–5 minutes to flush carbon fines from the new filter media. The initial flush water may appear gray or slightly turbid; this is normal and clears quickly.
6. Check for leaks. Inspect all threaded connections and line fittings under pressure. Tighten any fittings that show drips. Do not over-tighten plastic housings — hand-tight plus a quarter-turn with the filter wrench is sufficient.
7. Confirm flow to outlet. With the shut-off valve open and the outlet line directed to the reservoir or collection point, verify consistent flow at the rated 1 GPM. The unit is now ready for normal operation.
