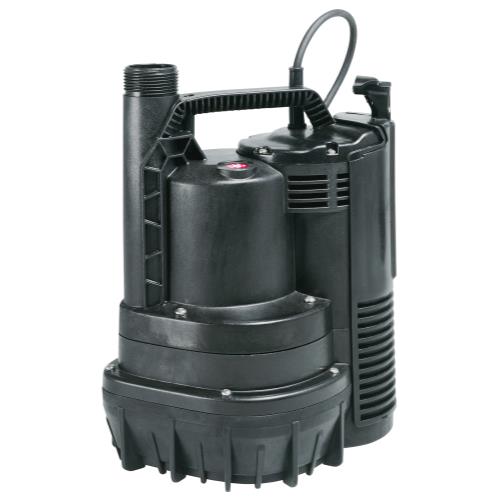

Leader Vertygo 300 1/3 HP – 2040 GPH

The Leader Vertygo 300 is an automatic submersible pump designed to fit and operate in narrow pits as small as 8 in x 8 in. Rated at 1/3 HP and 2040 GPH, it handles clear water containing particles up to 1/4 in in diameter. An integrated float switch automates pump operation, and a manual override lets operators run the pump on demand regardless of water level. The housing is built from anticorrosive, rustproof materials suited to continuous wet-pit use.

Leader Vertygo 300 Specifications

All specifications are drawn from the canonical product record (SKU LDRUS411001H) as supplied by the manufacturer.

Why Choose the Leader Vertygo 300

The Vertygo 300 addresses a specific installation problem: sump pits and collection basins that are too narrow for standard submersible pumps. Most residential sump pumps require pits of 12 in or more in diameter; the Vertygo 300 fits pits as small as 8 in x 8 in, making it usable in tight utility spaces, grow-room floor drains, and shallow collection chambers where a wider pump simply cannot fit.

• Designed for narrow pits: The compact body fits pits down to 8 in x 8 in — a constraint that rules out most competing submersible pumps in this flow-rate class.
• Integrated float switch with manual override: The float switch automates start and stop based on water level. The manual override lets you run the pump continuously regardless of float position, useful during system flush or when testing drainage capacity.
• Low suction to 1/16 in: The pump can draw water down to within 1/16 in of the pit floor, leaving minimal standing water after each cycle — important in grow rooms where pooled water creates humidity and pathogen risk.
• Particle-tolerant intake: Capable of handling water carrying particles up to 1/4 in in diameter without clogging the impeller — practical in settings where irrigation runoff or growing media fines enter the sump.
• Anticorrosive, rustproof housing: The materials are selected for long-term exposure to wet conditions, including nutrient-laden water common in hydroponic drainage applications.

Best Uses for the Leader Vertygo 300

The Vertygo 300 is well-suited to water removal and circulation tasks in controlled growing environments and general irrigation infrastructure. Its narrow-pit design and automatic float operation make it a practical choice in the following scenarios:

• Grow-room sump drainage: Removes runoff and drainage water from collection basins beneath hydroponic trays and flood-and-drain tables. The low suction capability keeps the floor as dry as possible between drain cycles.
• Narrow utility pits: Fits in tight sump pits in grow facilities, greenhouses, and utility rooms where standard pumps cannot be installed due to pit width constraints.
• Irrigation reservoir circulation: At 2040 GPH, the pump can move water between reservoirs or recirculate nutrient solution in larger drip and flood systems. Pair it with a 1-1/2 in inline filter with 200-mesh screen on the intake line to protect the impeller from debris.
• Flood and drain discharge: Rapidly evacuates flood trays after timed irrigation cycles, reducing the drain-down time and supporting higher irrigation frequencies.
• Temporary water removal: The manual override allows the pump to run on demand for one-time water removal tasks during system cleaning, reservoir changes, or facility maintenance.
• Supplemental aeration loops: In larger systems, the Vertygo 300 can drive a recirculation loop alongside dedicated aeration equipment such as an air pump to maintain dissolved oxygen levels in the reservoir.

Compatibility

The Vertygo 300 is a clear-water submersible pump. The following compatibility notes apply based on the manufacturer’s product description:

• Water type: Designed for clear water. It tolerates suspended particles up to 1/4 in in diameter but is not rated for slurries, wastewater with large solids, or abrasive materials. Nutrient solution and pH-adjusted water fall within normal operating scope for this pump class.
• Pit or basin dimensions: Minimum interior dimensions of 8 in x 8 in are required for the pump body to fit and the float switch to operate freely. Pits smaller than this cannot accommodate the unit.
• Float switch clearance: The integrated float switch needs vertical clearance to swing between its low and high positions. Verify available depth in the pit before installation.
• Discharge plumbing: Check the outlet diameter against your discharge line before purchase. Standard fittings for this pump class are typically 1-1/4 in or 1-1/2 in NPT — confirm with manufacturer documentation for exact thread size.
• Water filtration upstream: If your drainage system carries growing media fines or irrigation sediment, an inline filter on the pump intake will extend impeller life. A reverse osmosis pre-treatment system upstream of your reservoir reduces mineral buildup in long-term recirculating setups.

For voltage, amperage, and thermal protection specifications, consult the Leader Pumps product documentation at dabpumps.us.

Usage Guidelines

The Vertygo 300 is designed to operate automatically via its integrated float switch in most installations. The following guidelines cover normal automatic operation and the manual override mode:

• Automatic mode (float switch active): Submerge the pump in the pit. As water rises to the float’s activation point, the pump starts and runs until water drops to the float’s shutoff level. No manual intervention is needed during normal drainage cycles.
• Manual override mode: Engage the manual override to run the pump continuously regardless of float position. Use this mode during initial system flush, reservoir emptying, or maintenance. Avoid running the pump dry — confirm water is present in the pit before engaging manual override.
• Particle handling: The pump tolerates particles up to 1/4 in but works best with reasonably clean water. If debris accumulates in the pit, remove large solids before each growing cycle to reduce wear on the impeller.
• Low-level operation: The pump can draw water down to 1/16 in above the pit floor. Once the float switch cuts off, a thin film of water may remain — this is normal and within the operating design of the unit.
• Periodic inspection: Check the float switch arm for obstruction or debris buildup at regular intervals. A stuck float can cause the pump to run continuously or fail to start when needed.
