TrolMaster 3-in-1 Water Content Sensor (WCS-2)

TrolMaster (WCS-2) Water Content Sensor

The WCS-2 is part of the next generation of substrate monitoring for temperature, EC, and water content.

TrolMaster’s WCS-2 Water Content Sensor is specifically designed to measure the water content data (percentage), temperature, and the EC of the grow media in the Aqua-X, Aqua-x Pro, and Hydro-X Pro Control System.

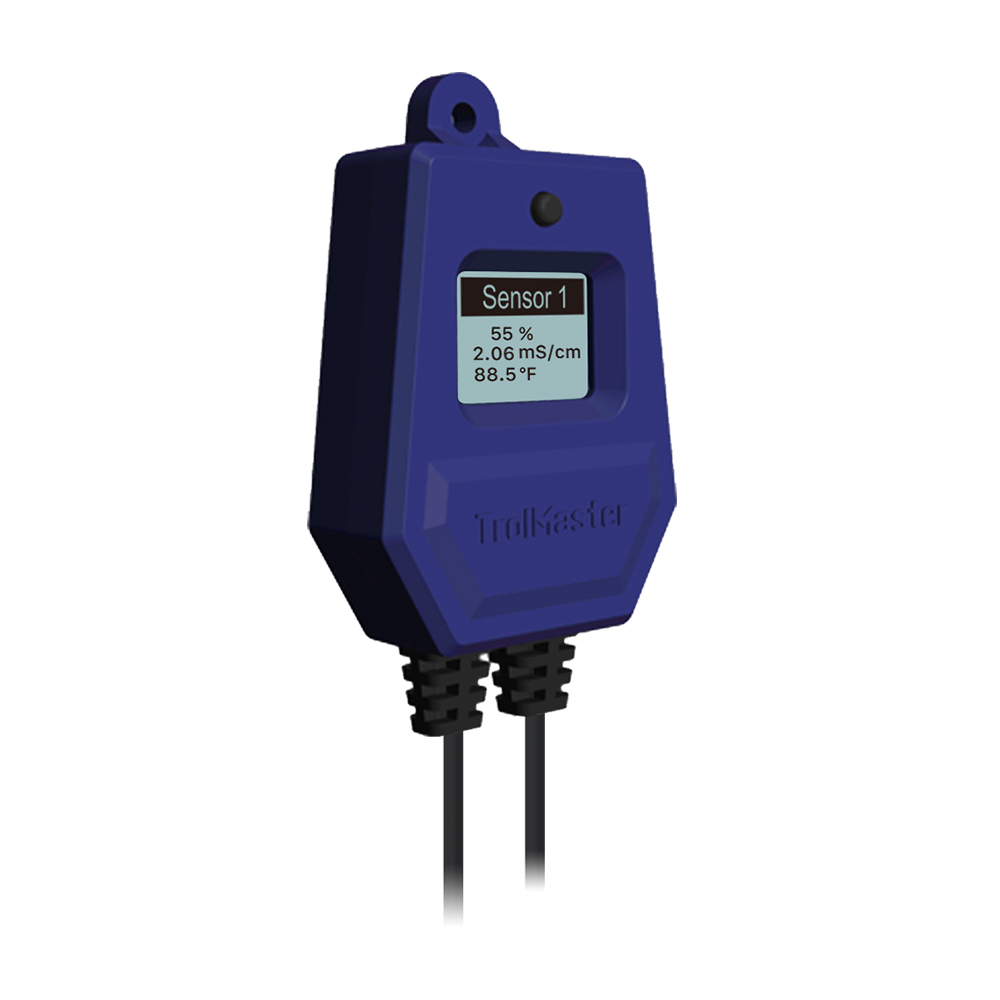

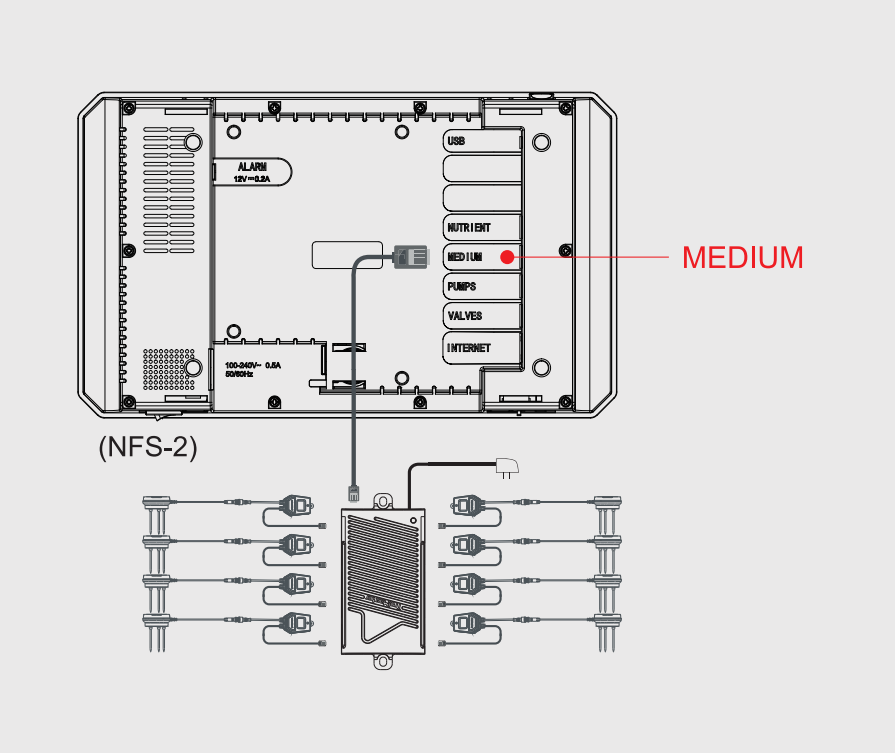

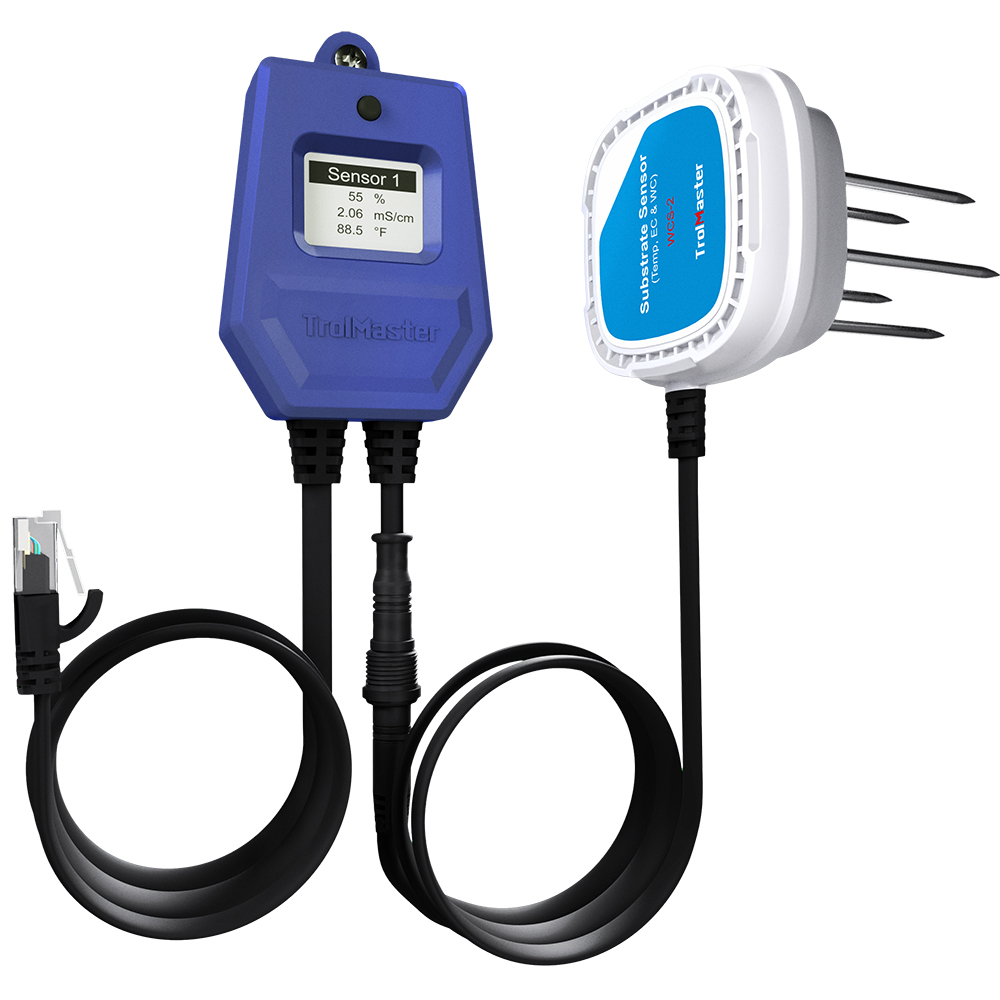

Each WCS-2 sensor includes a five-prong sensor assembly connected to a LCD communication module (Display Screen & Button). To use the WCS-2, the five prong sensor is inserted into the grow media such as soil or rock wool to be measured. Normally placed horizontally about ⅓ of the way up from the bottom of the grow media container or rockwool block.  You can connect multiple Water Content Sensors (up to 50 WCS-2 on the NFS-2 and HCS-2 controllers, 8 on the NFS-1 controller). The NFS-2 screen will display the value of the 3 parameters (grow medium temperature, moisture level and EC) of each individual sensor.

When using TrolMaster’s free TM+ app, you can see the water content %, temperature, and EC of the grow media on your Smartphone. You can view historical data graphs on the app and also receive notifications if the WCS-2 readings exceeds your highest or lowest alarm settings.

* The WCS-2 can only be used with the Aqua-X / Aqua-X Pro and the Hydro-X Pro

Features & Benefits:

• LCD Display, easy operation
• Addressing button
• Real-time measuring of water Content, temperature & EC of growing medium
• Alarm and mobile notification when setpoint exceeded

Package Content:

• 1 x Water Content Sensor
• 1 x RJ12 T-Splitter
• 1 x 16ft RJ12 Cable

Specification – Absolute Maximum Ratings:

• Supply Voltage : 10.8-13.2 volts
• Input Current : 100-200 mA
• Operating Current : 140 typical mA (supply voltage=12V)
• Operating Temperature : 32°-122°F
• Storage Temperature : 0°-140°F
• Humidity : ≤90%
• Packaging Dimensions: 275mm(L) x 164mm(W) x 65mm(H)

Measurement Details – Water Content (WC):

• Range : 0 – 10%
• Resolution : 1 %
• Accuracy : -2 – +2 %

Temperature:

• Range : 0°-122°F
• Resolution : 0.1°F
• Accuracy : -1° – +1°F

Electrical Conductivity (EC):

• Range : 0 – 5 mS/cm
• Resolution : 0.01 mS/cm
• Accuracy : -0.2 – +0.2 mS/cm
